A luam tawm cov boardSchematic yog ib qho yooj yim ob - qhov chaw canduitional uas qhia cov kev sib raug zoo thiab cov ntsiab cai ntawm ntau yam hauv Circuit Court. Hauv cov schematic, txhua tivthaiv yog sawv cev los ntawm ib lub cim, uas tau txuas nrog los ntawm kab los ua cov txheej txheem ua tiav Circuit Court network. Raws li qhia hauv daim duab hauv qab no:

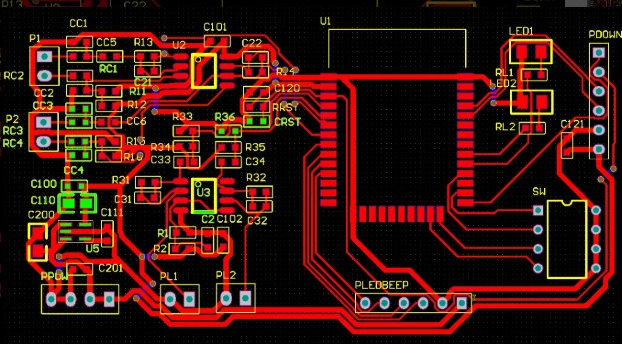

PCB cov ntaub ntawv tsim tawm yog tsim los ntawm cov ntawv txheej txheem schemm, uas yog cim tshwj xeeb ntawm txhua qhov kev sib xyaw ua ke los ntawm cov xov hlau thiab vias. Cov qauv tsim cov ntaub ntawv muab cov ncauj lus kom ntxaws ntxaws ntxiv rau cov ntaub ntawv dav, yog li cov khoom siv hluav taws xob, yog li cov khoom siv PCB tuaj yeem tsim cov rooj sib txuas ua raws li koj cov ntaub ntawv.
