Core Basic Parameters

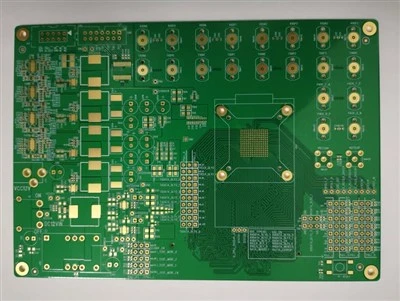

Layers thiab Structure: Tsau 10 txheej qauv, txhawb 5 txheej ntawm rov qab drilling + disk qhov txheej txheem tsim, tuaj yeem sib xyaw ua ke raws li kev xav tau, tsim nyog rau kev sib koom ua ke ntawm kev sib txuas.
Board configuration: Kev kub ceev thiab qis poob boards xws li TU933 tuaj yeem xaiv. Cov ntawv sau npe no muaj tus nqi DK ntawm 3.16 thiab tus nqi df ntawm 0.0025, thiab muaj qhov zoo heev - zaus cov teeb liab kis tau tus mob. Nws kuj txhawb kev sib xyaw ua ke ntawm lwm cov ntaub ntawv xws li siab TG FR-4
Basic specifications: Cov qauv phaj thickness yog 1.6mm thiab 2.0mm, txhawb customization nyob rau hauv ntau yam ntawm 0.8-3.0mm, nrog ib tug phaj thickness kam rau ua nyob rau hauv ± 0.07mm; Qhov tsawg kawg nkaus txoj kab dav thiab qhov sib nrug tuaj yeem ua tiav 1.8mil / 1.8mil, thiab cov qauv tsim tshwj xeeb yog 2mil / 2mil.
Cov yam ntxwv tseem ceeb ntawm cov txheej txheem
Tus nqi ntawm qhov rov qab drilling + disc qhov txheej txheem: Rov qab drilling tuaj yeem tshem tawm qhov ntau dhau ntawm qhov hla ntawm - qhov, txo cov teeb liab cuam tshuam thiab txo qhov siab - ceev teeb liab kis tau tus mob; Cov txheej txheem disk qhov txhim kho kev sib txuas ceev, txo cov nti mounting qhov chaw, thiab tsim nyog rau siab - ntim ntim khoom xws li BGA
Drilling raug: Ua ke nrog laser drilling thiab mechanical drilling tshuab, qhov tsawg kawg nkaus aperture ntawm 0.1mm tuaj yeem ua tiav, nrog qhov tseeb ntawm qhov chaw tswj nyob rau hauv ± 0.015mm thiab tag nrho qhov chaw qhov tseeb ntawm ± 0.02mm
Kev Tswjhwm Zoo: Tag nrho cov txheej txheem dhau los ntawm ntau qhov kev tshuaj xyuas xws li kev ntsuas hluav taws xob / rwb thaiv tsev, 1000 thermal voj voog ntawm -40℃~ 125 degree, X-ray kuaj, thiab lwm yam., ua tau raws li kev ntseeg siab ntawm kev lag luam thiab kev lag luam tsheb.
Kev kho qhov saum npoo: txhawb kev immersion kub (3-10 μ m thickness) OSP, Ntau cov txheej txheem xws li tin txau tuaj yeem xaiv, thiab cov txheej txheem kub tso tawm tuaj yeem txhim kho lub peev xwm antioxidant thiab qhov tawv tawv, ua tau raws li qhov yuav tsum tau siv ntev ntev.
Tej yam kev thov scenarios
Feem ntau yog tsom rau siab -kawg teb nrog cov kev xav tau siab rau cov teeb liab kev ncaj ncees thiab kev koom ua ke, suav nrog:
Kev kub ceev teeb liab module rau kev lag luam tswj cov cuab yeej thiab cov neeg rau zaub mov motherboards
Automotive ADAS pab tsav tsheb, lub zog tshiab tsheb BMS roj teeb tswj kev tswj hwm
Cov xwm txheej me me thiab txhim khu kev qha zoo xws li cov khoom siv hluav taws xob kho mob thiab siab -end drone controllers.
Uniwell Circuits txhawb nqa tag nrho cov kev hloov pauv ntawm cov khoom no thiab muab ib qho - nres PCBA kev pabcuam nrog lub sijhawm xa khoom tuaj yeem tswj tau. Rau kev txiav txim sai, nws tuaj yeem txhawb nqa tus qauv sai hauv 24-48 teev.
