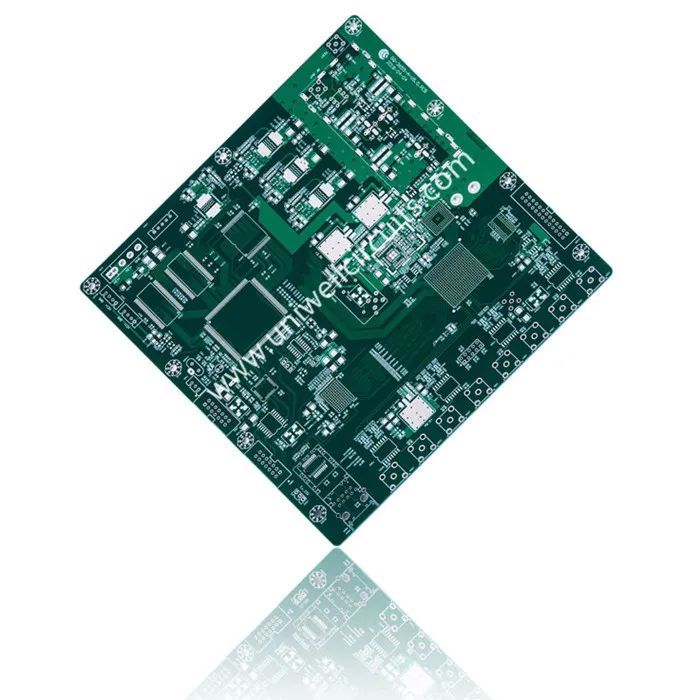

1. Muab khoom piav qhia
Kev Qhia:
Txheej: 6
Board Thickness: 1.6 hli
Kev kho qhov hauv npoo: HASL.
Khoom siv: FR4.
Min kab dav / kab nrug: 4 / 4mil
Min qhov: 0.20mm
Ntxiv nrog rau cov ntawv cog lus, peb kuj tsim cov laug cam, uas yog qhov tseem ceeb ntawm cov HDI niaj hnub. Cov no yog tsim rau txhua qhov qauv uas muaj cov thawv ntim khoom. Txawm koj xav tau cov PCBs uas muaj ntau hom xov tooj nrog 4, 8, 12 los yog 40 tawm txheej, peb npaj tau ua tus tsim muaj kev paub txog. Cia li tiv tauj peb: peb cov kws kho mob tshwj xeeb zoo siab yuav zoo siab qhia koj!
2. Qhia cov ntaub ntawv
Uniwell Circuits co., LTD. yog kev tsim khoom siv ntawm PCB thiab PCBA. Uas muaj lub Hoobkas ntawm ib sab PCB, ob sab PCB, ntau txheej PCB thiab PCB sib dhos thiab lwm yam. Peb muaj peev xwm ua tau tsim rau txhua qhov nruab nrab thiab ntau npaum li cas. Lub tshuab ntawm peb lub koom haum yog ua haujlwm txhua hnub thiab txhua hmo. Nrog Uniwell ua tus muab kev pab, koj yuav muaj lub siab tshaj plaws, ceev tshaj tus me nyuam.
3.Yog qhia meej txog PCB kev tsim
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
Nrog 10+ xyoo 'kev pom hauv PCB thiab PCB cov Neeg Sib Ntsib yuav ua rau koj tau zoo Yuam Kev nrog Uniwell
Tsocai lus tsocai:
● Cov ntaub ntawv Gerber ntawm pawg PCB board
● BOM (Nqe ntawm cov khoom siv) rau kev sib ntsib
● Yog xav tau sij hawm luv luv, thov hais qhia rau peb yog hais tias muaj lwm yam khoom pauv hloov.
● Kev Tshawb Xyuas Cov Lus Qhia & Kev Faj Tseg Yog tias tsim nyog
● Cov ntaub ntawv programming & Programming cuab yeej yog tias tsim nyog
● Schematic yog tias tsim nyog
4. Peb pab pawg
Tshawb nrhiav & Kev tsim kho, Kev txhim kho nruam, Kev cog lus kom zoo
Ua ib lub hom phiaj zoo tshaj plaws nyob hauv ob lub teb chaws sab nraud thiab sab nraud PCB teb
Yog peb ib txwm ua.
