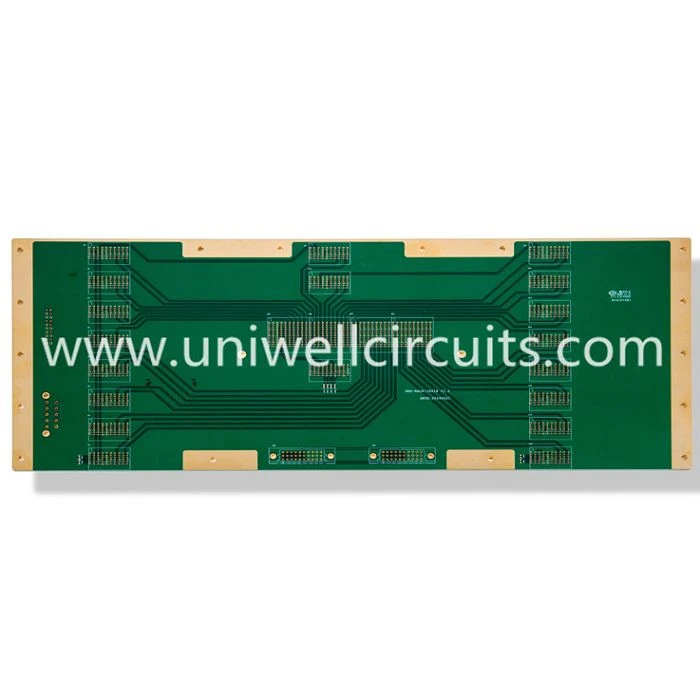

1. Muab khoom piav qhia
Kev piav qhia:
Txheej: 8
Board Thickness: 2.5 hli
Kev kho cov qhov hauv npoo: kub kub.
Khoom siv: FR4.
Min kab dav / kab nrug: 6 / 6mil
Tshwj xeeb yuav tsum muaj: tswj kev tswj hwm
Peb zoo dua:
Uniwell Circuits - Cov Kev Tshawb Pom Tivthaiv Ua, Lub Ntiaj Teb, Kev Tivthaiv Teebmeem, Teebmeem Siab, PCB Hauv Xov Tooj Thiab peb muaj cov kev pab zoo tshaj plaws -Faster thiab tub kom ncav sij hawm, thiab teb tuaj sai 1 teev, Peb muab kev pab cuam 24 x 7 teev thiab kev txhawb nqa engineering!
Nta: Siab thaiv ntom nti, lub cev nyhav, nyias tuab, dabtsi yog khoov zoo!
1: Cov ntaub ntawv zoo tshaj plaws
High TG, FR4, High School (Rogers, Teflon, ARLON, TYCONIC), Halogen-free
2: Kev pab cuam sai sai
2 txheej txheej 24 / H
4-8 txheej 48 / H
3: Cov cuab yeej siv technology
min / T / G: 3/3 mais
Impedance tswj ± 10%
MAX nam piv rau board thickness vs laum me me 15: 1
nta tshuaj: HASL, Kub plating, Immersuin kub, Immersuin tin, Cov nyiaj them yug, Cov ntiv tes kub, OSP

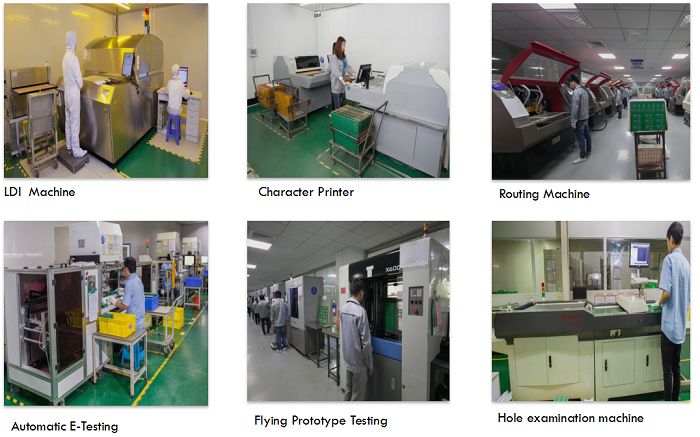

4: Cov khoom siv advanced
2. Qhia cov ntaub ntawv

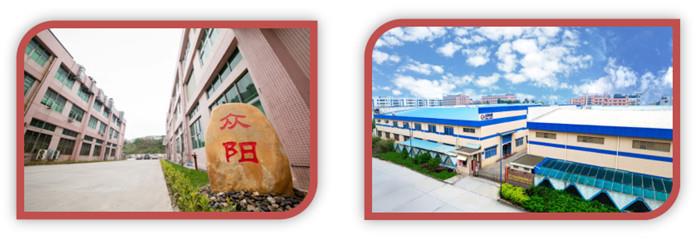

Uniwell circuits co., LTD. tau tsim nyob rau hauv 2007, yog teem kev tshawb nrhiav thiab kev tsim kho, tsim, ntau lawm thiab kev muag khoom raws li ib tus high precision PCB, FPC technology-raws li Circuit Court board qhauj. UNIWELL muaj thaj tsam ntawm 6000 ㎡, cov neeg ua hauj lwm uas muaj ntawm 600 leej.
Nws ua rau thaj tsam siab tshaj plaws ntawm kev sib txuas lus, fais fab, computer network, digital products, industrial control, science thiab kev kawm, kho mob, aerospace thiab tiv thaiv. Nws yog nruab nrog cov khoom tsim thiab cov cuab yeej siv tshuaj, khoom siv los ntsuas, ntsuas thiab ntsuas cov cuab yeej siv, thiab cov khoom siv txhim khu kev sim, xws li kev kuaj xyuas thiab kev sim ntawm lub cev. Kev txhim kho ntau lawm yog qhov kev lag luam hauv kev lag luam, los ntawm kev sib koom ua lag luam ntawm lub tuam txhab kev tshawb fawb thiab kev tsim kho, tau raug tsim tiav txhua yam qhov chaw me me, siab qhov sib npaug, phaj siab siab, HDI thiab lwm cov tshuab ua lag luam.
Lub tuam txhab tau dhau ISO9001, ISO / TS16949, QC080000, ISO14001, UL, thiab lwm yam.
3.Company lub koom haum
Uniwell Circuits'top kev pabcuam tswvcuab cov tswvcuab tuaj nrog ntau tshaj 10 xyoo ntawm kev ua haujlwm hauv PCBs kev lag luam. Dhau li ntawm, thiaj li yuav ncav cuag theem siab ua haujlwm raws li ib lub rooj sib tham ntawm luam tawm tswv yim, Uniwell tau nqis tes ua haujlwm thoob ntiaj teb kev tswj thiab muag khoom ntawm Hong Kong thiab Taiwan.
4.Cov ntaub ntawv ntawm peb lub peev xwm
Peb muaj kev tshawb fawb thiab pab neeg tsim khoom tshwj xeeb uas yog tsim tshwj xeeb hauv kev tsim thiab tsim ntau yam khoom eletronic. Peb khiav ntawm peb sab kev ua haujlwm los pab rau cov neeg siv khoom zoo thiab ua haujlwm zoo.
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
5.FAQ
Q: Peb ua li cas peb cov nqi qis dua?
Peb muaj kev sib raug zoo nrog ntau tus neeg ua lag luam ntawm pawg tsav tsheb thiab tuaj yeem nrhiav tau qhov zoo tshaj plaws ntawm PCBs kom xwm yeem txuag koj cov nqi, raws li koj cov sij hawm tsim kho, ua kom tiav koj cov qauv lossis cov khoom tsim ntau.
Nug: Qhov NRE nias yog dab tsi?
Kev xeem NRE yog ib zaug "tsis rov nyiaj dua" rau kev kuaj hluav taws xob. Tus nqi no yog nyob ntawm koj xwb tab sis thaum them nyiaj, txhua lub Circuit Court boards yuav raug kuaj txhua zaug thiab txhua zaus uas ib feem nab npawb thiab muab kho dua yog tsis tau them ntxiv.
Lus Nug: Thaum twg koj them tus nqi NRE ua tus them rau kuv lub koom txoos uas luam tawm?
Koj tsuas them tus nqi them rau Tooling yog tias koj ncaj qha mus rau Cov Kev Tsim Ntau Lawm (Cov Kev Txiav Txim) tsis tau txiav txim siab Proto (Txuj Spec) ua thawj kauj ruam. Peb tsis tau them nqi Tooling rau Protos (Txuj Xyov) thiab peb tsis them Tus nqi hluav taws xob yog lub proto (Txuj Spec) rov qab rau Cov Kev Ntau Lawm (Txuj Xyov).
Lus Nug: Yog tias koj tsuas muaj kev hloov me me hauv kuv qhov kev tsim, peb puas yuav nqi rau NRE Tool?
Thaum koj hloov qhov kev hloov rau ntawm koj lub rooj tsav xwm luam tawm, peb muab qhov cuabyeej tshiab coj los ua. Qhov no yuav pab tiv thaiv kom tsis txhob qub cov duab los yog cnc qhov kev siv los ntawm kev siv. Txawm tias tus menyuam yaus hloov los yuav tsum tau tib cov txheej txheem tshiab raws li cov ntaub ntawv tshiab, yog li tus nqi them cuab yeej siv tau. Thov hu rau koj tus neeg muag khoom kom paub ntxiv.
Q: Vim li cas peb thiaj tsim tsa cov qauv txheej txheem?
IPC A600 Hoob 2 los ntawm IPC 6012 Hoob 3A
