1. Muab khoom piav qhia
Specification
Txheej: 1
Board Thickness: 1.6mm
Kev kho qhov chaw: LF HASL.
Khoom siv: FR4.
Min kab dav / kab nrug: 20 / 9.84mil
Min qhov: 2.4 hli
Muaj qhov zoo nrog peb lub tshuab PCB:
1) Txhim khu kev zoo
2) Tus nqi sib tw
3) Kev tsim kho technology
2. Qhia cov ntaub ntawv
Uniwell circuits co., Ltd. tsim nyob rau hauv 2007, tshwj xeeb hauv kev tsim, tsim thiab ua cov PCB thiab PCB Los Ua Ke. Lub hom phiaj rau yav tom ntej ntawm Uniwell circuits co., Ltd. yog tsim teebmeem tshaj plaws thiab muaj zog tshaj plaws tsim kev lag luam hauv PCB qauv thiab ntau ntau hom kev lag luam me thiab me me. Rau ntau lub koom haum kev lag luam thiab kev lag luam nrog rau cov lag luam me thiab cov chaw lag luam los muab kev tshaj tawm cov khoom ceev ceev, cov kev pab cuam ntau lawm; Thiab yuav maj mam tsim cov kev pabcuam rau kev sib tw, tsim kom muaj PCB tus kws pab tswv yim rau cov kws pabcuam, tsim cov khoom siv hluavtaws tsim tsim kev qhia dav dav hauv kev ua haujlwm, nrog rau ntau yam kev pabcuam SMT kev ua haujlwm, nrog rau kev pabcuam ib tus kheej.
Hauv PCB manufacturing teb, Uniwell circuits co., Ltd. Nco ntsoov tuav lub peev xwm ntawm ntau hom kev ceev ceev, ua kom tsim tau Tuam Tshoj tus leb tshaj plaws ntawm PCB cov qauv thiab cov khoom siv me me ua haujlwm ua ke, nrog rau kev ua haujlwm zoo tshaj, kev tshawb nrhiav thiab kev tsim, kev tsim peev thiab tsim kev lag luam ntawm PCB core technologies xws li cov hlau lead , kev pab rau Suav cov tuam txhab nrog cov cuab yeej cuab tam cov cuab yeej txuas mus ntxiv rau kev siv technology tshiab thiab kev tsim kho.
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |

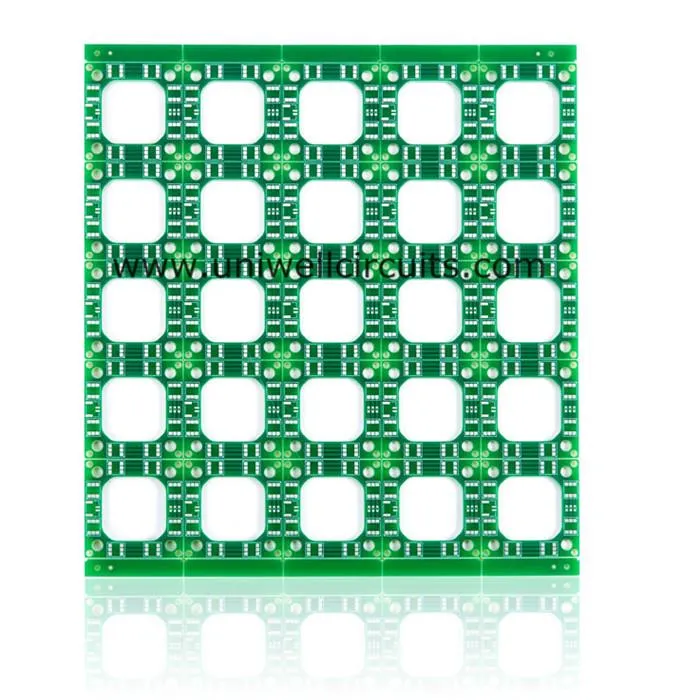

3.Qhia qhia txog kev zoo nkauj tshuab PCB
4. Xaiv lub tswvyim ntawm Uniwell circuits ntawm plaub qhov tseem ceeb
1) Kev siv tshuab ua ntej
Peb muaj cov pabcuam r & d nrog kev ua siab ncaj thiab ua haujlwm zoo, thiab tag nrho cov neeg ua haujlwm muaj 3-16 xyoos ntawm kev paub txog kev tsim kho PCB.
2) Nyob zoo
Cov khoom ntawm cov ntawv, kua tshuaj, kua cwjmem, tooj liab, thiab lwm yam khoom raw li xaiv cov khoom tseem ceeb: raw khoom, Rogers, Arlon, Isola, Omega, Nelco, etc.Potion: Rohm & Haas; Ink: Taiyo; Qhuav movie: Dupont li al.
3) Kev xa tawm sai tshaj
Rau cov khoom siv kho mob ceev ceev: qee yam khoom tauj ntawm tus ceev tshaj 18 teev, tus nqi tus nqi yog siab li 99%, thiab qhov nruab nrab tus nqi ntawm cov khoom ua customized yog tshaj 95%.
4) Xav txog kev pabcuam
Zoo: suav txog cov neeg koom ua ke nrog cov neeg koom ua ke, kev txhim kho, kev tsim kho, tsis tuaj yeem xaiv tus qhua, tsis hais tus neeg loj npaum li cas, thaum tus neeg xav tau kev pab, Cov kev pabcuam tshwjxeeb thiab kev pabcuam tshwjxeeb: Kev muag khoom muag DFM muag khoom muag, kev muag khoom thiab kev pabcuam muag tom qab kom txo tau cov nqi, txuag lub sijhawm thiab optimize cov khoom;
Yog tias tus neeg mob lub luag haujlwm hloov ntawm kev kub ntxhov, xws li: kev txhawj xeeb, hloov, tshem tawm, ntxiv, ceev nrawm, peb yuav tsum tau kho mob ntawm tus neeg xav, xav kom xav tau tus neeg mob, ua qhov zoo tshaj plaws los pab cov daws cov teeb meem, txo qhov kev poob qis los yog propel qhov kev tsim tawm ntawm txoj haujlwm.
