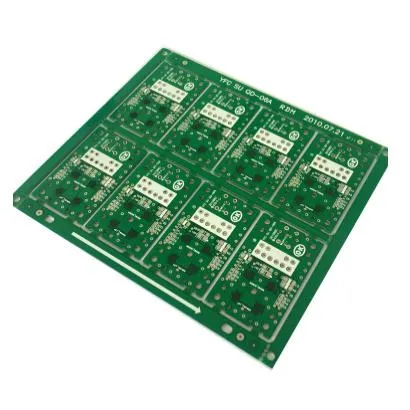

Cov qe kua qaub PCB
1. Muab khoom piav qhia
Kev Qhia:
Lub npe khoom: Cov kua carbon Carbon
Khoom siv: FR4
Phaj tuab: 1.6 hli.
Yam tsawg kab dav / kab nrug: 0.2 hli / 0.2 hli.
Lub aperture qis tshaj: 0.8 hli.
Tooj dub: 35um.
Nickel thickness: 5um
Daim ntawv thov: kev kho mob
Cov Carbon number case PCBs peb tsim yog tsuas yog siv rau hauv qhov chaw kho mob hnav. Tag nrho cov khoom yuav tsum muaj raws li ISO9001 UL CE thiab lwm yam ntawv pov thawj nrog kev ua haujlwm zoo tshaj plaws rau cov xov hlau thiab tsis muaj cov ntawv ntiv tes.
2. Kev sib cog lus hauv lub rooj sib tham hauv lub tuam txhab ntawm Uniwell
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
3. Khoom siv cuab yeej hluav taws xob
Laum yog ib qho tseem ceeb heev, yog li ntawd peb muaj ib qho chaw ntsuas kev zoo tag nrho, thiab siv lub tshuab 24 xuab moos ua ke kom paub meej qhov zoo ntawm kev siv lub pob.
Nyob rau hauv lub caij no, peb tuav peb kev cob qhia huv si txhua hnub los xyuas kom meej qhov tseeb ntawm raug.
4.Xaiv thiab ntsuas
5.Packaging & shipping
1) Ntim
Peb lub tuam txhab tsis yog tsuas yog sim ua kom cov neeg tuaj muab khoom zoo, tab sis kuj xyuam xim kom muab ib qho kom tiav thiab muaj kev nyab xeeb pob. Thiab ntawm no peb npaj ib co kev pabcuam rau txhua tus xaj
2) Shipping
Ntau lub sijhawm yuav tsum muaj sib txawv.
