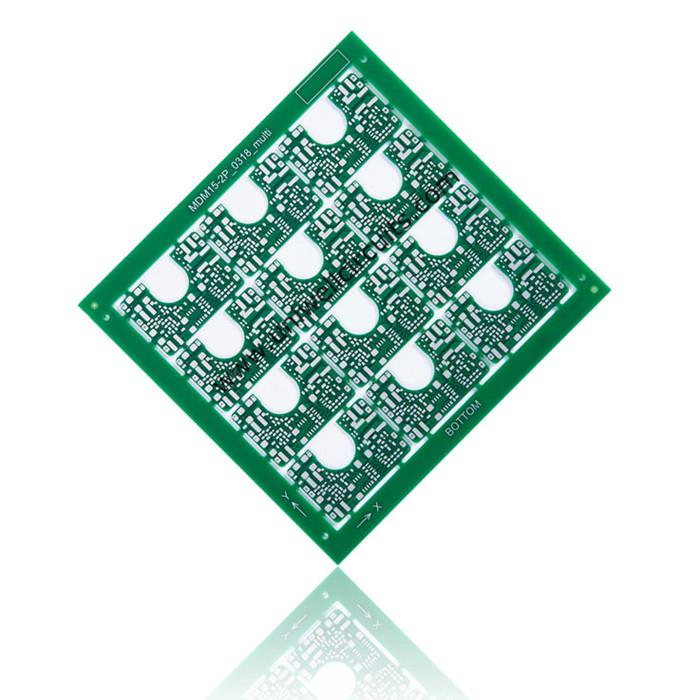

Halogen dawb saib PCB
1. Muab khoom piav qhia
Specification
Txheej: 2
Board Thickness: 1.0mm
Kev kho qhov chaw: LF HASL.
Khoom siv: Halogen dawb TG170.
Min kis dav / kab nrug: 11.79 / 11.79mil
Min qhov: 0.5 hli
Uniwell circuits kev tshawb fawb thiab kev tsim khoom, Kev tsim khoom sib txuas, LED teeb, Khoom lag luam, Khoom siv hluav taws xob, Khoom siv ruaj ntseg, Kev kho mob Electronics cov khoom, Cov khoom siv hluav taws xob, Cov khoom siv Bluetooth khoom siv thiab lwm yam.
2.Thaum vim li cas thiaj xaiv Uniwell los ua koj tus khub
1) Kom Zoo: Peb cov UL / RoHS cov txheej txheem txhim kho zoo los ntawm kev pib kom tiav.
Txawm nws yog ib qho kev cai qauv los yog khoom loj, RayMing yuav ua raws li cov qauv kev siab tshaj plaws.
2) Kev Muaj Peev Xwm: Uniwell muab qhov tseeb hauv kev sib sau ua ke thiab kev muaj feem cuam tshuam kom muaj kev tsim zoo rau txhua yam khoom uas peb tsim.
3) Kev Kawm: Peb pawg tswj hwm muaj tshaj 10 xyoo ntawm kev lag luam hauv kev lag luam.
4) Flexibility: Peb mloog koj tus kheej thiab tshwj xeeb lag luam kev ua haujlwm kom ntev thiab tom qab ntawd muab peb txoj kev daws teeb meem ceev ceev.

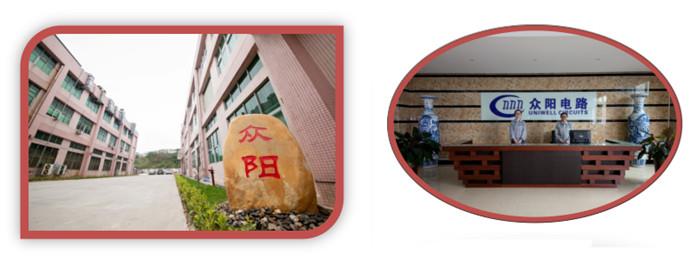

3. Qhia cov ntaub ntawv
● Founded hauv lub Plaub Hlis 2007
● Tshwj xeeb rau txoj kev ceev nrawm: Kev tiv thaiv, Sampling thiab kev txiav txim me me
● 8000 hom ib lub hlis, 24hours ceev tig.
● Approx.260 neeg ua hauj lwm, 33eng. 36 QA & QC cov neeg ua haujlwm
● Cov Ntawv Pov Thawj: UL (E314500), IS0 9001, ISO 14001, TS16949: 2014
4.Application

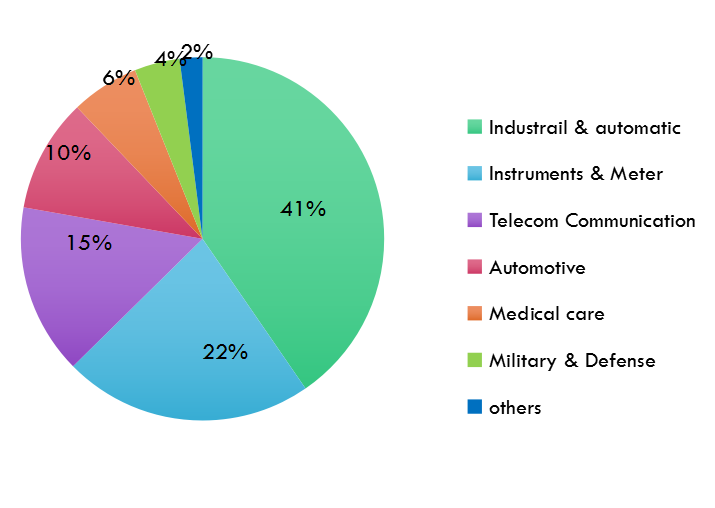

Uniwell Circuits tau teeb tsa pawg R & D haib los txhim kho nws lub peev xwm ua haujlwm kom muaj zog, siab TG, siab tswj hwm tus kheej, tswj faus, thiab qhov muag tsis pom kev, sib txuam ua ke, khoom txhuas, thiab halogen dawb, thiab lwm yam. cov khoom ntawm Uniwell Circuits yog siv rau hauv kev sib txuas lus, koom tes, digital khoom, tswj kev tswjhwm, kev saib xyuas, kev tswjhwm & hav zoov, kev tivthaiv thiab tub rog, thiab.
5. Tiav kev txawj ntse
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
