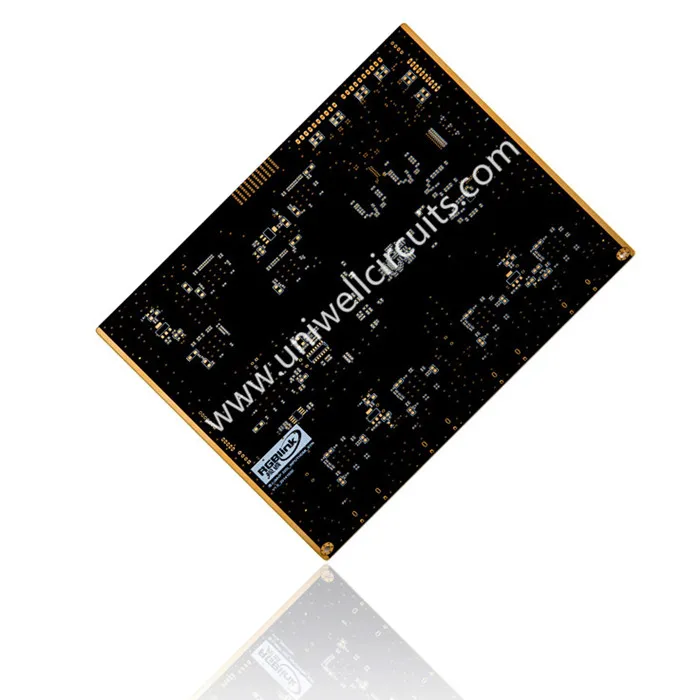

HDI nrog impedance tswj Circuit Court board
1. Qhia meej
Kev Qhia:
Txheej: 6
Board Thickness: 1.6 hli
Kev kho cov qhov hauv npoo: kub kub.
Khoom siv: FR4.
Min kab dav / kab nrug: 7 / 4.7mil
Min qhov: 0.4 hli
Cov cuab yeej tshwj xeeb: kev tswj hwm impedance, HDI
HDI los yog High Density Interconnector yog ib qho kev siv technology tshiab uas siv los ntawm ntau cov qauv hauv Chaw Sau Tseg (PCB). HDI PCBs raug luam tawm Circuit Board boards (PCB) rau hauv ib lub substrate uas muaj ntau dua kab ntim rau ib cheeb tsam thiab qhov pwm kev txuas ntau dua ib tus PCB. Vim tias qhov kev lag luam zuj zus ntxiv rau HDI PCB manufacturing, peb ntawm Bittele Electronics tau txais kev pab ntawm ntau cov lag luam ntau ntau, xws li:
●, Automotive (Kev Kuaj Cov Vev xaib, GPS, Dashboard Electronics)
●, Computers (Laptops, Tablets, Wearable Electronics, Internet ntawm Khoom - IoT)
●, Kev Sib Txuas Lus (Txawb Xov Xwm , Txuas Modules, Routers, Hloov)
●, Digital (Koob yees duab, Suab, Yeeb yaj duab)
2. Ua haujlwm pab
1) Peb yuav nco ntsoov ntawm txoj hauv kev los pab koj, peb cov kws kho mob tau ntsib hauv PCB, lawv yuav txhawb tag nrho cov kev cai ntawm kev xa mus ntim.
2) Peb muaj cov khoom muag muag los ua raws li EQ thiab cov khoom uas yuav txo koj lub sij hawm ua ntej. Thiab peb tuaj yeem xa cov khoom mus rau qhov chaw ze tshaj plaws rau koj qhov chaw tsim tshuaj.
3) Yuav muaj qee tus neeg leg ntaubntawv, xyuas cov teebmeem, nrhiav kev daws teebmeem, sib txuas lus nrog lub koomhaum los sojntsaum cov ntaubntawv, tsim cov ntawv qhia, ua raws li kev tshaj tawm ua haujlwm,
3. Qhov zoo ntawm kev sib tw:
●, Keeb Kwm
●, Cov Neeg Ua Haujlwm Paub Txog
●, Zaub ntsuab
●, Txais / Warranty
●, Kev Pom Zoo Thoob Ntiaj Teb Thoob Ntiaj Teb
●, Ntim
●, Khoom Ntaus
●, Kev Ua Khoom Muag
●, Cog Lus Tos Kev Pom Zoo
●, Kev Pom Zoo
●, Yus lub npe
●, Kev Pab Ua Haujlwm
●, Kev Txais Me Tau Txais
4. Muab cov ntawv thov
Uniwell Circuits tau teeb tsa pawg R & D haib los txhim kho nws cov cuab yeej siv technology, peb cov khoom siv dav siv ntau qhov chaw.
5. Dab tsi yog Lead Free Solder?
1) Nws yog dab tsi?
Zoo li nyob rau hauv tsos thiab siv raws li Leaded Solder. Muaj ib qho sib xyaw ntawm 99.3% Tin thiab 0.6% Copper. Nws yuav raug xa mus rau hauv SN100CL.
Lub sij hawm uas nws ntws yog nyob ntawm 515 degrees raws li piv rau ib ncig ntawm 485 rau Kev Nqes Lawm.
Nws yog ci iab nyiaj dawb tas.
Cov ntaub pua chaw ntom ntom nti tseem ceeb thiab ncaj nraim nrog qhov tiav.
2) Vim li cas nws thiaj siv?
Nws yog siv los ua dua tshiab rau Leaded Solder uas tau hu dawb ua ntawv thov.
CEEV FAJ: Tus neeg tuaj yeem yuav tsum tau siv lub siab dua laminate kom haum rau qhov siab dua ntawm qhov kawg. Lawv yuav siv 370HR los yog lwm cov khoom siv siab temp
3) Tus txheej txheem los ua kom tiav qhov tiav?
Cov txheej txheem raug yog HAL (Kub Cua Kub). Cov laug cam dipped mus rau hauv lub tank ntawm lub raj mis thiab tom qab cua tshuab riam tawm ntawm cov khib nyiab tshaj. Nws yog siv tom qab muag khoom muag tau ua lawm.
4) Cov kev ntsuas tseemceeb yog dabtsi?
Dua ib yam li cov hlau lead hauv plhaub lub thickness tsis ntsuas. IPC tus qauv yog qhov muag pom kev ntawm lub tooj.
