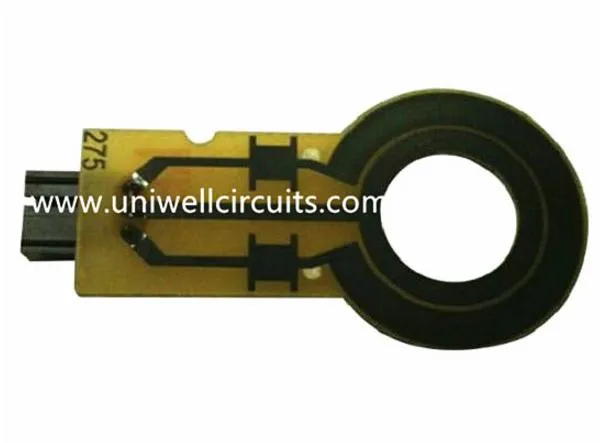

Multilayer Carbon ink circuit board
1. Muab khoom piav qhia
Kev Qhia:
Cov khaubncaws sab nraud: 4
Khoom / Laminate: FR4 TG170
Board thickness: 1.6mm
Cov luj tooj: 1/1/1 / 1oz
Xov: ENIG
Key specifications / tshwj xeeb nta:
Peb cov kev pabcuam:
- Chaw tsim tshuaj paus PCB thiab PCBA
- Rov qab cov kev pabcuam engineering
- PCB tsim thiab sib dhos
- Cheeb Tsam Khoom Siv thiab Khoom Siv
- Khoom tsim
- PCB ceev thiab PCBA prototyping
- Cov xov tooj cua thiab xov tooj cua
- Plastics thiab pwm
- AOI, Xeem hluav taws xob, lwm yam kev pab cuam kev ntsuam xyuas
Peb qhov zoo:
Zoo
ISO 9001: 2008 zoo tswj
Soj ntsuam kuaj cov ntawv kuaj thiab hluav taws xob
UL ntawv pov thawj 94V-0
Xoo hluav taws xob soj ntsuam
Pom zoo kho qhov muag (AOI)
Hauv-qhov kev kuaj xyuas (ICT) thiab kev ua haujlwm
RoHS Cov Teeb Meem-raws txoj cai
10 xyoo kev cobphum pcb Xyoo nrog kev tawm xyoo dhau los nrog kev ua haujlwm zoo, cov kev pabcuam siab thiab kev sib tw, Uniwell tau muaj ntau tus neeg txais kev ntseeg siab thiab txhawb nqa.
2. Peb tau siv tshuab
Drilling yog txheej txheem tseem ceeb nyob rau hauv PCB cov khoom, peb muaj peb tus kheej drilling kab.
Ua ntej peb yuav kis tau tus kabmob Gerber mus rau zaj duab xis thiab tom qab ntawd peb mam ua qhov PCB raws nraim tib yam raws li zaj duab xis. Nyob rau hauv lub caij no, peb tuav peb qhov kev ua si ntxuav txhua hnub kom paub meej tias raug tseeb.
Rau ntau cov ntawv txheej, peb siv cov cuab yeej AOI rau sab hauv kev soj ntsuam los xyuas kom zoo zoo.
Lwm lub tshuab
3.Yog qhia meej meej txog PCB chaw tsim tshuaj muaj peev xwm
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
4.Xav ua lag luam tawm ua lag luam
Kev paub txog kev lag luam thiab kev ua haujlwm zoo, Kev Tsim Nyog Kev Tshaj Lij thiab Kev Pabcuam Tshwj Xeeb, Uniwell Circuits tau txais kev pom zoo los ntawm cov neeg siv thoob plaws ntiaj teb, suav nrog Mainland China, Taiwan, USA, Nyiv, Russia, Lub teb chaws Yelemees, Switzerland, Sweden, UK, Finland, Fabkis, Holland, Ltalis, Poland, Denmark, Australia, Brazil, Singapore, Thaib, thiab Malaysia.
Cim npe nrov: Multilayer cov kua roj number case: PCB, Suav teb, lwm tus neeg, manufacturers, hoobkas, pheej yig, kho, tsis muaj nqi, zoo siab, quotation
