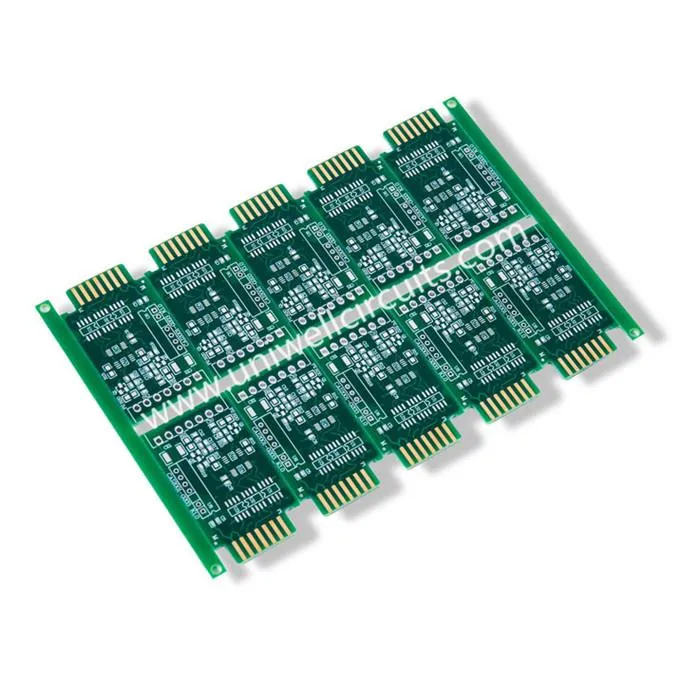

1. Muab khoom piav qhia
Specification
Txheej: 4
Board Thickness: 1.60 hli
Kev kho qhov hauv npoo: HAL leadfree.
Khoom siv: FR4.
Min kis dav / kab nrug: 4.5 / 4.25mil
Min qhov: 0.25mm
Tshwj xeeb tswj: impedance tswj
Cov khoom siv Uniwell muaj cov ISO9001, ISO14001, TS16949 thiab UL.
2. Qhia cov ntaub ntawv
Uniwell Circuits Co., Ltd, tau tsim hauv Shenzhen, Tuam Tshoj hauv lub Plaub Hlis, 2007. Uniwell Circuits yog ib lub tuam txhab muaj kev lag luam tshwj xeeb hauv kev tsim, kev tsim, kev tsim thiab muag khoom ntawm cov neeg muaj kev sib tw ob tog sib tshuam thiab cov PCBs (Printed Circuit Board) ntawm ceev tig, tsab ntawv, qhov nruab nrab thiab loj. Tam sim no, peb lub tuam txhab muaj ob lub sij hawm niaj hnub no uas ua raws li kev tswj hwm kev ua tiav.
Uniwell Circuits yog ib qho ntawm cov khoom siv sib tw rau high-end luam tawm hauv lub zos, domestic lag luam ntawm Suav teb thiab nrhiav kev siv cov kev lag luam hauv kev npaj cov phiaj xwm kev lag luam thoob plaws hauv ntiaj teb. Lub Hoobkas ntawm Shenzhen yog lub hom tshiab, kev siv technology-technology, uas yog los ntawm kev ceev nrooj, daim ntawv pov thawj thiab cov khoom me me. Yuav kom ua tiav cov kev lag luam loj tuaj, peb tau tsim ib lub Hoobkas tshiab rau Lub Kaum Hli, 2010, uas muaj npe hu ua Jiangmen Factory, nyob rau hauv Jianghai District Jiangmen lub nroog, tshwj xeeb tshaj yog tsim los rau cov khoom siv me me thiab qhov nruab nrab. Lub neej ua ke Jiangmen thiab Shenzhen cov chaw muaj pov thawj kom tau raws li tag nrho peb cov qhua tuaj yeem txhua qhov yuav tsum tau los ntawm tsab rau khoom loj.
Lub Hoobkas tshiab muaj ob lub tsev tshiab uas muaj li 15,000 square meters, thiab muaj cov khoom siv tshiab tshiab ntawm cov neeg Ixayees, Nyiv, German, thiab Taiwan. Qhov tso zis ntawm Jiangmen Hoobkas rau 2-10 txheej yog mus txog 300,000 square feet ib lub hlis. Lub hauv paus ntawm Jiangmen qhov chaw ua rau peb muaj peev xwm npaj muaj PCBs domestically thiab thoob ntiaj teb.
3.Cov kev sib tw ua ke
4. Tsim muaj peev xwm
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
5.Packaging & shipping
1) Ntim
Peb muab cov khoom rau koj raws li qhov koj xav tau. Hauv qab no yog peb lub hnab ntim.
2) Shipping
