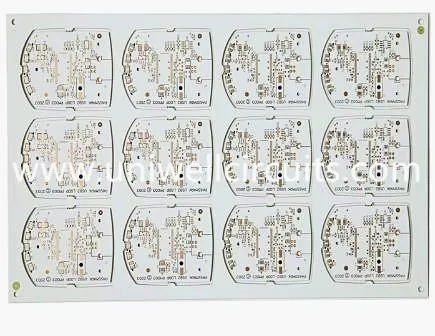

2W Cov Txhuas Txhuas Txiav Qhov Txhaum
1. Xa lus piav qhia
2W Cov Txhuas Txhuas Txiav Qhov Txhaum
Peb yog cov thawj coj ntawm tsim Aluminium MCPCB rau txhua hom High Power LED teeb. Peb cov MC-PCBs tuaj yeem siv rau Kev Teeb Tseem Ceeb / Qhov Chaw Teeb / Kev Teeb / Lub Teeb Hnub So / Lub Tsev Teeb / Sawb / Cove Lights thiab lwm yam. Peb tsim & Siv MCPCBs raws li koj xav tau.
2. Muaj peev xwm ua tau haujlwm
Peb tshwj xeeb hauv PCB txoj kev tsim kho thiab tsim, PCB raug tsim los ntawm 1 mus rau 32 txheej (Rigid PCB, Saj Zawg PCB, Ceramic PCB, Aluminium PCB); koj tuaj yeem paub ntau ntxiv txog peb kev siv tshuab
| Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
3.Ntau lub sijhawm & kev ua haujlwm
1) Cov sij hawm ua thawj coj
Peb muaj 24-48 teev turnaround kev pab tshwj xeeb tshaj yog rau cov kev xav tau ntxiv rau kev ua haujlwm sab nrauv. Txawm li cas los xij, Nws yuav pom kev pom zoo los ntawm kev xa cov caij teem tuaj rau txawv teb chaws. Thov hu rau peb tus neeg muag khoom kom paub ntxiv.
| Txheej | Nreeb tig | Qauv kev txiav txim | Kev txiav txim siab |
ib leeg | 24 xuab moos | 3 hnub ua haujlwm | 7 hnub ua haujlwm |
ob | 24 xuab moos | 4 hnub ua haujlwm | 7 hnub ua haujlwm |
4-6 players | 48 teev | 5-6 hnub ua haujlwm | 10 hnub ua haujlwm |
8-12 players | 120hours | 7-9 hnub ua haujlwm | 15 hnub ua haujlwm |
FR-4 raws li, Tshem tawm cov sijhawm ua khoom plig | |||
2) Logistics
peb muab CIF, FOB HK los yog lwm yam lus yog tias koj xav tau.
4.FAQ
Q: Dab tsi yog pcb stencil?
Nws yog steel phaj nyias, muaj ntau lub qhov rau ntawm nws.Qhov dawb yog cia li sau npliag thiab pcb ncoo qhov chaw raws nraim shout.Qhov no yog automatic los yog semi-automatic tshuab txuas rau nti siv.Steel mesh npog ntawm lub Rooj Tswjhwm Saib, ces txhuam qhov muab tshuaj, rau ntawm lub rooj sib txig ntawm lub rooj sib tshuam, thiab muab cov khoom rau hauv. Ua kom cub taws hauv tsev, welded zoo.
Lus Nug: Thaum PCB sib dhos yoj yawg, vim li cas thiaj li tuaj yeem plhaw tin kib phonomenon?
Yog hais tias nws yog thaj, nws yuav tsum tau damp.and tsis muaj nqaij yog SMD nti, uas tuaj ntawm lub qhov hauv qhov roj cov pa roj; yog tias nws yog ib sab taw, nws yuav tsum ua raws li qhov siab tshaj plaws
Lus Nug: Yog tias kuv xav tau cov lus hais, kuv yuav tsum muab cov ntaub ntawv dab tsi?
-Peb xav tau cov ntaub ntawv pcb thiab Bom sau los cim qhov PCBa tus nqi.
-Yog koj xav kom peb ua qhov kev sim ua haujlwm, thov muab cov ntawv xeem no.
Q: Yuav ua li cas nrog koj?
-Txhua tus Email thiab xa peb cov ntaub ntawv pcb layout, Bom List.
-Peb yuav muab cov lus qhia PCB thiab sib dhos ua ke hauv 2 xuab moos thiab cov nqi them hauv 3-7 hnub.
-Kev pom zoo los ntawm koj sab.
-Peb yuav xa daim ntawv ceeb toom rau koj txog kev them nyiaj.
