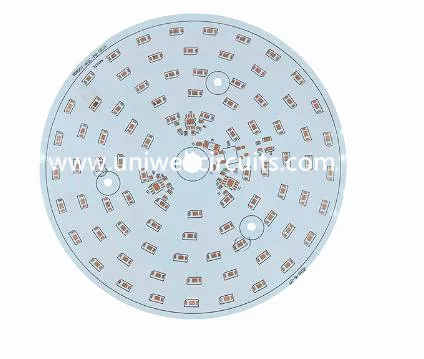

Txhuas Circuit Court Board LED
1. Xa lus piav qhia
Key specifications / tshwj xeeb nta
● Lub npe: Aluminium PCB LED
● Khoom: txhuas
● Thickness: 1.6 hli
● tooj liab: 1oz
● Qhov tsawg tshaj plaws qhov: 0.2 hli
● Tsawg dav / qhov chaw: 0.1 hli / 0.1 hli
● Kuaj cov ntsiab lus: 1,000
● Sab Nraud Daim npog ntsej muag: dawb / dub
● Xaus: immersion kub / nyiaj / Tin /, OSP, lwm yam.
● Daim ntawv pov thawj: ROSH. ISO9001. UL
● Peb yog cov thawj coj tsim Aluminium Base MC-PCBs rau txhua hom High Power LED teeb. Peb lub MC-PCBs tuaj yeem siv tau rau Kev Teeb Tseem Ceeb / Qhov Teeb / Lub Teeb Lights / Hnub Kub Teeb / Lub Tsev Teeb / Sawb / Cove Teeb thiab lwm yam.
● Peb tsim & Siv MCPCBs raws li koj xav tau. Peb muaj phav phav tsim rau MC PCBs. Peb muaj ib qho kev daws teeb meem rau koj cov cai hauv LED teeb.
2. Qhia cov ntaub ntawv
Uniwell circuits pom nyob rau hauv 2007, peb muaj peev xwm tsim PCB xws li kev sib txuam ib qho PCB li li ntawm 32 txheej multilayers PCB, thiab muab kev pab PCB los ua ke. Lub PCB & PCBA cov kev pabcuam peb muab rau peb cov neeg tuaj yeem yog qhov tseem ceeb rau peb txoj kev vam meej thiab peb lub hom phiaj tau tseem yog tib yam txij thaum peb tsim los: muab cov PCB thiab PCBA rau siab ua tus neeg siv sij hawm. Qhov kev cog lus no, nrog rau kev paub txog kev tshaj lij thiab kev txawj ntse peb tau txhim tsa ntau xyoo, txhais tau hais tias peb muaj peev xwm muab kev daws teeb meem tag nrho rau peb cov neeg yuav tsum tau ua PCB - los ntawm cov qauv ntawm kev txhim kho ua ntej mus txog rau lub sijhawm khoom xa tuaj.
3.Peb tus khub
Peb kaum xyoo kev loj hlob thiab kev pabcuam, peb tau txais kev lees paub los ntawm cov neeg tuaj ntawm ib ncig lub ntiaj teb.
4. Tsim muaj peev xwm
| Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
5.Application
Aluminium PCBs uas yog tsim los ntawm peb feem ntau yog siv thiab dav siv rau kev teeb pom kev zoo, cov cuab yeej siv hluav taws xob thiab tsheb tshuab.
6.Yog li cas?
Nrog txoj kev mob siab ua hauj lwm zoo tshaj plaws rau cov kev pabcuam, ua haujlwm kom zoo tshaj plaws nrog cov tswv yim paub zoo txog cov ntawv ntiag tug nrog cov tswv yim zoo thiab cov pab pawg ntawm cov neeg txawj ntse tseem ua tau ntau yam ntawm CAD (Computer ntxiv tsim) + CAM (Khoos phib tawj ntxiv rau computer) ntau cov txheej txheem ntawm Circuit Court Boards tuaj mus rau ntim, Xov tooj Electronics yog cog lus kom ua tiav lub hom phiaj zoo tshaj plaws kom tau txais qib siab ntawm cov neeg siv khoom txaus siab.
