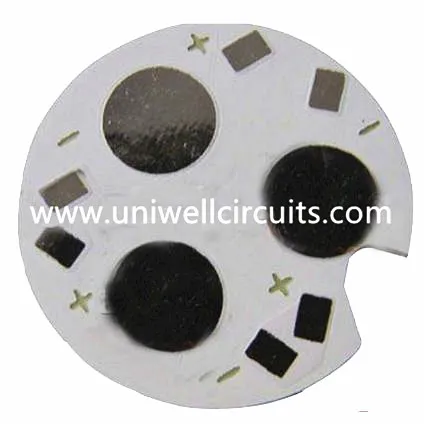

Txhuas los luj puag ncig cov ntawv cog lus

1. Muab khoom piav qhia

8_ Tsev Hais Plaub

Specification

♦ Txheej: 1 txheej
♦ Khoom: Aluminium
♦ Qhov Mini qhov: 0.2 hli
♦ Kuaj qhov teeb meem: 1000
♦ Sab Nraud Daim npog ntsej muag: LPI White
♦ Haujlwm: LED

♦ Thickness: 1.6mm
♦ Copper thickness: 35um
♦ Qhov dav dav me me / qhov chaw: 4mil / 4mil
♦ Kho tas: HASL
♦ Silkscreen: Dub

Peb muaj phav phav tsim rau MC PCBs.
Peb muaj ib qho kev daws teeb meem rau koj cov cai hauv LED teeb.
Peb kam nrog tag nrho cov teeb ci teeb pom kev zoo xws li Fixtures / Tsav / LEDs / Hnub ci panels / Battery / Hnub ci Inverters rau qhov chaw teeb, Nqa teeb, Taws teeb, Qij Qub, Teeb teeb, Solar teeb teeb

2. Qhia cov ntaub ntawv

Uniwell circuits yog ib qho ntawm cov khoom lag luam hauv PCB kev tsim khoom hauv Tuam Tshoj.Nws nyob hauv Shenzhen thiab nws tau tsim muaj nyob rau hauv 2007.

Uniwell tshwj xeeb tshaj yog nyob hauv Flex PCB & PCig protriping, PCB manufacturing, thiab PCB assembling, thiab stencil. Peb siv cov cuab yeej siv hauv xeev-rau-lub-kos duab PCB, complimented los ntawm cov khoom siv cuab yeej tshuaj rau kev tsim cov kab mob siab-kam rau sab nraud mus txog 32 txheej.

Peb txaus siab los muab tooj liab tuab li 10 lauj kaub, zais los yog dig muag vias, siab, txhuas raws li thiab tus neeg tau teev npe PCBs. Tag nrho peb cov rooj tsavxwm hauv PCB yog ua raws li UL thiab GB (Pawg Txheej Txheem Suav Tsav Tebchaws) thiab IPC-600E qauv.

图片 86_ 副本 .jpg QQ 图片 20180524142208.jpg

3. Cov ntawv thov PCB

Aluminium-backed PCBs yog siv ntau dua rau daim ntaub ntawv siv lub hwj chim / siab thermal heat dissipation. Txawm hais tias lawv tau pib tsim rau cov hwj huam hloov khoom siv, cov ntawv txhim kho vaj tse pob txha vaj tse tau txais cov koob meej hauv cov ntawv siv LED, xws li tsheb teeb, tsheb teeb pom kev zoo thiab kev teeb pom kev zoo. Kev siv txhuas cov qauv tsim kom muaj cov teeb meem ntawm cov LEDs hauv PCB tsim kom siab dua thiab rau qhov sib txuas ntawm LEDs los khiav dej num ntawm ntau dua thaum tso nyob rau hauv kev teev lus ntsuas kub.

Lwm yam kev siv rau txhuas PCBs muaj xws li cov khoom siv hluav taws xob, kev sib txuas siab tam sim no, lub cev muaj zog thiab kev siv automotive. Aluminium tub ntxhais cov khoom PCB zoo heev nyob rau hauv thermal thermal dissipation daim ntaub ntawv uas muaj feem ntau fais fab nto mount integrated circuits. Vim tias theem siab ntawm thermal dissipation txuam nrog txhuas cov PCBs, cov tswv yim tsim hluav taws xob tsim tau yooj yim. Aluminium PCBs tshem tawm cov huab cua kub thiab cua sov sinking, uas kawg txo qhov tsim nqi. Tsuas yog hais txog txhua tus qauv tsim tau zoo dua los ntawm kev txhim kho thermal conduction thiab kub tswj yog ib tus neeg sib tw rau tus txheej txheem PCB.

图片 121_ 副本 .jpg

4.Technology txoj kev daim ntawv qhia

Txij li thaum tsim, Uniwell Circuits tau teeb tsa pawg R & D haib los txhim kho nws txoj kev muaj peev xwm.
P: Prototype SV: Me Volume M: Pawg tuaj ntau

KHOOM			2015	2016	2017	2018	2019
Txheej	32 players		P	P	SV	SV	SV
	36 players			P	P	P	P
	42 players				P	P	P
Min. Kab dav / qhov chaw	Puab Txheej	3/3mil	M
		2.5 / 2.5mil	P	SV	SV	M
		2 / 2mil			P	P	P
	Txheej txheej	3/3mil	SV	SV	M
		2.5 / 2.5mil		P	SV	M
		2 / 2mil			P	P	P
Min. mechanical drilling qhov loj		8mil	M
Min. mechanical drilling qhov loj		6mil	P	P	SV	SV	SV
Nam piv	13: 1		SV	SV	M
	15: 1			P	SV	SV	SV
	16: 1				P	SV	SV
	18: 1					P	P
Copper thickness	6 OZ		P	SV	M
	8 OZ		P	P	SV	M
	10 OZ			P	SV	M
	12OZ				P	SV	SV
	tiav asymmetric tooj liab ntawv ci 1 / 6OZ		P	SV	M

KHOOM			2015	2016	2017	2018	2019
Impedance tswj	± 10%		M
	± 8%		P	P	SV	SV	SV
	± 5%			P	P	SV	SV
Tiav pov thawj thickness	Thick	6.5 hli	P	SV	M
		7.5 hli	P	P	SV	SV	SV
		10 hli	P	P	P	P	P
	Nyias	0.15 hli	SV	SV	SV	SV	SV
	Nyias	0.1 hli		P	P	SV	SV
Max. tiav qhov rooj me me	Ntev	1200 hli	P	P	SV	SV	SV
Max. tiav qhov rooj me me	Dav	650 hli	P	P	P	SV	SV
Min. Sab hauv txheej	4layers	0.075 hli		p	P	p	p
	8layers	0.1 hli		p	P	p	p
	12layers	0.125mm		p	P	p	p

KHOOM		2015	2016	2017	2018	2019
Cov Kev Kawm Tshwj Xeeb	Faus capacitor / resistor		P	P	SV	SV
	Rigid-flexible board		P	SV	SV	SV
	Counterbore + Dig muag faus VIA S (HDI)	P	P	SV	SV	SV
	2-txheej thiab multilayer Aluminium raws li PCB	P	SV	SV	M
	Hlau ntxhais thiab PTFE cov khoom siv PCB	P	P	SV	SV	SV
	Hybrid nias (Ceramic ntxhais + FR4 + Cu tub ntxhais)		P	SV	SV	SV
	Ntau txheej PTFE			P	P	P
	Qiv Hybrid nias (FR4 + Tej hub)	P	P	SV	SV	SV
	Ib Nrab Loj Tshaj Lij	P	P	SV	SV	SV
	Selective Surface Finish	P	SV	SV	SV	SV
	Ib nrab ntawm qhov Qhov Nruab Nrab / Qhov Nruab Nrab	M
	Txauv cov neeg kho tshuab dig muag Ntawm (lub qhov nruab nrab tsis pub tsawg tshaj 0.15mm)		p	P	p	p
	Tom qab Drilling Technics	P	SV	SV	SV	SV
	Ntawm PAD	M
	V-CUT mus txog PTH	P	SV	M
	Hloov Dab Tsi / Qhov Chaw Teeb (Countersink, Ib Nrab Ntawm Qhov, Qhov Taub Hau, Qhov Taw Qhov Ntawm Qhov Chaw, Tawm Txawv, Pawg Ntoo Plating)	SV	M
	Multiple-Pressing (Tsis pub ntau tshaj 4 zaug)	SV	SV	SV	SV	SV
