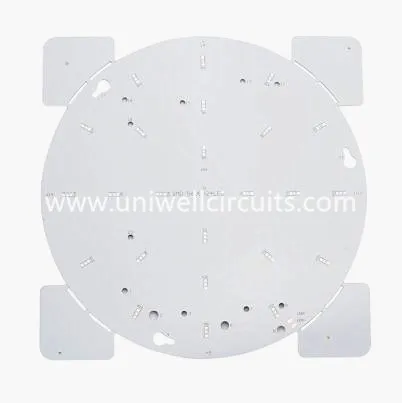

Aluminium immersion kub PCB
1. Xa lus piav qhia
Aluminium immersion kub Circuit Court board
General specification rau Aluminium PCB
Txheej suav: 1-2 txheej
Board thickness: 0.5-3.0mm
Tooj dub: 1-3oz
Thermal conductivity: 1.0-4.0W / mK
Kev kho qhov hauv npoo: HAL (Lead dawb), kub cev / Tin, OSP, Kub plating
Daim ntawv thov: Txhua yam LED teeb
Tsuas pub rau teb chaws As Mes Lis Kas, Europe, thiab Australia
Kev Siv Lub Xeem:
Qhov fais fab tuag nto mounting ntawm Circuit Court layer, nws yog ib qho zoo haum rau kev sib zog ntawm lub hwj chim loj lub teeb emitting diodes (LEDs) yooj yim dissipating lub cua sov generated los ntawm lub hwj chim pab kiag li lawm.
2.Xaiv cov lus qhia ntawm PCB kev tsim
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
3. Qhia cov ntaub ntawv
Uniwell circuits co., LTD., Muaj nyob rau hauv 2007 hauv Shenzhen, Suav, uas tau cog lus rau kev tsim cov khoom txhuas lead pcb, MCPCB, FPC yooj yim, thiab yog li ntawd rau txhua yam ntawm kev ntaus nqi txhuas lub PCB Board.
4. Ua haujlwm pab
1) Cov khoom siv thiab cov pob yuav tsum tau coj.
2) Qee qhov kev txiav txim zoo li qub.
3) Yuav teb 24 teev.
4) Ua raws li kev txiav txim siab kom muaj thiab Txuag nrog koj.
5) Yog tias koj muaj lus nug txog cov khoom, thov hu rau peb, peb yuav daws cov teeb meem ua ke ASAP.
5.P ua kev & mob
Ntim: Feem ntau, peb ntim peb cov khoom nyob rau hauv nruab nrab dawb thawv thiab xim av cartons. Yog tias koj muaj ntaub ntawv pov thawj raws cai, peb tuaj yeem ntim khoom rau hauv koj lub thawv muaj npe tom qab tau txais koj cov ntawv tso cai.
D tes hauj lwm
Peb feem ntau nkoj ntawm DHL, UPS, FedEx los yog TNT. Feem ntau nws yuav siv sij hawm 4-6 hnub los txog.
Tshem tawm thiab nkoj hiav txwv shipping yeem.
