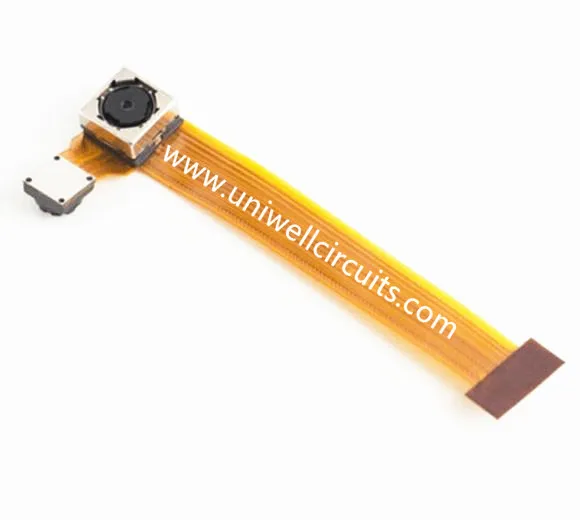

1 txheej Saj Flexible PCB rau Kev Tiv Thaiv Mob Teeb Meem
1. Muab khoom piav qhia
Specification
Lub Npe: 1 txheej Saj Flexible PCB rau Kev Tiv Thaiv Mob Nkaus
txheej: 1
Thickness: 0.12 hli
Khoom siv: ob-sided kua nplaum tsis-siv khoom electrolytic.
Copper thickness: 1/2 OZ
Kev kho qhov chaw: 1 microinch immersion.
Yam tsawg kab dav / kab nrug: 0.15mm / 0.075mm.
FR4 reinforcing thickness: 0.3mm.
Daim ntawv thov: Kev tswjxeeb
Nrog xyoo ntawm OEM luam tawm Circuit Board (PCB) thiab PCB kev sibtham tsim kev nrog rau cov kev pabcuam zoo, cov kev pabcuam siab thiab cov nqi sib tw, Uniwell tau yeej ntau tus neeg txais kev ntseeg siab thiab txhawb nqa. Lub rooj sib txuam no yooj yim yog ib qho OEM ob tog FPC, PI khoom, 0.2 hli thickness thickness, tooj liab 1OZ, txiv kab ntxwv overlayer, OSP.
Tuaj ntsib peb hnub no kom paub ntau ntxiv txog peb lub peev xwm ua tau zoo tshaj plaws uas ua tau raws IPC cov qauv kawm thiab cov qauv tshwj xeeb. Los yog ua daim ntawv sau qhia tus PCB kom tau ib qho kev kwv yees dawb.
2. Cov ntawv thov FPCB
FPCBs yog siv rau hauv kev sib txuas lus, koom tes, digital khoom, tswj kev lag luam, kho mob, aeronautics & astronautics, tiv thaiv & chaw ua tub rog, thiab lwm yam.
tsim muaj peev xim thiab leadtime
Hauv qab no yog kev lag luam ua cov qauv tshwj xeeb rau cov flex nyuaj thiab tuav cov laug cam - uas muaj ntau lub khw muag khoom pcb muag hauv lub ntiaj teb tuaj yeem ua rau peb cov hnyav hnyav thiab txhuas lub sij hawm
muaj peev xwm ntau lawm:
Uniwell circuits muaj cov qauv tsim, tsim thiab tsim muaj peev xwm coj koj cov ntawv txawb ntawm daim ntawv luam tawm los ntawm kev tsim tawm. Peb cov neeg txawj ntse ua haujlwm nrog koj cov teeb meem thiab tsim cov khoom uas txaus siab rau koj cov kev xav tau.
Cov khaub ncaws: 20 (xws li 12 players
Kab khiav widest / chaw (mil) hauv kev ua si: 3/3, 3.5 / 3.5
Nam piv: 20: 1 (PTH); 1: 1 (qhov muag tsis pom kev)
Min. drilling qhov (lub hli): 6 (mechanical); 4 (laser)
Nrug deb ntawm drilling rau neeg xyuas pib (mil): 6
Kev kam rau kev tswj hwm tus kheej (+/-): 10%
L eadtime:
Ntawm no hauv Uniwell circuits, peb muab cov kev pab cuam zoo, ceev nrig es thiaj li muaj peev xwm luam tawm ntawm Circuit Board boards. Raws li qeeb-tshwj xeeb flex PCB lwm tus neeg, peb muab rau koj nrog kev txawj ntse yuav tsum tau rau lub sij hawm sai turnaround uas honors tseem ceeb xa hnub kawg.
Cov khoom | Flex & Rigid board | Flex lub rooj tsavxwm | |||
Tus qauv qub | Multilayer qauv | Tshwj xeeb qauv | HDI qauv | Tus qauv qub | |
Leadtime (hnub) | 6 | 8 | 10 | 12 | 3-6 |
4.Packaging & xa
Pob:
Nqa cov khoom ntim nrog cov xim liab dawb / dawb.
Kev xa
Yog tias PCB lossis PCB sibtham muab kev pabcuam sai, koj tuaj yeem xaiv xa daim DHL, FedEx lossis UPS lwm yam.
Yog tias nws tsis yog li ntawd, peb tuaj yeem xa tuaj ntawm xa khoom xa tuaj forwarder, ntev dua, tiam sis tuaj yeem txuag tau koj qee nyiaj.
