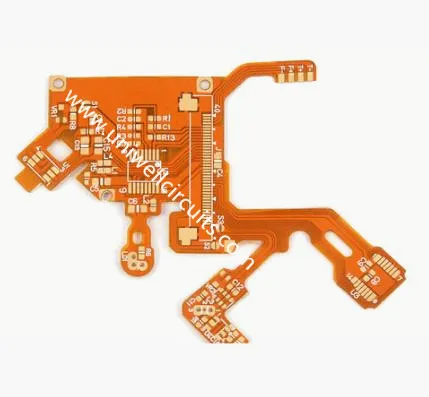

ENIG LCD Connector flex Circuit Board
1. Muab khoom piav qhia
Sau tsis tiav:
Khoom pab pawg: multi-layer soft board
Khoom siv: ob npaug-sided nplaum + tsis tshua ploj daj npog zaj duab xis + (kab tooj liab + kua nplaum + cov ntaub pua chaw medium polyimide base khoom + kua nplaum kab + tooj liab)
Kuj ua haujlwm: dawb bending thiab winding
Txiv neej: + / - 0.03 hli
Thickness: 0.15 hli
Qhov Coj Ua: pem hauv ntej thiab sab nraum qab 0.15mm steel daim ntawv thas
Kev tsim cov txheej txheem: lub plhaub taub, cov hlua khi, npog txheej, zaj duab xis - them hom, ua haujlwm - vuam ntaus cov ntaub thaiv torsion
Kev kho qhov chaw: ENIG (1 mus rau 2 microinches)
Kab dav dav dav / kab sib txuas: 0.06mm / 0.09mm
Daim ntawv thov: Connector Components
ShenZhen OEM, chaw tsim tshuaj paus flex pcb Circuit Board pawg ua, UL ROHS flex pcb, yooj yim flex PCB ua chaw tsim tshuaj, OEM yooj ywm pcb pawg tsim tsim, fpc connector flex cable, Siab Precision Shenzhen tsum luam tawm fpc flex ua pcb saj zawg zog.
2. FPC ntau lawm
Peb muaj peev xwm tsim tau txhua yam ntawm Flex PCB thiab tau 100% txaus siab los ntawm peb cov neeg tau txais kev pab!
Txheej: 20 (suav nrog 12 players)
Kab khiav widest / chaw (mil) hauv kev ua si: 3/3, 3.5 / 3.5
Nam piv: 20: 1 (PTH); 1: 1 (qhov muag tsis pom kev)
Min. drilling qhov (lub hli): 6 (mechanical); 4 (laser)
Nrug deb ntawm drilling rau neeg xyuas pib (mil): 6
Kev kam rau kev tswj hwm tus kheej (+/-): 10%
3.Uniwell kom zoo dua
• Teb ceev ceev & xa
• Paub zoo thaum zoo
• Tus nqi tsawg tsawg
• Muaj ntawv pov thawj tsim peev txheej
4.FPC daim ntawv thov:
1) Zaub, Laptop PC & Ntsiav tshuaj PC, Vaj huam sib npaug vaj huam sib luag
2) Tshuab Luam Ntawv, Scanner, Tshuab FAX, Tshuab Luam Ntawv
3) Robot, Industrial, Projector, Thauj khoom siv, Kev Lom Zem
4) Tsheb Electronics
5) Cov cuab yeej AV, Khoom kho mob, Cov ntsuas digital.
5. Cov khoom ntawm FPC
Cim npe nrov: ENIG LCD connector flex Circuit Court board, Suav teb, lwm tus neeg muag, manufacturers, hoobkas, pheej yig, kho, tsis muaj nqi, zoo siab, quotation
