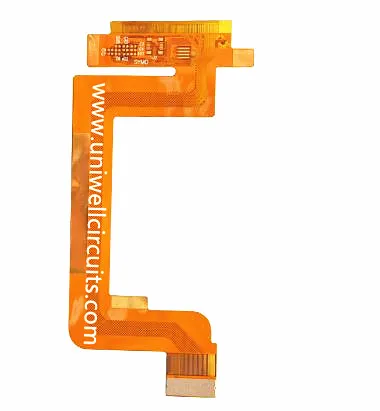

Yooj Yim Circuit Court Board rau kov tshuaj ntsuam
1. Muab khoom piav qhia
Kev Qhia:
Tsis yooj yim: cov qauv siv: ob npaug nyhuv nplaum + tsis tshua poob daj hau zaj duab xis + (kab tooj liab + kua nplaum + qhov dielectric polyimide pib khoom + kua nplaum kab + tooj liab) + tsis tshua xim daj hau.
Kev Tiv Thaiv: tsis pub khoov thiab twist.
Txiv neej: + / - 0.03 hli
Thickness: 0.15 hli
Reinforcing: zoo thiab negative 0.15mm steel daim ntawv qhov cuab lub zog.
Kev tsim cov txheej txheem: lub plhaub taub, lub plating, plating, npog npog, zaj duab xis - co lo hom, tsis ua haujlwm - kev tiv thaiv hom kab thaiv.
Kev kho qhov chaw: kub (kub) 1 ~ 2 microinch.
Yam tsawg kab dav / kab nrug: 0.06mm / 0.09mm.
Daim ntawv thov: kov npo
Uniwell circuits FPC tsom rau prototypes, me me ntim thiab nruab nrab ntim cov xaj, kev ua haujlwm thiab ua lag luam loj hlob sai vim nws tau tsim. Peb pab peb cov qhua tuaj noj qab haus huv nrog kev muaj zog R & D, ntau hom khoom, kev ruaj khov thiab ceev muaj peev xwm. Uniwell Circuits tau yog ib lub tuam txhab sib tw tshaj plaws nyob rau hauv cov chav siab nyob rau hauv cov chav qib siab flex & ruaj ntseg pawg
2. Kev txhim kho yav dhau los
3.Application
Peb FPCs tuaj yeem nrhiav tau thoob qab ntuj hauv kev kho mob, kev tsav tsheb aerospace thiab khoom tsim khoom ua tsaug rau kev nplua thiab zoo siab.
4.Reliability
Rau ntau ntawm peb cov khoom - tshwj xeeb tshaj yog implantable li - tsis ua hauj lwm thaum lub sijhawm ua haujlwm tsis yog ib qho kev xaiv. Tsis tas li ntawd, PCBs nrog nraim yuav ua rau cov nqi qis rau hauv cov txheej txheem tom ntej. Uniwell muab qhov tseem ceeb rau QA kom ntseeg tau tias tsuas yog PCBs uas ua tau raws li koj cov kev xav tau zoo xwb. Cov PCBs yuav raug kuaj xyuas raws li IPC 600 chav kawm 2 los yog ua raws li tus qauv ntawm cov neeg siv. Qhov zoo tswj system yog ntawv pov thawj raws li ISO 9001 thiab kev sib koom ua ke hauv ERP system.
Kev tsim cov ntaub ntawv thiab cov khoom specification
Cov kev tswj kev hloov yog pom tau los ntawm kev muab tus cim qhia txog tus kheej rau txhua qhov kev kho dua ntawm PCB thiab txhua yam khoom siv, kos duab thiab fabrication cov ntaub ntawv raug xa mus rau tus xov tooj no.
Txuas ntxiv, PCBs nrog cov kev xav tau yooj yim yog sau lo lus "Golden Board" thiab thaum lub sij hawm tsim tawm ntawm tsab ntawv cog lus tag nrho cov khoom tsis yog ntawm txhua cov kauj ruam raug muab sau cia. Qhov no ua kom pom tseeb tias ntau qhov ntau ntau yuav raug tsim raws nraim tib txoj kev (Golden Board). Cov kev hloov no tsuas yog siv rau kev sib koom tes nrog tus qhua tuaj noj mov xwb.
Tsis siv neeg kho qhov muag (AOI)
Tag nrho cov khaubncaws sab nraud povtseg yuav raug 100% kev kho qhov muag kho qhov muag. Kev ntsuam xyuas no ua rau pom tias cov lem yuav muaj qhov loj me me (piv txwv li cov chaw nicks ntawm zos) thiab yuav sib txawv raws li qhov yuav tsum tau ua. Cov qauv qauv yog muab piv rau cov ntaub ntawv Gerber thawj thiab tus qauv tsis kawm los ntawm thawj lub rooj tsavxwm.
E-xeem
Tag nrho cov PCBs tau siv ib qho kev ntsuam xyuas hluav taws xob tom kawg ntawm kev tsim khoom. Ntxiv nrog rau kev sim thiab kuaj luv li niaj zaus, siab impedance, leakage tam sim no, capacitive thiab inducativ load nrog rau cov kev ntsuas hluav taws xob muaj peev xwm pab tau.
Feem ntau yog siv cov kev soj ntsuam cov ntawv ntsuam xyuas. Peb cov khoom siv e-kuaj tau txais kev kho qhov muag tsis zoo thiab muag ib qho muag muag uas tsis muaj lub cim rau ntawm cov xov tooj sib txuas uas yog qhov tseem ceeb tshaj plaws rau cov ntawv pov thawj.
Txais tos mus xyuas Uniwell! Peb tab tom nrhiav rau koj tuaj!
