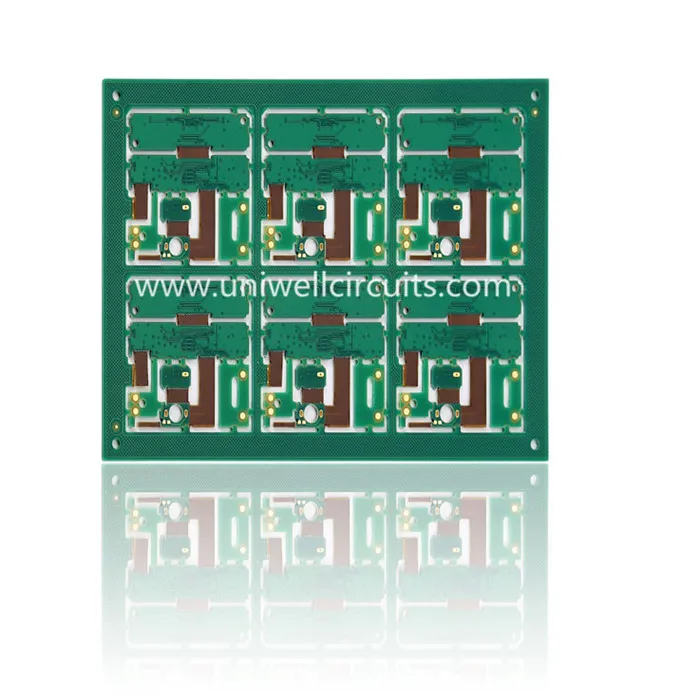

Kev kho mob kev kho mob Flex rigid circuit board
1. Muab khoom piav qhia
specification
Lub Npe: Kev Kho Mob Kho Mob Flexible Circuit Board Board
Daim Ntawv Thov: Kev ntsuas kab mob
Kev kho qhov hauv npoo: ENIG
Khoom siv: FR-4 + High TG + Dupont Adhesiveless PI
Kab dav / qhov chaw: 5 / 3.5mil
Me slot, Npog zaj duab xis lo, Kev pib txheej txheem khoom, High precise alignment
Daim ntawv thov: Kho mob
Uniwell Circuits yog kev cai tsim rau ntau sab saum toj theem OEMs. Kev tsim muaj nrog kev cia siab, peb lub PCB yog ua kom muaj kev sib tw ntawm kev tsav tsheb, kev kho mob, thiab kev ua tub rog. Ua kom muaj kev ruaj siab zoo hloov xov hlau thiab xaim hlua sib dhos, flex PCB muab cov kev txuag nyiaj tseem ceeb uas tsis muaj qhov txo qis. Peb tab tom yuav ua koj tus khub ntev nyob hauv Suav.
2.Cov khoom siv tau zoo ua qhov tsim muaj peev xwm
Txheej: 20 (suav nrog 12 players)
Kab khiav widest / chaw (mil) hauv kev ua si: 3/3, 3.5 / 3.5
Nam piv: 20: 1 (PTH); 1: 1 (qhov muag tsis pom kev)
Min. drilling qhov (lub hli): 6 (mechanical); 4 (laser)
Nrug deb ntawm drilling rau neeg xyuas pib (mil): 6
Kev kam rau kev tswj hwm tus kheej (+/-): 10%
3.Lab li PCB siv
Txo cov nqi ua haujlwm thiab kev sib sau ua ke, cov PCBs yooj yooj yim dua siv hauv kev sib sau ua ke. Qee qhov kev siv rau cov PCBs uas hloov tau yooj yim:
● Tsheb
● Cov koob yees duab
● Xovtooj ntawm tes
● Tub Rog Hluav Taws Xob
● Avionics
● Computers
● Cov ntsiav tshuaj
4. Flex PCB qhov ua tau zoo
Cov Yeeb Yaj Cuab Yeej Circuit Court Circuits muaj qhov zoo dua txhawj xeeb PCBs, xov cable, thiab thaiv cov thaiv:
● Txo qhov loj me me / qhov hnyav
● Tsis tuaj yeem ua kev sib dhos yuam kev
● Ua kom muaj kev cia siab dua
● Ua kom muaj kev tswj hwm ntawm qhov muaj zog / tsis muaj zog
● Kho cov cua sov tuaj
● Tso cai rau lub tswv yim 3 thev npau
● Txhim kho qhov pom ntawm lub pob
5.Packaging & shipping
Ntim:
Peb lub tuam txhab tsis yog tsuas yog sim ua kom cov neeg tuaj muab khoom zoo, tab sis kuj xyuam xim kom muab ib qho kom tiav thiab muaj kev nyab xeeb pob. Thiab ntawm no peb npaj ib txhia kev pabcuam rau txhua yam kev txiav txim.
Shipping:
Rau cov khoom me me, peb yuav xa cov npoo rau koj los ntawm DHL, TNT, UPS, FedEx, Rau cov khoom hnyav, peb yuav xa koj lub PC boards los ntawm lub nkoj lossis cua los cawm cov nqi thauj khoom. peb kuj tiv tauj lawv rau kev soj ntsuam nrog koj cov khoom xa tuaj.
