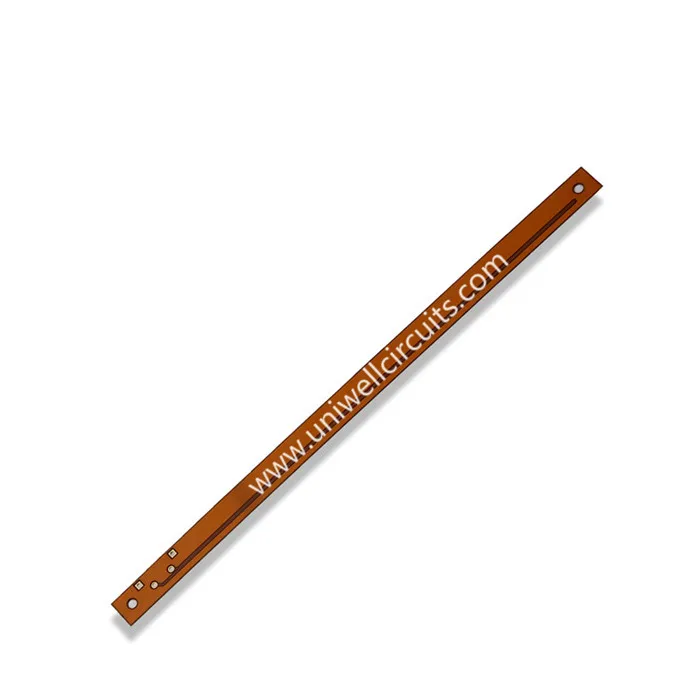

Txawb xov tooj Saj zawg zog Circuit Court Board
1. Muab khoom piav qhia
Specification
Txheej: 2
Txuj Khoom: Pauv
Tooj Thiam: 1oz
Board Thickness: 0.25mm
Lub Hnab Liab Xim: Xim npog npog
Silkscreen xim: Dawb
Kev kho cov qhov hauv npoo: Kawm kub
100% E-Test: 100% E-Test
Tus Txheem: IPC-Class2 / Qib Kawm 3
Daim ntawv thov: Txawb xov tooj
Uniwell Circuits Co., Ltd, tau tsim hauv Shenzhen, Suav teb hauv lub Plaub Hlis, 2007.. yog ib lub tuam txhab tshiab uas tau tsim hauv xyoo 2007. Thaum pib peb tsuas yog tsom ntawm kev tsim cov ntawv cog lus Circuit Court Circuits. Tab sis tam sim no peb tau dhau los ua ib qho kev loj hlob thoob ntiaj teb ntawm cov kev daws teeb meem hauv peb qho ntawm cov thawj xibfwb ntawm Cov Rooj Vajtse Circuit Board, PCB Assembly thiab Components Sell. Peb tau mob siab tsim txoj kev sib koom tes thiab muab kev daws teeb meem los pab peb cov qhua tuaj yeem ua tiav.
Raws li kev paub txog PCB thiab PCBA lub chaw tsim khoom, peb muab cov qauv ntawv pov thawj, me me, ntim nruab nrab, thiab ntim cov dej loj. Peb muaj peev xwm lav tau qhov kev pabcuam tiav nrog kev ua kev tshaj tawm tshiab, muab tus nqi kom zoo dua thiab sijhawm teem sijhawm.
2. Ua haujlwm pab
PCB tsim
Rov qab Engineering-PCB luam, PCB clone, IC decode
Nreeb prototyping
Cheebtsam tsoo thiab nriav
FPC ua Mould ua thiab yas txhaj tshuaj
PCB, PCBA SMD, SMT los ua ke
Muab cov kev pabcuam cov khoom siv
3. Kev tswj cov cuab yeej
Peb cov kev tsim thiab kev tswj cov txheej txheem yog ISO 9001: 2000 tau ntawv pov thawj thiab haum rau IPC-A600 (PCB) thiab IPC-A610 (PCB Assembly). Tag nrho peb cov PCB / PCBA yog certified UL thiab RoHS raws txoj cai.
4. Muaj peev xwm ua tau PCB ntau qhov muaj peev xwm
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
5. FPC muaj peev xwm ua tau
Txheej: 20 (suav nrog 12 players)
Kab khiav widest / chaw (mil) hauv kev ua si: 3/3, 3.5 / 3.5
Nam piv: 20: 1 (PTH); 1: 1 (qhov muag tsis pom kev)
Min. drilling qhov (lub hli): 6 (mechanical); 4 (laser)
Nrug deb ntawm drilling rau neeg xyuas pib (mil): 6
Kev kam rau kev tswj hwm tus kheej (+/-): 10%
