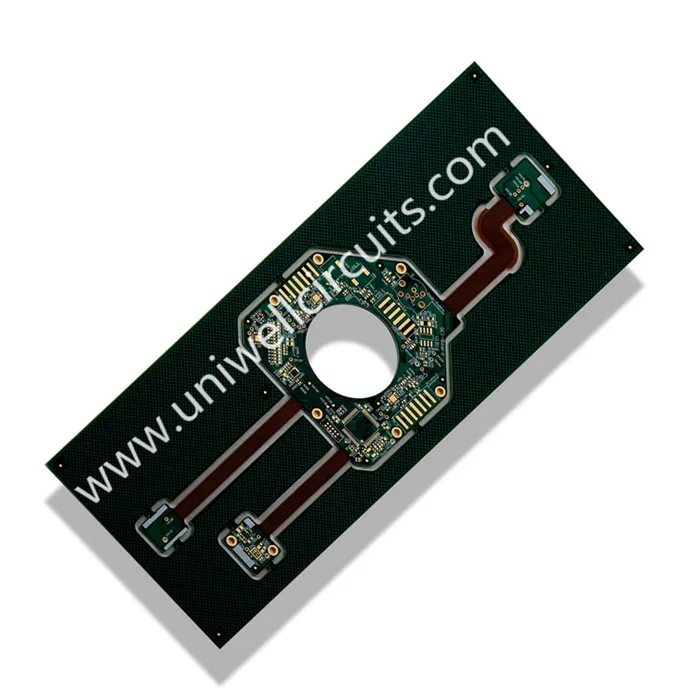

Muaj Automated Control Rigid Flex Circuit Board
1. Muab khoom piav qhia
Kev Qhia:
3 pob txhav tso ua ke
Kab dav / qhov chaw: 5 / 5mil
SMT: 9.8 mais
Lub pas dej: 4mil
2. FPC nta thiab daim ntawv thov
1) FPC nta
movable, flexible, turnable
Me me cubage, lub teeb yuag
Ua kom muaj hluav taws xob zoo heev, khoom vaj huam sib luag, kub-resisting, muaj peev xwm ua haujlwm kub-lub dab hluav taws xob
3D interconnection installation, dua assemble kev ntseeg tau thiab kev siv tau
Tag nrho tus nqi qis dua
2) daim ntawv thov
Khoos phis thiab kev sib txuas lus
Cov khoom kho mob
Automotive
Aerospace & Teb chaws kev tiv thaiv
Consumer electronics
3. Muaj peev xwm ua tau Pcb ntau lawm
Txheej: 20 (suav nrog 12 players)
Kab dav / chaw seem (mais) hauv kev ua si: 3/3, 3.5 / 3.5
Nam piv: 20: 1 (PTH); 1: 1 (qhov muag tsis pom kev)
Min. drilling qhov (lub hli): 6 (mechanical); 4 (laser)
Nrug deb ntawm drilling rau neeg xyuas pib (mil): 6
Kev kam rau kev tswj hwm tus kheej (+/-): 10%
4.Qhov sij hawm ntawm FPC
Peb muaj peev xwm los muab kev pab cuam sai, ib zaug & ob txheej, tshaj plaws hauv 3 hnub; ob txheej flex & txhav, ceev tshaj plaws hauv 4 hnub.
Hauv qab no yog lub sijhawm ua rau koj siv:
Cov khoom | Flex & Rigid board | Flex lub rooj tsavxwm | |||
Tus qauv qub | Multilayer qauv | Tshwj xeeb qauv | HDI qauv | Tus qauv qub | |
Leadtime (hnub) | 6 | 8 | 10 | 12 | 3-6 |
5.Packaging & shipping
Ntim:
1) Sab Hauv: Nqa cov khoom ntim khoom los yog pob khoom siv los tiv thaiv;
2) Txheej: Txheem lub thawv txawv teb chaws;
3) Cov ntawv qhwv zoo.
Shipping:
Rau qhov tsawg, peb xa nws ntawm DHL, FedEx, TNT, UPS, thiab lwm yam. Peb muaj cov nqi luv nqi nrog lawv; rau qhov ntau ntau, xa los ntawm huab cua lossis dej hiav txwv. Nws yog raws li koj qhov kev thov.
