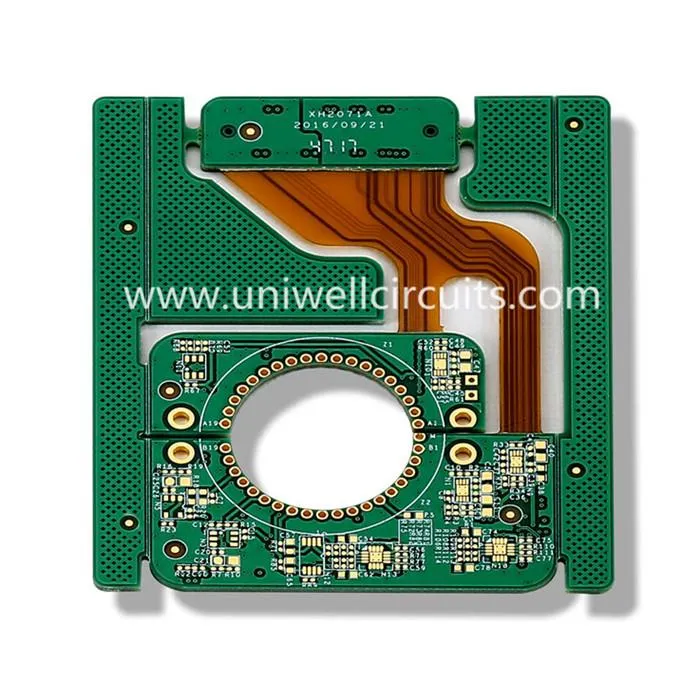

Lub Tsheb Tsheb Diagnostic Seev Lub Cev Muaj Zog flex PCB
1. Muab khoom piav qhia
Kev Qhia:
6 lub rooj tsav tsheb sib zog
Kuj ua haujlwm: dawb bending thiab winding
Txiv neej: + / - 0.03 hli
Thickness: 0.15 hli
Qhov Coj Ua: pem hauv ntej thiab sab nraum qab 0.15mm steel daim ntawv thas
Kev tsim cov txheej txheem: lub plhaub taub, cov hlua khi, npog txheej, zaj duab xis - them hom, ua haujlwm - vuam ntaus cov ntaub thaiv torsion
Kev kho qhov chaw sim: 1 mus rau 2 microinches ntawm submerged kub
Kab dav dav dav / kab sib txuas: 0.06mm / 0.09mm
Uniwell Circuits Co., Ltd yog PCB chaw tsim tshuaj nyob hauv Suav teb, Shenzhen. Nrog 10 xyoo ntawm kev txhim kho, Uniwell hloov mus rau hauv ib lub tuam txhab thib ib ntawm cov PCB flex, tsis yooj yim thiab tsuas yog muab cov PCB tshwj xeeb los ua cov PCB los ua ke, nrog rau cov khoom sib txuas, kev ua haujlwm, thoob ntiaj teb.
2. Peb pab puas tau?
Peb lub lag luam loj yog Tebchaws Europe, qaum teb tebchaws USA, Australia, South America, thiab Asia. peb yuav ua ntau yam ntxiv dag zog los tsim kom muaj kev sib txuas nrog ntau tus neeg muas zaub nyob hauv ntau cheeb tsam. Txhua yam peb xav ua, yog los txuas rau lub ntiaj teb los ntawm peb cov khoom, los qhia txog tus nqi, kev zoo siab thiab kev kawm nrog ntau tus neeg muas zaub.
3. Kev tsim kho rau txhua qhov teeb meem PCB
Uniwell tshwj xeeb tshaj tawm hauv kev xa cov kev daws teeb meem kom tau raws li peb cov neeg xav tau cov kev cov nyom tshaj plaws. Qee qhov peb cov higlights muaj xws li:
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
4.Peb lub hom phiaj
Peb txoj kev lag luam txhim kho peb lub tswv yim txhawb kom peb xa cov kev pabcuam sib txig sib luag rau peb cov neeg sib txawv, kev sib tw ntawm cov qhua tuaj noj mov. Los ntawm cov tswv yim no, peb tuaj yeem txiav txim siab yoojyim, hloov tau yooj yim rau cov lus teb rau cov kev hloov hauv kev lag luam thiab tsim muaj txiaj ntsig zoo tshaj plaws thiab cov txiaj ntsim zoo rau cov neeg siv khoom.
