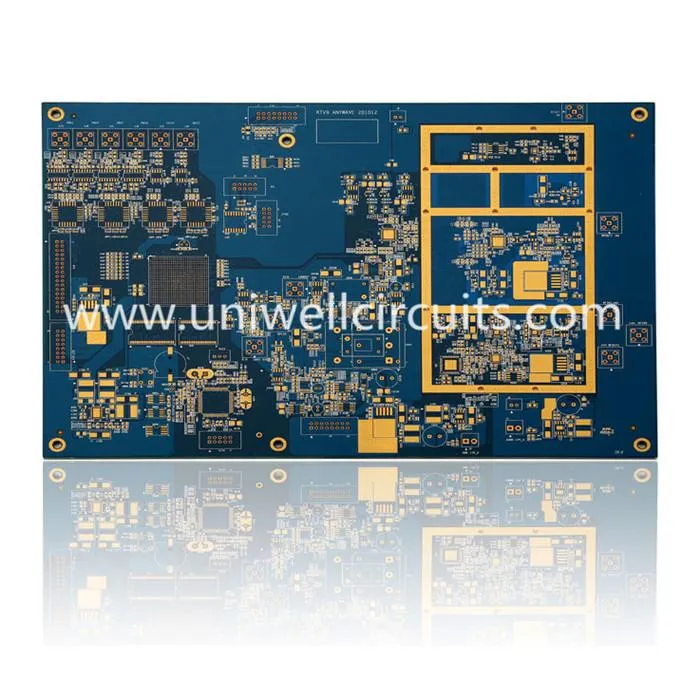

1. Xa lus piav qhia
Specification
Txheej: 16
Board Thickness: 1.60 hli
Kev kho cov qhov hauv npoo: kub kub.
Khoom siv: FR4 TG170.
Min kab dav / kab nrug: 5 / 6.1mil
Yog tias koj tsis paub meej tias koj qhov kev lag luam yuav tsum tau ua daim FR-5 high-TG boards los yog li cas raws li TG PCB ua haujlwm los tiv thaiv koj qhov kev tawm dag zog thaum lub sijhawm siv, peb zoo siab los qhia koj txhua yam koj xav paub. Nyeem kom tau taub tag nrho ntawm kev kub siab npaum li cas PCB ua haujlwm thiab nws yuav ua li cas rau koj. Thaum koj txaus siab tias FR-4 High-TG boards zoo rau koj, Uniwell zoo siab los pab daws koj qhov teebmeem no, thov hu rau peb.
2.Company profile
Uniwell circuits tau pom nyob rau hauv 2007 thiab peb muaj ob lub sijhawm cog qoob cog ntoo nyob hauv Shenzhen thiab Jiangmen, nrog cov khoom siv ntau lawm, thiab 600 tus neeg ua haujlwm hauv tag nrho. Shenzhen Hoobkas tsim tshwj xeeb hauv kev tsim, kev tsim, kev tsim thiab muag khoom ntawm high precision double-sided & Multilayer PCBs (Printed Circuit Board) ntawm kev ceev nrawm, tsab ntawv pov thawj, nruab nrab thiab loj tagnrho, Jiangmen Hoobkas rau cov khoom siv me me thiab cov khoom loj. Lub neej ua ke Jiangmen thiab Shenzhen cov chaw muaj pov thawj kom tau raws li tag nrho peb cov qhua tuaj yeem txhua qhov yuav tsum tau los ntawm tsab rau khoom loj. Koj tuaj yeem paub ntau ntxiv txog Uniwell los ntawm video nrog. Peb muaj cov khoom tsim kev pom zoo thiab kev pabcuam, peb xav kom koj yog koj tus khub ntev hauv Suav.
3. Muaj peev xwm tsim ua lag luam
Shenzhen koom xwm
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
Jiangmen Hoobkas
Khoom siv | FR4 (ib txwm lossis siab TG lossis Halogen dawb) |
CEM-3 Al raws li | |
Max. Kev Txiav Txim Siab Hauv Tsev | 540 X 620 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.2 hli |
Ntsuas phaj | 12:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 hli & +/- 0.05mm & +/- 0.05mm |
Max. Txheej Suav | 12 |
Max. tooj liab tuab | 3 OZ puab txheej / 4OZ txheej txheej |
Target kev ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 4 / 4mil |
BGA suab | 10mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG (+ G / F), Txhab nyiaj dawb / Tin OSP, Lub npog ntsej muag, Cov tshuaj Carbon |
4.Packaging & shipping
Ntim:
Dej Txhaum Tshuaj Tua Cov Thawv Ntoo Thawv
