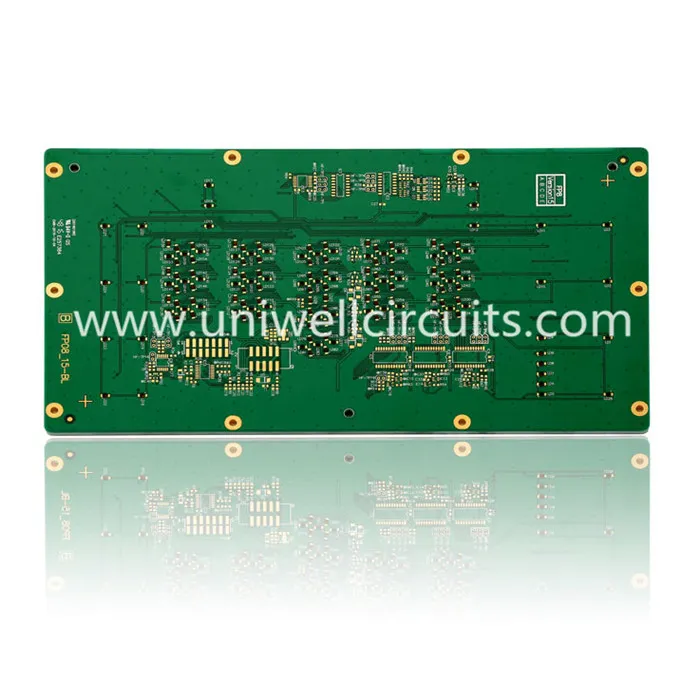

1. Xa lus piav qhia
Specification
Txheej: 16
Board Thickness: 1.60 hli
Kev kho qhov hauv npoo: ENIG (2u ").
Khoom siv: FR4 TG170.
Min kab dav / kab nrug: 5 / 6.1mil
Yog tias koj tsis paub meej tias koj qhov kev lag luam yuav tsum tau ua daim FR-5 high-TG boards los yog li cas raws li TG PCB ua haujlwm los tiv thaiv koj qhov kev tawm dag zog thaum lub sijhawm siv, peb zoo siab los qhia koj txhua yam koj xav paub. Nyeem kom tau taub tag nrho ntawm kev kub siab npaum li cas PCB ua haujlwm thiab nws yuav ua li cas rau koj. Thaum koj txaus siab tias FR-4 High-TG boards zoo rau koj, Uniwell zoo siab los pab daws koj qhov teebmeem no, thov hu rau peb.
2.Company profile
Uniwell circuits tau tsim nyob rau hauv 2007 thiab peb muaj ob lub sij hawm niaj hnub ua zauv hauv Shenzhen thiab Jiangmen, nrog advanced khoom siv khoom, thiab 600 neeg ua hauj lwm nyob rau hauv tag nrho. Shenzhen koom haum tshwj xeeb tsim, tsim, muag khoom thiab kev muag khoom ntawm high precision double-sided & Multilayer PCBs (Printed Circuit Board) ntawm kev ceev nrawm, tsab ntawv pov thawj, nruab nrab thiab loj tagnrho, Jiangmen Hoobkas tshwj xeeb tshaj yog rau cov khoom siv me me rau cov khoom loj. Kev sib koom tes Jiangmen thiab Shenzhen cov chaw Uniwell tuaj yeem ua tau raws li tag nrho peb cov qhua tuaj yeem txhua tus commands los ntawm kev sib raug zoo. Nrog cov kev paub txog thiab kev tswj kom zoo, zoo zoo, cov tswv yim tsim tawm thiab cov kev pabcuam, peb tab tom yuav koj tus khub ntev hauv Suav.
3.Qhov kev txawj ntse ntau lawm
Shenzhen koom xwm
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
Jiangmen Hoobkas
Khoom siv | FR4 (ib txwm lossis siab TG lossis Halogen dawb) |
CEM-3 Al raws li | |
Max. Kev Txiav Txim Siab Hauv Tsev | 540 X 620 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.2 hli |
Ntsuas phaj | 12:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 hli & +/- 0.05mm & +/- 0.05mm |
Max. Txheej Suav | 12 |
Max. tooj liab tuab | 3 OZ puab txheej / 4OZ txheej txheej |
Target kev ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 4 / 4mil |
BGA suab | 10mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG (+ G / F), Txhab nyiaj dawb / Tin OSP, Lub npog ntsej muag, Cov tshuaj Carbon |
4. Peb Cov Kev Pab
1) Cov ntaub ntawv tshawb xyuas cov ntaub ntawv kom tsis txhob yuam kev hauv PCB Gerber thiab Bom.
2) Muab cov kev hloov zoo tshaj plaws nrog cov nqi qis dua.
3) Kev txhawb kev tsim vaj tse rau kev ntsuam xyuas thiab muab tswv yim rau kev qhia ntau yam.
4) Muab cov khoom xa tawm zoo tshaj plaws.
5) Kos npe NDA kom koj tus qauv tsim kom zoo.
