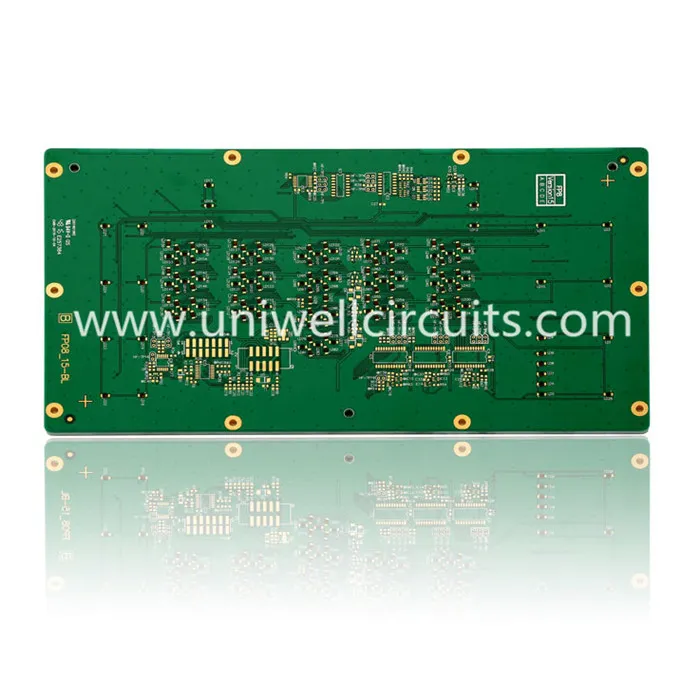

1. Qhia kev piav qhia
Specification
Txheej: 20
Board thickness: 2.6mm
Qhov loj me: 0.6 hli
Ib txoj kab dav dav / qhov chaw: 5 / 4mil
Kev kho cov qhov hauv npoo: kub kub
2.Video piav qhia
Uniwell circuits co., LTD. , Txij xyoo 2007, peb mloog zoo rau PCB kev tsim khoom siv rau 10+ xyoo, peb muaj kev nplua nuj nyob hauv PCB cov khoom thiab PCB los ua ke. Muaj ib daim video txog Uniwell.
3. Kev soj ntsuam txog peb cov kev pab PCB
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
4.Qhov yam tseem ceeb
Tshawb nrhiav & kev tsim kho tshiab, kev txhim kho kom zoo, kev cog lus zoo
Ua ib lub hom phiaj zoo tshaj plaws nyob hauv ob lub teb chaws sab nraud thiab sab nraud PCB teb
Yog peb ib txwm ua.
5.FAQ
Q: Hom twg ntawm PCBs koj txheeb xyuas tau hauv?
Peb tau tsim tshwjxeeb rau kev tsim PCB, Ob Sab PCB, PCB Multilayer, flex PCB, PCB tsis yeem, txhuas PCB, tshuaj Tin PCB, Immersed kub PCB, etc.
Q: Koj lub sijhawm saib xyuas yog dab tsi?
Lub sij hawm ua thawj tswj yog feem ntau ntawm no, feem ntau yog 5-10 hnub rau tus qauv PCB, 10-15 hnub rau kev siv ntau lawm. Rau qee qhov teeb meem tshwj xeeb, peb kuj tuaj yeem qhia cov qhua tuaj yeem ua ntej kom tsis txhob muaj kev cia siab lossis poob ntawm cov qhua tuaj noj mov.
Lus Nug: Koj txoj cai soj ntsuam yog li cas thiab seb koj tswj qhov kev zoo li cas?
Rau cov qauv, feem ntau kuaj los ntawm kev ntsuam xyuas ya; rau PCB Volume li 3 square metres, feem ntau sim los ntawm kev sib tw, qhov no yuav ntau dua. Vim muaj ntau cov kauj ruam mus rau PCB ntau lawm, peb feem ntau ua tau soj ntsuam tom qab txhua kauj ruam.
Q: Koj pob yog dab tsi?
Nrog ntim cov thawv ntim thiab tawm thawv tawm.
Q: PCB xa zaub mov?
Qhov no yog nyob ntawm cov neeg siv khoom, qee zaus peb xa los ntawm peb tus neeg nqa khoom, uas yog lub koom haum DHL, TNT, UPS, Fedex, thiab lwm yam. Peb cov neeg xa xov tuaj yeem tuaj yeem muab cov nqi ntau tshaj li tus nqi tshaj peb tau txais ncaj nraim los ntawm cov tuam txhab xa tawm.
Q: Koj lub peev xwm ua li cas?
Peb lub peev xwm yog nruab nrab 300,000 square meters rau ib lub hlis.
