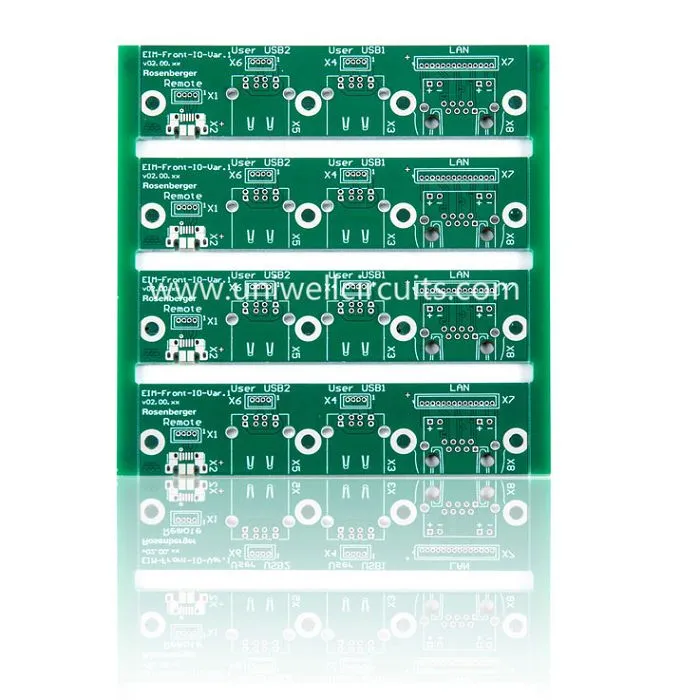

Txawb xov tooj ntawm lub rooj tsav xwm xov tooj
1. Qhia kev piav qhia
Specification
Txheej: 2
Board Thickness: 1.60 hli
Kev kho qhov hauv npoo: HAL leadfree.
Khoom siv: FR4.
Min kab dav / kab nrug: 12 / 15mil
Min qhov: 0.3 hli
Uniwell muaj tshaj li 5 xyoo txog kev ua haujlwm pabcuam nrog kev sib txuas lus hauv kev lag luam thiab koom tes ua haujlwm nrog cov khoom siv sab saum toj tshaj plaws nyob rau hauv wold.Uniwell yog qhov chaw zoo tshaj plaws rau PCB rau lub xov tooj txawb. Lub koob yees duab ntawm Smartphone xav tau qhov kev xav tau rau cov ntawv cog lus Circuit Board uas tau tsim tawm raws li cov kev lag luam siab tshaj plaws. Ua kom Uniwell koj mus rau tus neeg muag khoom rau cov ntawv cog lus Circuit Court rau cov xov tooj ntawm tes, thiab koj yuav tsis saib qhov twg ntxiv.
2. Qhia cov ntaub ntawv
1) Nthuav dav ntawm Uniwell
Uniwell circuits tau pom nyob rau hauv 2007, raws li nyob rau hauv Shenzhen, Tuam Tshoj, tshwj xeeb nyob rau hauv lub luam tawm Circuit Court boards chaw tsim tshuaj paus. Kev ua haujlwm hauv PCB kev lag luam rau 10+ xyoo, Uniwell circuits muaj ntau PCBs, xws li ib tus PCB, 2 sided PCB thiab mus txog 40 multi-layer PCB. Peb cov khoom siv sib txawv yog cov ntaub ntawv hauv cov teeb pom kev zoo hauv cov teeb pom kev zoo, lub hwj chim, kev ntsuas, kev sib txuas lus, kev siv tshuab hluav taws xob, tsheb electronics thiab lwm yam lag luam. Peb muaj 2 lub Hoobkas ntau lawm, tau muaj pov thawj los ua kom tau raws li tag nrho peb cov qhua tuaj yeem txhua qhov yuav tsum tau los ntawm tsab tuaj rau qhov khoom loj.
2) Peb cov kab ntau lawm
Peb cov tswv yim zoo peev hauv lub cav ntau lawm thiab ntau lub tshuab yuav los ntawm Nyiv, Holand, Lub Qaum Teb tsis ntev los no.
3) Ntawv pov thawj
Uniwell yog ib lub chaw tso cai ISO, UL, CE tsim tshwj xeeb rau PCB cov khoom lag luam, pcb sibtham thiab khoom phom sij thiab kuaj, OEM & ODM cov kev pabcuam muaj.
3. Peb tau pab
Peb tuaj yeem muab PCB hluav taws xob tuaj rau hauv cov ntaub ntawv xaib, OEM thiab ODM service.Tsis tsuas yog tsim PCB, PCB los ua ke, ib ntev lub sij hawm tuaj. Peb kuj ua raws li txhua yam kev txiav txim siab dawb. Hu rau peb rau ib qho kev qhia dawb thiab muab koj daim ntawv xaj rau PCB rau lub xov tooj ntawm tes. Tsis zoo li lwm cov kws kho mob PCB, tsis muaj kev txiav txim siab me me rau peb
Muaj peev xwm ua tau ntau
1) Lub Hoobkas Shenzhen
Peb muaj peev xwm muab PCB electronic board gerber ua qauv tsim, Luam thiab Clone, OEM thiab ODM qhov kev pab cuam.Tsis tsuas yog tsim PCB, PCB Assembly, tab sis kuj Yas Certificate, thiab Ua cov khoom
| Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
2) Jiangmen Hoobkas
Tshwj xeeb hauv cov khoom siv me me los sis qib nruab nrab. Lub neej ua ke Jiangmen thiab Shenzhen cov chaw muaj pov thawj kom tau raws li tag nrho peb cov qhua tuaj yeem txhua qhov yuav tsum tau los ntawm tsab rau khoom loj.
Khoom siv | FR4 (ib txwm lossis siab TG lossis Halogen dawb) |
CEM-3 Al raws li | |
Max. Kev Txiav Txim Siab Hauv Tsev | 540 X 620 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.2 hli |
Ntsuas phaj | 12:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 hli & +/- 0.05mm & +/- 0.05mm |
Max. Txheej Suav | 12 |
Max. tooj liab tuab | 3 OZ puab txheej / 4OZ txheej txheej |
Target kev ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 4 / 4mil |
BGA suab | 10mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG (+ G / F), Txhab nyiaj dawb / Tin OSP, Lub npog ntsej muag, Cov tshuaj Carbon |
