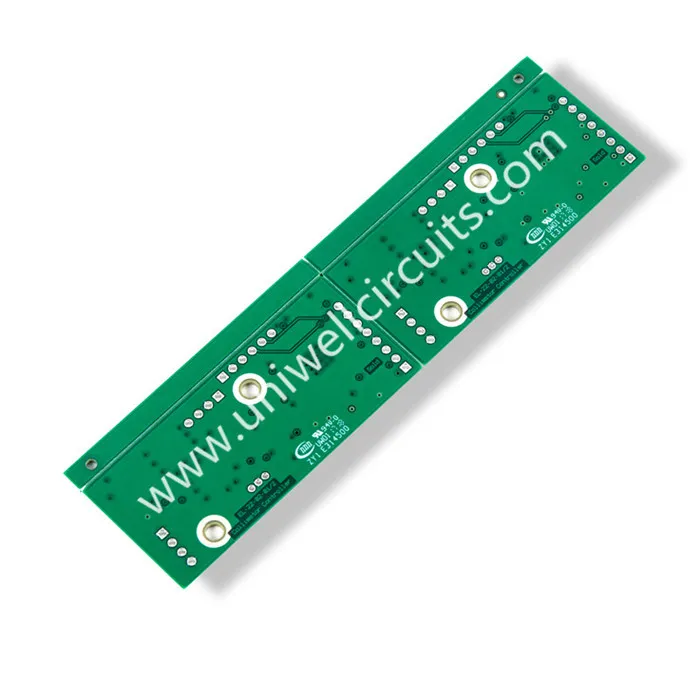

Txawb xov tooj ntawm lub rooj tsav xwm xov tooj
1. Qhia kev piav qhia
Specification
Txheej: 2
Board Thickness: 1.2 hli
Kev kho qhov chaw: LF HASL.
Khoom siv: FR4 TG135.
Min kab dav / kab nrug: 7 / 7.8mil
Min qhov: 0.35mm
2. Qhia cov ntaub ntawv
1) Nthuav qhia txog Uniwell
Uniwell circuits tau tsim nyob rau hauv 2007, raws li nyob rau hauv Shenzhen, Tuam Tshoj, tshwj xeeb nyob rau hauv lub ntawm luam tawm Circuit Court boards. Raws li keeb kwm Tuam Tshoj raws li PCB chaw tsim hluav taws xob, Uniwell circuits manufactures ntau hom PCB, xws li ib sab PCB, ob chav PCB thiab ntau txheej PCB, mus txog 32 txheej. Peb cov khoom siv sib txawv yog siv rau cov teeb pom kev zoo xws li LED teeb, lub hwj chim, kev ntsuas, kev sib txuas lus, kev siv tshuab hluav taws xob, tsheb electronics thiab lwm yam lag luam. Peb muaj kev kub ntxhov ntawm cov kev pab cuam los ntawm PCB prototypes ceev kom ntim loj PCB.
2) Peb cov kab ntau lawm
Peb ua raws tus txheej txheem thoob ntiaj teb kev lag luam.
3) Ntawv pov thawj
3.Cov khoom siv ntiag tug
Uniwell ntsuam xyuas cov nyiaj hauv cov khoom siv hluav taws xob hauv kev lag luam thiab koom tes nrog cov khoom lag luam sab saum toj.
4.Qhov khoom nta
1) Kev kub thermal conductivity
2) Muaj nplaim nplaum zoo
3) High mechanical zog
4) Dimensional stability
5) Cov cua kub zoo heev
6) Electromagnetic shielding, thiab lwm yam.
5. Tsim muaj peev xwm
1) Lub Hoobkas Shenzhen
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
2) Jiangmen Hoobkas
| Khoom siv | FR4 (ib txwm lossis siab TG lossis Halogen dawb) |
CEM-3 Al raws li | |
Max. Kev Txiav Txim Siab Hauv Tsev | 540 X 620 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.2 hli |
Ntsuas phaj | 12:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 hli & +/- 0.05mm & +/- 0.05mm |
Max. Txheej Suav | 12 |
Max. tooj liab tuab | 3 OZ puab txheej / 4OZ txheej txheej |
Target kev ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 4 / 4mil |
BGA suab | 10mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG (+ G / F), Txhab nyiaj dawb / Tin OSP, Lub npog ntsej muag, Cov tshuaj Carbon |
