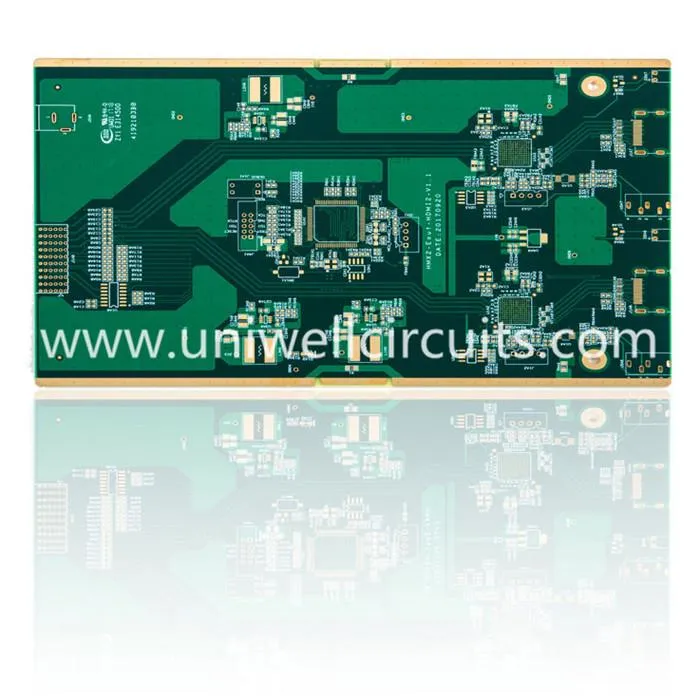

4L immersion kub halogen dawb PCB
1. Muab khoom piav qhia
Kev piav qhia:
Txheej: 4
Board Thickness: 1.60 hli
Kev kho cov qhov hauv npoo: kub kub.
Khoom siv: halogen free FR4.
Min kab dav / kab nrug: 5 / 6.1mil
2. Vim li cas peb xaiv:
Uniwell Circuits - Kev Tshawb Pom Tivthaiv Ua, Lub Ntiaj Teb, Kev Tivthaiv Teebmeem, Teebmeem Tawm, PCB Hauv Xov Tooj Thiab peb muaj kev pab zoo tshaj plaws --- Kev xaav thiab kev xa tuaj raws sij hawm, thiab teb tau sai. phaus, nyias tuab, khoov yog qhov zoo!
Peb muab 24 × 7 teev kev pab cuam thiab kev pab cuam engineering
1: Cov ntaub ntawv zoo tshaj plaws
High TG, FR4, High School (Rogers, Teflon, ARLON, TYCONIC), Halogen-free
2: Kev pab cuam sai sai
2 txheej txheej 24 / H
4-8 txheej 48 / H
3: Cov cuab yeej siv technology
min / T / G: 2.5 / 2.5 mais
Impedance tswj ± 10%
MAX piv piv rau board thickness vs laum me me loj 16: 1
Kev kho qhov hauv npoo: HASL, Kub plating, Kev kub kub, Kev sib xyaw xim, Kev siv cov nyiaj, Cov ntiv tes kub, OSP
3. Qhia cov ntaub ntawv
Uniwell circuits co., LTD. yog tsim nyob rau hauv 2007, peb muaj ob lub sij hawm tam sim no, Lub Hoobkas Shenzhen tau tsim muaj nyob rau hauv lub Plaub Hlis 2007, Kev Tsav rau Kev Tshaj Tawm: Kev Tsom Ntsuas, Kev Sampling thiab Kev Txiav me me, 8000 yam ib hlis, 24hours ceev tig, Approx.260 neeg ua haujlwm, 33X. 36 QA & QC cov neeg ua haujlwm, Ntawv pov thawj: UL (E314500), IS0 9001, ISO 14001, TS16949: 2014. Jiang Txiv neej Hoobkas raug tsim muaj nyob rau hauv Lub Kaum Hli Ntuj xyoo 2010, Tshwj xeeb rau qhov nruab nrab ntawm qhov nruab nrab thiab Kev Loj Hlob Loj Zus, Approx 250 tus neeg ua haujlwm, Muaj peev xwm 300,000 square feet ib hlis, Pom zoo UL (E314500), IS0 9001, ISO 14001, TS16949.
4. Qhia meej txog kev tsim PCB
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
5.FAQ
Q: Koj puas tau lag luam lossis lub chaw tsim khoom?
Peb yog PCB chaw tsim hluav taws xob nrog 10 xyoo kev ua hauv cheeb tsam no.
Q: Ua li cas hnub koj yug?
Txhawb kom 48 teev ua piv txwv, Feem ntau, cov qauv yuav tsum tau 3-5 hnub ua hauj lwm, yuav tsum tau siv ntau ntau tshaj 8-12 hnub ua hauj lwm.
Q: Koj tus nqi qis tshaj plaws yog dab tsi?
Peb MOQ yog 1 PCS / vaj huam sib luag.
Lus Nug: Koj qhov txiaj ntsig zoo dua li lwm lub chaw muag khoom?
Peb muaj 10 xyoo ntawm kev tsim cov kev pabcuam PCB thiab muaj kev ntseeg siab ntawm cov khoom siv raw khoom. Peb tuaj yeem paub qhov zoo tshaj plaws los pab txo koj cov nqi.
Lus Nug: Kev ruaj ntseg rau kuv tus PCB tsim rau kev tsim khoom?
Tag nrho cov neeg siv khoom kev cai yeej yuav tsis tsim tej khoom PCB rau lwm tus neeg nrog koj cov ntaub ntawv tshwj tsis yog tias peb tau sau ntawv.
