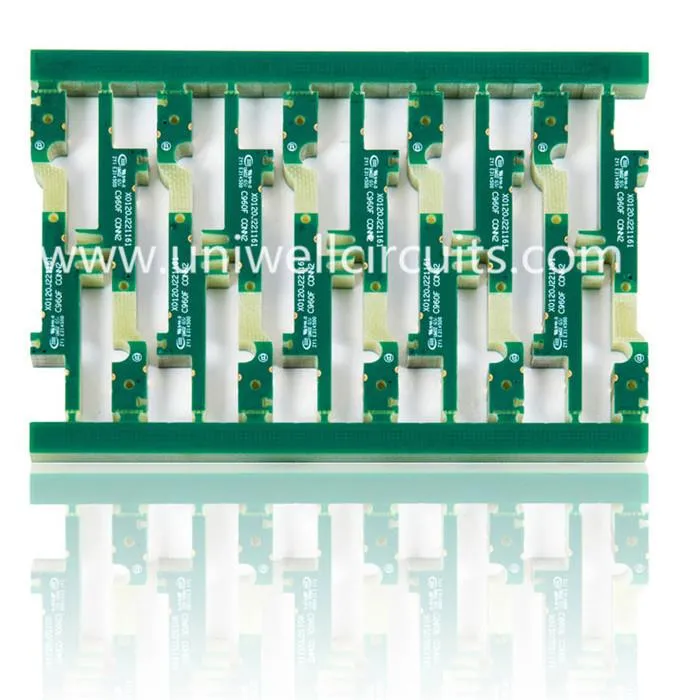

1. Tsim kev qhia
Kev Qhia:
Txheej: 2
Board Thickness: 2.45 hli
Kev kho cov qhov hauv npoo: kub kub.
Khoom siv: FR4.
Min kab dav / kab nrug: 15 / 20mil
Min qhov: 0.3 hli
Tshwj xeeb yuav tsum tau: txee dej dab, dig muag ntawm
2. Qhia cov ntaub ntawv
Uniwell circuits ua tus PCB chaw tsim khoom, muaj peev xwm tsim ua pcb xws li kev ua haujlwm ntawm ib phab ntsa li ntawm 40 phab multilayers, thiab muab kev pabcuam nres, xws li pcb qhov kev tsim, ua khoom, sib dhos, yam khoom thiab kev ua haujlwm.
Qhov kev pabcuam uas peb tau tshaj tawm rau peb cov neeg tuaj yeem yog qhov tseemceeb rau peb txoj kev vam meej thiab peb lub hom phiaj tau ua ib yam li txij thaum peb pib ua lag luam hauv xyoo 2007: muab cov khoom zoo siab, khoom tsim kho siab hauv tus neeg lub sijhawm. Qhov kev cog lus, ua ke nrog cov kev paub txog kev tshaj lij thiab kev txhawj xeeb uas peb tau ua nyob rau xyoo, txhais tau hais tias peb yog cov chaw tsim khoom pcb tuaj rau peb cov tswv lag luam PCB cov kev cai - txij pem tshuab kawg hauv kev xa mus rau hauv lub sijhawm khoom xa tuaj ~ China Multilayer Circuit Board Board PCB Chaw Tsim Tshuaj
3. Lub peev xwm ntawm qhov dig muag dig muag ntawm lub rooj tsav xwm hauv circuit
| Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE, PI | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1200 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
4.PCB equipments
Uniwell circuits li PCB chaw ua lag luam tau nqis tes rau cov cuab yeej zoo, ib puag ncig thiab kev cob qhia neeg ua haujlwm. Peb muaj peev xwm ua tau rau cov txuj ci thiab HDI, Nruj, RF thiab siab PCBs, hauv cov khoom me me, qhov nruab nrab thiab qhov ntim siab.
