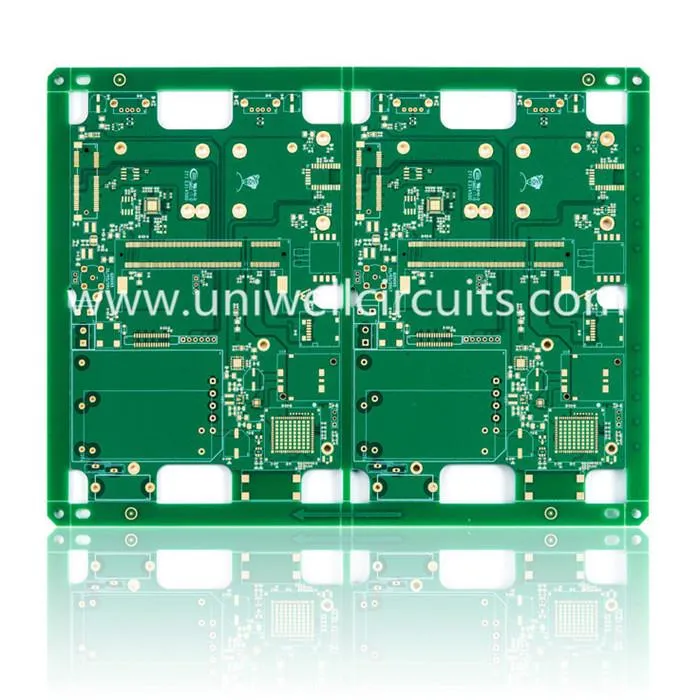

1. Muab khoom piav qhia
Kev Qhia:
Txheej: 4
Board Thickness: 1.6 hli
Kev kho cov qhov hauv npoo: kub kub.
Khoom siv: FR4 TG135.
Min kab dav / kab nrug: 8 / 8mil
Min qhov: 0.2 hli
Tshwj xeeb tswj: impedance tswj
Tsis yog tsuas yog ua kom muaj vaj huam sib luag ntawm lub rooj tsav tsheb yuav tsum muaj ntau hom PCBs, tab sis cov neeg ua khoom muag, sib dho thiab nkoj sau rau ntawm qhov chaw ua haujlwm tsheb yuav tsum muaj peev xwm muab cov laug cam nrog cov hom ntaub ntawv uas tuaj yeem siv zog siv thiab pab txhawb txoj sia ntev ntev. Qhov no txhais tau tias cov PCBs siab uas tso cai rau PCB los ua kom sov sai sai, tseem ceeb heev.
Uniwell circuits cO., LTD. muaj peev xwm los tsim txhua yam ntawm cov ntawv luam tawm Circuit Board uas koj xav tau rau koj daim ntawv thov kev tsav tsheb. Peb cov PCBs yog ISO 9001-2008 thiab UL cov ntawv pov thawj, yog li koj paub tias lawv muaj kev ruaj ntseg, txhim kho cov ntawv cog lus Circuit Board uas yuav kav. Uniwell circuits cO., LTD.
PCBs kuj tseem muaj txiaj ntsim zoo, uas yog qhov tseem ceeb heev uas yuav tsum tau ua kom muaj kev lag luam zoo tsim thiab txhim kho koj cov kab hauv qab. Tsis muaj teeb meem dab tsi uas koj tab tom nrhiav rau, peb yog koj ib lub khw rau cov tsheb luam tawm Circuit Court boards thiab dhau los. Peb tsim, sib sau thiab xaib tag nrho peb cov PCBs kom koj thiaj li muaj peev xwm txaus siab rau txhuas lub sij hawm thiab kev sib txuas lus meej. Kev tseem ceeb yog qhov tseem ceeb heev thaum nws tuaj rau tsheb PCBs, thiab peb lub koob npe nrov tias UNIWELL circuits tuaj yeem muab rau koj nrog txhua qhov zoo uas koj xav tau nyob hauv cov ntawv luam tawm Circuit Board. Mus cuag peb kom tau dawb thiab tsis muaj kev lav phib xauj automotive PCB.
2. Qhia cov ntaub ntawv
Uniwell Circuits Co., Ltd, tau tsim hauv Shenzhen, Tuam Tshoj hauv lub Plaub Hlis, 2007. Uniwell Circuits yog ib lub tuam txhab muaj kev lag luam tshwj xeeb hauv kev tsim, kev tsim, kev tsim thiab muag khoom ntawm cov neeg muaj kev sib tw ob tog sib tshuam thiab cov PCBs (Printed Circuit Board) ntawm ceev tig, tsab ntawv, qhov nruab nrab thiab loj. 8000 hom ib hlis, 24hours ceev tig, Approx.260 neeg ua hauj lwm, 33X. 36 QA & QC cov neeg ua haujlwm, thiab peb tau pom zoo los ntawm cov ntawv pov thawj: UL (E314500), IS0 9001, ISO 14001, TS16949: 2014.
3. Tsim muaj peev xwm
Peb muaj tshaj 20 tus kws tshaj lij uas muaj ntau tshaj 5 xyoos kev nrog PCB qhia txog kev tshawb fawb, peb muaj peev xwm ua tau zoo dua yav tom ntej.
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
4.Lead lub sij hawm & kev kawm
1) txhuas lub sijhawm
Nreeb tig thiab nkoj lub Rooj Tswjhwm Saib cov sijhawm ua haujlwm yog Uniwell qhov loj tshaj plaws.
Txheej | Nreeb tig | Qauv kev txiav txim | Kev txiav txim siab |
ib leeg | 24 xuab moos | 3 hnub ua haujlwm | 7 hnub ua haujlwm |
ob | 24 xuab moos | 4 hnub ua haujlwm | 7 hnub ua haujlwm |
4-6 players | 48 teev | 5-6 hnub ua haujlwm | 10 hnub ua haujlwm |
8-12 players | 120hours | 7-9 hnub ua haujlwm | 15 hnub ua haujlwm |
FR-4 raws li, Tshem tawm cov sijhawm ua khoom plig | |||
2) Peb muaj ntau hom kev lag luam
5.FAQ
Q: Koj qhov lus tshaj li cas ntawm lwm lub chaw muag khoom?
Peb muaj tshaj li ntawm 10 xyoo ntawm kev tsim tawm cov kev pabcuam PCB thiab muaj kev ntseeg siab ntawm cov khoom siv raw khoom. Peb tuaj yeem paub qhov zoo tshaj plaws los pab txo koj cov nqi.
Lus Nug: Puas ruaj khov rau kuv tus PCB tsim rau kev tsim khoom?
Tag nrho cov neeg siv khoom kev cai yeej yuav tsis tsim tej khoom PCB rau lwm tus neeg nrog koj cov ntaub ntawv tshwj tsis yog tias peb tau sau ntawv.
Lus Nug: Yuav ua li cas xa cov PCBs?
Rau cov khoom me me, peb yuav xa cov npoo rau koj los ntawm DHL, TNT, UPS, FedEx, Rau cov khoom hnyav, peb yuav xa koj lub PC boards los ntawm lub nkoj lossis cua los cawm tus nqi thauj khoom. peb kuj tiv tauj lawv rau kev soj ntsuam nrog koj cov khoom xa tuaj.
