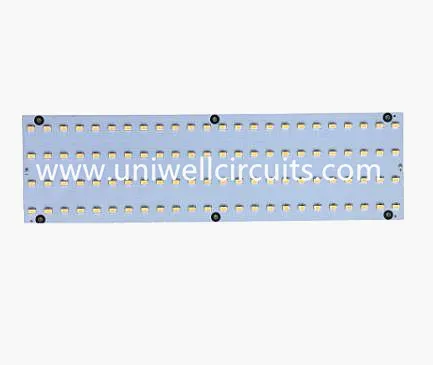

Internal twj PCB
1. Kev qhia tshwj xeeb
Cov lus qhia rau sab hauv PCB | |
Lub npe: | Internal twj PCB |
Cov ntaub ntawv hauv paus: | Txhuas laminate laminate |
Txheej suav: | 2 txheej |
Copper thickness: | 1oz los yog 35um |
Tiav lawm daim thickness: | 1.6 hli |
Daim npog qhov ncauj xim: | Dawb Kua yees duab Imageable Soldermask (LPI) |
Cov lus dab neeg xim: | tsis muaj |
Qhov nto tiav: | OSP |
Profile: | CNC + V-CUT |
Thermal conductivity: | 1.0W / mK |
Insulated txheej tus zom zaws qis | ≥3KV |
Daim ntawv thov: | LED teeb pom kev zoo |
Customize cov kev pab cuam
Peb muaj peb pawg kws tshaj lij thiab qhia cov cuab yeej technology thiab khoom siv (cov cav ntoo, cav tshuab thiab chaw machining, tshuab dhos, Milling tshuab, routing tshuab, threading tshuab, rooj txiav ua lag ua luam thiab lwm yam) ua cov khoom raws li costomer daim duab, cov ntaub ntawv, los yog kuaj thiab ua li ntawd.
2. Qhia cov ntaub ntawv
Uniwell Circuits Co., ltd, yog tsim nyob rau hauv 2007 nyob rau hauv Shenzhen, adjoining rau Hong koob nrog tsheb thauj mus los yooj yim thiab zoo tagnrho. Thaum pib peb yog ib tus PCB faib, txij thaum peb tau tsim, peb tau ua tib zoo xav txog kev ua haujlwm zoo, nqi, thiab kev pabcuam, thiab kev loj hlob nrawm.
Uniwell tsom rua kev sib tov, ntim tsawg thiab cuam tshuam kev pab cuam pcb. Nrog rau ib qho chaw lag luam tshwj xeeb thiab cov neeg ua haujlwm zoo, peb tuaj yeem muab "One-stop shop" los ntawm 1 mus rau 32 txheej ntawm PCB cov khoom, uas suav nrog Single & Ob Chav txheej PCB, Multilayer PCB, Aluminium PCB (Hlau Tub Ntxhais PCB) Saj Flexible PCB (FPCB) , Rigid-Flex PCB (Flex-Hard PCB), High Density Interconnect (HDI) PCB boards, tooj liab npab hnyav, faus Capacitance thiab cov laug cam, thiab lwm yam.
Peb muaj cov txiaj ntsig zoo thiab muaj ib pab neeg tsim khoom zoo heev, peb kuj koom tes nrog cov neeg muas zaub ntau thiab cov chaw muag khoom. Peb cov lag luam loj yog North American, Southeast Asia, South Asia, South America, Qab teb Asmesliskas, thiab lwm yam. Ntau cov neeg tuaj txawv teb chaws thiab txawv teb chaws tuaj xyuas peb rau kev lag luam kev lag luam.
3.Cov kev sib tw ua ke
4.Technology kev nthuav dav
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
5. Tsim cov khoom siv thiab ntawv pov thawj
Uniwell yog tus kws tsim txuj ci tsim qauv thiab kev tswj hwm txoj cai tswjfwm thiab cov kev tswj hwm, kev txawj ntse thiab kev paub txog kev tsim khoom thiab kev paub tab, cov cav tov thiab kev kuaj ntsuas.
Khoom siv ntau lawm
Daim ntawv pov thawj
Cim npe nrov: Internal twj PCB, Tuam Tshoj, lwm tus, manufacturers, hoobkas, pheej yig, kho, tsis muaj nqi, zoo tshaj, hais tawm
