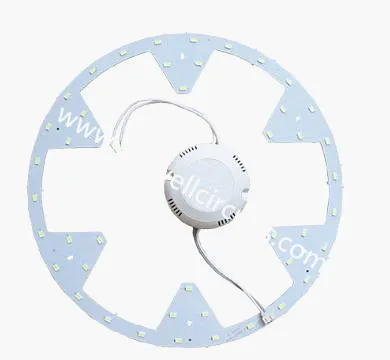

Internal cuab yeej Circuit Board
1. Kev qhia tshwj xeeb
Cov ntsiab lus rau cov khoom siv sab nraud Circuit Court | |
Lub npe: | Internal cuab yeej Circuit Board |
Cov ntaub ntawv hauv paus: | Txhuas laminate laminate |
Txheej suav: | 2 txheej |
Copper thickness: | 1oz los yog 35um |
Tiav lawm daim thickness: | 1.6 hli |
Daim npog qhov ncauj xim: | Dawb Kua yees duab Imageable Soldermask (LPI) |
Cov lus dab neeg xim: | tsis muaj |
Qhov nto tiav: | OSP |
Profile: | CNC + V-CUT |
Thermal conductivity: | 1.0W / mK |
Insulated txheej tus zom zaws qis | ≥3KV |
Daim ntawv thov: | LED teeb pom kev zoo |
Lub feature ntawm txhuas Circuit Court Board
1) Kev kub thermal conductivity
2) muaj nplaim nplaum zoo
3) siab zog txhua yam
4) kev ruaj ntseg
5) dab dej kub zoo heev
6) electromagnetic shielding, thiab lwm yam.
2. Qhia cov ntaub ntawv
Uniwell Circuits Co., ltd, founded hauv 2007 hauv Shenzhen, adjoining Hong koob nrog tsheb thauj mus los yooj yim thiab zoo tagnrho. Thaum pib peb yog ib tus PCB faib, txij thaum peb tau tsim, peb tau ua tib zoo xav txog kev ua haujlwm zoo, nqi, thiab kev pabcuam, thiab kev loj hlob nrawm.
Uniwell tsom rua kev sib tov, ntim tsawg thiab cuam tshuam kev pab cuam pcb. Nrog rau ib qho chaw lag luam tshwj xeeb thiab cov neeg ua haujlwm zoo, peb tuaj yeem muab "One-stop shop" los ntawm 1 mus rau 32 txheej ntawm PCB cov khoom, uas suav nrog Single & Ob Chav txheej PCB, Multilayer PCB, Aluminium PCB (Hlau Tub Ntxhais PCB) Saj Flexible PCB (FPCB) , Khoom Rigid-Flex PCB (Flex-Hard PCB), High Density Interconnect (HDI) PCB boards, tooj liab boards, faus Capacitance & cov laug cam, thiab lwm yam khoom peb cov khoom muag muaj exported rau cov teb chaws Europe, America thiab Asia.
Tam sim no Uniwell tau tsim cov kev lag luam, kev tsim khoom, kev tsim khoom, kev tsim, kev ruaj ntseg tiav qhov system, peb tsom rau qhov zoo, nqi, kev pabcuam, thiab muaj kev loj hlob ntxiv thiab ua tau zoo tshaj qhov kev lees paub ntawm kev ua haujlwm thoob ntiaj teb zoo li ISO 9001 , UL thiab ISO14001 ib puag ncig lub cev zoo.
3. Lub tuam txhab tseem ceeb
4. Cov khoom muaj peev xwm
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
5. Cov khoom tsim khoom
Uniwell muaj ntau xyoo dhau los hauv fabricating Aluminium PCB. Nrog peb cov neeg ua haujlwm engineering & ntau lawm thiab cov cuab yeej tsim khoom siv, ua kom pom zoo zoo ntawm txhua txheej thiab kev ua tau zoo ntawm txhua tus neeg tsav tsheb hauv Multilayer PCBs.
