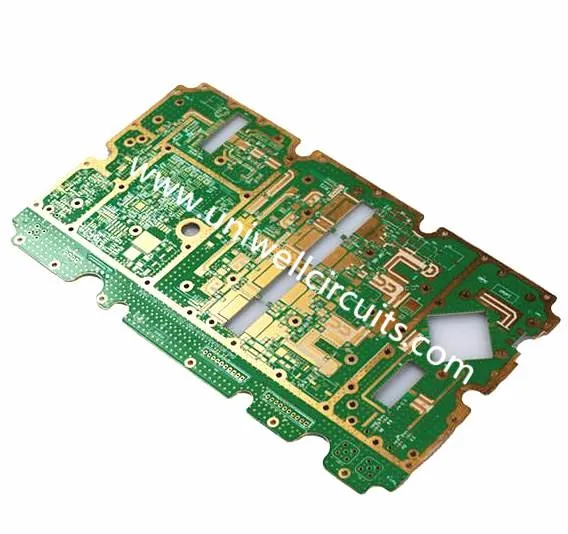

Xov tooj cua zaus PCB
1. Qhia tawm txog
Specification
Txheej: 10 txheej
khoom: Ro4350B + FR4
Thickness: 1.5 hli
Qhov dej tiav: ENIG (2U ")
Lub aperture qis tshaj: 0.35mm.
Daim ntawv thov: network
Nta: Xov tooj cua zaus
Qhov zoo tshaj plaws & Cov Kev Pab Cuam Zoo tshaj plaws nrog cov nqi sib tw
Pom zoo: UL, ISO9001, ROHS
Uniwell yog PCB thiab PCBA Chaw tsim tshuaj paus hauv Suav teb. Peb tau tsim PCB thiab
muab kev sib dhos ua ke nrog kev tivthaiv rau cov neeg nyob thoob qab ntuj tshaj 10 xyoo.
2. Qhia cov ntaub ntawv
Founded hauv 2007, Uniwell circuits yog lub tuam txhab ua lag luam nrog rau tag nrho kev loj hlob, lub peev xwm thiab kev ua tau zoo. Raws li kev tsim cov cuab yeej technology, lub tuam txhab tau coj los ua ib pawg neeg paub txog cov neeg muaj peev xwm tshaj li kev ua lag luam, kev lagluam thiab kev ua haujlwm.
Zoo kawg rau kev tswj hwm, kev ruaj khov, kev txhim kho cov kev pab cuam ua ntej muag, kev muag khoom thiab kev pab cuam tom qab muag, thiab pab kom muaj kev sib tw ua lag luam ntawm peb cov khoom. Peb lub tuam txhab ntseeg hais tias nyob rau hauv lub tswv yim ntawm kev ua neeg-nyob nruab nrab thiab nyob rau hauv txoj hauv kev nrog rau lub zog ntawm innovation thiab kev txhim kho tas mus li. Nrog rau kev ua lag luam raws li peb txoj kev qhia, thiab nrog kev zoo, kev ua tau zoo thiab kev ruaj ntseg ntawm peb cov txheej txheem, peb siv zog tsim cov khoom muag thiab cov kev pabcuam hauv ntiaj teb thiab kom pheej yig txhim kho neeg txaus siab. Tsis tas li ntawd, Uniwell Circuits cia siab tias yuav ua rau nws txoj kev txhawb nqa mus rau qhov kev ua lag luam tas mus li ntawm kev lag luam hauv tshuab hluav taws xob rau peb lub zog loj tshaj plaws ntawm kev txhawb nqa cov neeg tuaj.
3.Muab cov khoom hauv Uniwell
--- Peb tuaj yeem npaj tau cov huab hwm coj thiab cov ntawv pov thawj ntawm cov PCB (cov ntawv luam tawm hauv Circuit Board), Flex PCB, PCB cov rooj sib txoos, MCPCB (Cov tswvcuab hlau PCB), MPCB (multi-layer PCB)
--- Cov qauv ntawm PCBS peb tuaj yeem tsim: Ntawm 1-40 txheej txheem
--- Khoom ntawm PCBS: Rogers, Alu, Halogen Dawb, Fr4 Tg, PTFE, flex.
--- Thickness ntawm PCBS: txij hli 0.2 mus txog 8.0 hli
--- Xim ntawm PCBS: liab, dub, daj, xiav, ntsuab
--- Deg ntawm PCBS: immersion Tin / kub / nyiaj, HAL, Lead dawb, Kub ntiv tes.
4.Vim li cas koj yuav yuav khoom los ntawm Uniwell?
Cov lus teb yog yooj yim. Tej zaum koj yuav paub, tab sis feem ntau PCB muag muag muag ntawm koj los ntawm kev sib txuas ntev loo. piv txwv li Chaw Tsim Tshuaj -> Distributor -> Dealer -> Neeg Muag Khoom -> Neeg
Txhua qhov txuas hauv cov saw txuas ntxiv rau tag nrho cov nqi ntawm koj cov khoom siv. Qhov kawg tshwm sim yog koj poob tuaj them ntau tshaj qhov koj yuav tsum tau.
Uniwell Circuits tau hloov txhua yam ntawd. Peb tsuas siv thiab muag ncaj qha rau koj. Qhia koj nrog tus nqi siab, zoo tshaj plaws khoom uas yooj yim rau nws tus kheej nruab thiab yooj yim mus yuav, nws ncaj qha.
Vim tias peb yog cov khw muag khoom tiag tiag, peb tsis muaj muag muag lossis cov neeg lag luam uas thaum kawg ntxiv nqi rau peb cov nqi. Peb tab tom nrhiav rau pem hauv ntej kom tsim tau ntev kev koom tes nrog koj!
Tshuab ntawv
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
5.Tsis paub ntau dua --- Xov tooj cua zaus PCB
Cov kev sib txuas lus ntawm kev sib txuas lus tau ua tim khawv maj cov ntawv xov xwm ntawm wireless xov tooj cua (RF) circuit xws li hauv cov xov tooj ntawm cov xov tooj ntawm tes, Bluetooth khoom thiab RF Circuitry yog qhov tseem ceeb ntawm cov xov tooj cua ntawm cov xov tooj cua. Nyob rau hauv xyoo tas los no, txawm li ntawd los, qhov kev siv zuj zus ntawm 4G thiab pom tseeb ntxiv ntawm cov ntaub ntawv hloov txoj kev hloov ntawm qhov ntau yog ua rau cov nyom rau PCB tsim ntawm Circuit Court. Tom qab tag nrho, cov naj npawb ntawm cov ntawv xa los ntawm RF Circuit Court nce rau ntau pua zaug txhua txhua hnub. Tsis tas li ntawd, txij thaum RF Circuit Court tsuas yog siv rau hauv cov khoom siv txawb uas muaj cov qauv me me thiab kev txav chaw, qhov yuav tsum tau ua ntawm tag nrho Circuit Court ntim rau hauv me me, txawm yog thiab qhov tsim nyog thiab tsis cuam tshuam ntawm cov khoom me. Cuaj kaum, nws zoo li unavoidable tias electromagnetic cuam yuav siv qhov chaw ntawm cov cheebtsam hauv txawb tes. Txhob txhawj. Qee cov haujlwm yuav siv tau los txo cov kev cuam tshuam los ntawm kev cuam tshuam cov khoom siv electromagnetic.
