Shenzhen Uniwell Circuits Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm Uniwell Circuits 16 txheej 3 kauj ruam HDI pawg thawj coj saib hauv Suav teb, kuj txhawb kev pabcuam customized nrog tus nqi qis. Yog hais tias koj yuav mus yuav zoo Uniwell Circuits 16 txheej 3 kauj ruam HDI board, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas.

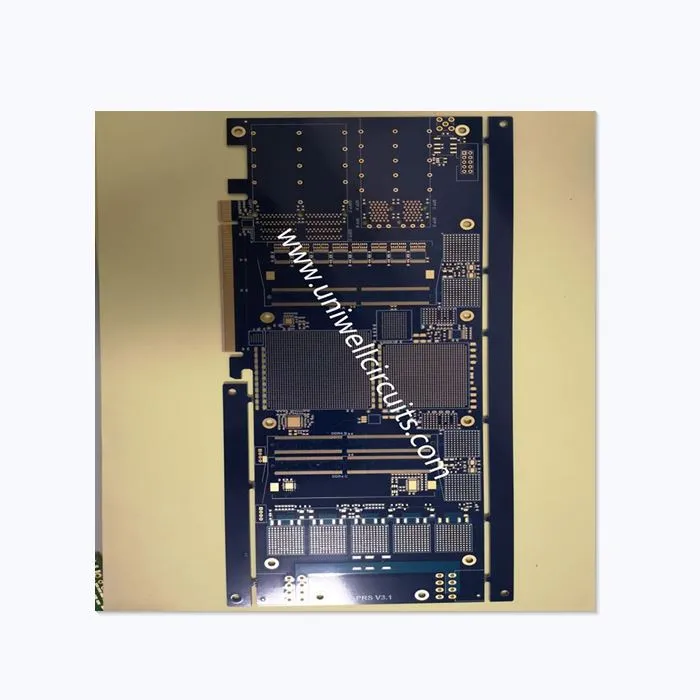

Uniwell Circuits 16 layers 3 level (third-order) HDI high-density interconnect circuit board is a high-performance pcbproduct designed for high-end and high reliability scenarios. Cov hauv qab no yog ib qho kev taw qhia rau nws cov yam ntxwv tseem ceeb thiab cov chaw siv tseem ceeb:
| Txheej | 16 txheej |
| qauv | Peb- kauj ruam HDI, 3+10+3 |
| faus qhov | L4-7/4-13/13-10 |
| High - cov ntaub ntawv ceev | TIAB SA 883 |
| Qhov chaw sab hauv | 7mil ua |
Core technical nta
Stacked qauv tsim: txais cov classic (3+10+3) thib peb- xaj HDI architecture, nrog 3 siab- txheej txheej ntawm txhua sab rau kev sib txuas, thiab 10 txheej hauv nruab nrab raws li cov txheej txheem tseem ceeb. Los ntawm ntau lub laser qhov muag tsis pom qhov faus qhov nias cov txheej txheem, cov xaim hloov pauv tau zoo heev thaum ua kom muaj kev ntseeg siab zoo.
Fine process peev xwm:
Qhov tsawg kawg nkaus kab dav / qhov sib txawv tuaj yeem ncav cuag 0.075mm (kwv yees li 3mil), nrog rau lub qhov taub ntawm micro qhov tsawg dua lossis sib npaug ntawm 0.15mm thiab lub nplhaib lub nplhaib ntawm qhov tsawg dua lossis sib npaug li 0.35mm, txhawb nqa ultra high density fine circuit layout.
Txais siab -precision laser drilling thiab pulse electroplating filling tshuab, interlayer alignment yuam kev yog tswj nyob rau hauv ib tug me me ntau yam, tsis txhob muaj kev pheej hmoo ntawm qhov sib txawv thiab luv luv Circuit Court, thiab ua kom ntseeg tau ntawm multi- txheej txheem conductivity.
Cov khoom siv thiab cov txheej txheem zoo: Cov kev ua haujlwm siab xws li TU872SLK thiab RO4350B tuaj yeem xaiv, uas muaj cov thermal stability zoo thiab tsis tshua muaj dielectric poob yam ntxwv; Txhawb ntau yam txheej txheem kho deg xws li nyiaj thiab kub deposition, haum rau sib txawv vuam thiab complex siv ib puag ncig.
Kev ntseeg tau ua tau zoo: Los ntawm tag nrho cov txheej txheem AOI kho qhov muag tshuaj xyuas thiab rab koob tshuaj ntsuam xyuas, qhov kev ntxhov siab sab hauv ntawm cov phaj nias rov qab yog qhov tsis sib xws, muaj zog tiv thaiv delamination thiab warping, thiab tuaj yeem ua haujlwm ruaj khov nyob rau hauv siab load rau lub sijhawm ntev.
Cov cheeb tsam tseem ceeb ntawm daim ntawv thov
Cov HDI boards siab heev no tau siv dav hauv siab -kawg teb nrog kev ua haujlwm nruj thiab kev ntseeg tau, ua tsaug rau lawv cov kev sib koom ua ke siab, siab - teeb liab kis tau tus mob, thiab muaj peev xwm ua kom muaj cua sov.
Hauv kev suav lub zog thiab cov servers: AI server motherboards, siab -kawg cov ntaub ntawv chaw xam phaj, txhawb siab -ceev teeb liab kis tau tus mob siab bandwidth thiab qis latency.
5G kev sib txuas lus teb: 5G lub hauv paus chaw nres tsheb AAU RF module, cov khoom siv sib txuas lus tseem ceeb, ua tau raws li qhov yuav tsum tau ua kom tsis tshua muaj kev sib kis ntawm siab - zaus teeb liab.
Nyob rau hauv lub tshav pob ntawm cov tsheb txawj ntse, cov kev pab tsav tsheb siab heev xws li ADAS thiab cov khoos phis tawj txawj ntse tuaj yeem ua tau raws li kev ntseeg siab ntawm cov qauv kev tsav tsheb.
Hauv kev lag luam thiab kev kho mob, siab- cov cuab yeej tswj kev lag luam kawg, kho mob endoscope lub koob yees duab modules, thiab cov khoom siv kho mob nqa tau nqa tau los ua ke kom ua tiav cov haujlwm nyuaj hauv ib lub ntim tsawg.
Cov neeg siv khoom siv hluav taws xob siab kawg: cov khoom siv ntse ntse, siab -cov khoom siv tau zoo, txhim kho kev ua haujlwm zoo hauv Circuit Court txwv thaum txo cov cuab yeej loj.
