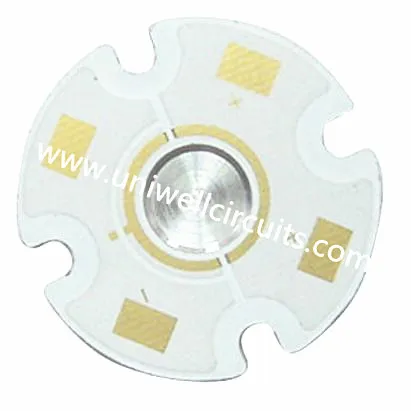

Aluminium lub hwj huam loj coj txoj kev teeb pom kev hauv pcb
1. Muab khoom piav qhia
● Thickness: 0.06 nti (1.5 hli)
● Rwb thaiv tsev txheej: 3.94 mph (100 μm)
● Tooj dub: 1.38 mais (35 μm) Cu, one-sided
● Kuav looj ntsej muag xim: xim dub lossis dawb
● Cov xim silkscreen: Dawb los sis dub
Peb siv hlau tub ntxhais cov ntawv luam tawm Circuit Court Board rau kev siv fais fab teeb pom kev zoo 1.6 hli Aluminium 75 micron dielectric txheej thiab 35 micron copper. Peb yog cov thawj coj hauv kev tsim Txhuas lub hauv paus hlau tub ntxhais PCBs (MC-PCBs) rau txhua hom High power LED teeb. Peb lub MC-PCBs tuaj yeem siv tau rau Kev Teeb Tseem Ceeb / Qhov Teeb / Lub Teeb Lights / Hnub Kub Teeb / Lub Tsev Teeb / Sawb / Cove Teeb thiab lwm yam.
2. Qhia cov ntaub ntawv
Uniwell Circuits Co., Ltd muab koj cov kev yooj yim heev thiab tus nqi rau cov chaw tsim tshuaj ntsuam Circuit Court Board (PCB) thiab sib dhos. Peb muab ntau yam ntawm cov ntawv luam tawm Circuit Board, PCB muaj peev xwm kom haum tag nrho peb cov neeg muas zaub PCB xav tau.
Tag nrho PCB thiab PCB cov rooj sib tham yog nyob rau hauv IPC-A-600F Qib 2 thiab Class3 los yog siab zog. Peb yog ib tug ISO9001: 2008, UL daim ntawv pov thawj thiab peb cov khoom raws li RoHS txuj.
3. PCB ntau lawm:
Uniwell muaj R & D pabcuam xws li kho vajtse, software thiab cov engineers, peb tuaj yeem muab kev pabcuam rau koj ib leeg.
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
4.Quality system
Uniwell y tshaj ISO9001 attestation, Qhov zoo yog peb lub neej, thiab cov txheej txheem tswj cov txheej txheem yog zoo meej nyob hauv Suav teb.
5.Packaging & xa
Ntim:
1) Tiv thaiv cov khoom siv nrog polyfoam thiab cov ntawv txheej txheem ntau txheej txheem.
2) Special Protect carton rau exporting khoom.
3) Txhua tus neeg yuav tsum tau muaj
Kev xa tuaj:
1) Los ntawm DHL, UPS, FedEx, TNT, EMS, thiab lwm yam.
2) Los ntawm hiav txwv rau huab hwm coj coob raws li tus neeg yuav tsum tau muaj.
