Aluminium lub hwj huam loj coj txoj kev teeb pom kev zoo ntawm lub rooj tsav xwm
1. Muab khoom piav qhia
● Thickness: 0.06 nti (1.5 hli)
● Rwb thaiv tsev txheej: 3.94 mph (100 μm)
● Tooj dub: 1.38 mais (35 μm) Cu, one-sided
● Kuav looj ntsej muag xim: xim dub lossis dawb
● Cov xim silkscreen: Dawb los sis dub

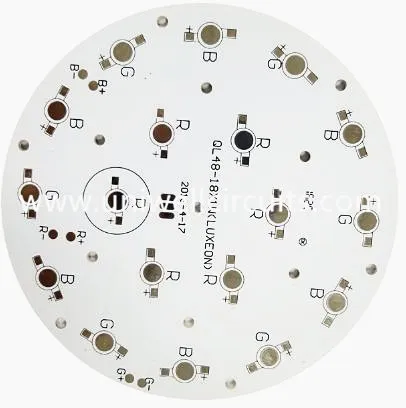

Peb siv hlau tub ntxhais cov ntawv luam tawm Circuit Court Board rau kev siv fais fab teeb pom kev zoo 1.6 hli Aluminium 75 micron dielectric txheej thiab 35 micron copper. Peb yog cov thawj coj hauv kev tsim Txhuas lub hauv paus hlau tub ntxhais PCBs (MC-PCBs) rau txhua hom High power LED teeb. Peb lub MC-PCBs tuaj yeem siv tau rau Kev Teeb Tseem Ceeb / Qhov Teeb / Lub Teeb Lights / Hnub Kub Teeb / Lub Tsev Teeb / Sawb / Cove Teeb thiab lwm yam.
2. Qhia cov ntaub ntawv
Uniwell Circuits Co., Ltd ua rau koj yooj yim heev thiab tus nqi rau cov ntawv luam tawm Circuit Court Board (PCB) paus thiab sib dhos. Peb muab ntau yam ntawm cov ntawv sau ua ke tsim kho, PCB muaj peev xwm kom haum txhua tus neeg tau txais PCB cov kev cai.
Tag nrho cov PCB thiab PCB cov rooj sib tham tau ntsib IPC-A-600F Hoob 2 thiab Class3 los yog siab zog. Peb yog ib tug ISO9001: 2008, UL daim ntawv pov thawj thiab peb cov khoom muag tag nrho RoHS ntawv pov thawj.
3. PCB ntau lawm:
Uniwell muaj pab R & D haib kom peb tuaj yeem muab kev pab ib zaug rau koj.
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
4.Quality system
Uniwell y tshaj ISO9001 attestation, Qhov zoo yog peb lub neej, thiab cov txheej txheem tswj cov txheej txheem yog zoo meej nyob hauv Suav teb.
5. Xaiv Uniwell rau tag nrho koj cov PCB kev tsim khoom thiab kev sib sau ua ke
Ntawm Uniwell, peb yoojyim, ua haujlwm zoo thiab ua raws li cov qauv kev ruaj ntseg zoo. Peb cov huab xim kom paub meej thiab kev saib xyuas rau cov haujlwm loj los me yog vim li cas peb muaj 99% qhab-nees neeg ua haujlwm thiab kev ntseeg ntawm cov tuam txhab thoob ntiaj teb.
Yog xav paub ntxiv txog peb cov kev pabcuam, kev muaj peev xwm thiab peb yuav daws tau koj cov teeb meem txog PCB, sau daim ntawv tiv tauj peb hauv online. Koj tuaj yeem tiv tauj peb ntawm xov tooj lossis hauv online tham. Peb yuav teb tam sim nrog txhua yam koj xav tau.
6.FAQ
Lus Nug: Puas ruaj khov rau kuv tus PCB tsim rau kev tsim khoom?
Tag nrho cov neeg siv khoom kev cai yeej yuav tsis tsim tej khoom PCB rau lwm tus neeg nrog koj cov ntaub ntawv tshwj tsis yog tias peb tau sau ntawv.
Q: Koj tuaj yeem txais cov ntaub ntawv tawm tswv yim twg?
Cov ntaub ntawv Gerber: CAM350 RS274X
PCB cov ntaub ntawv: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF, lo lus, txt)
Q: Yog hais tias koj tsuas muaj kev hloov me me hauv kuv qhov qauv, peb puas yuav them cov cuab yeej NRE?
Thaum koj hloov qhov kev hloov rau ntawm koj lub rooj tsav xwm luam tawm, peb muab qhov cuabyeej tshiab coj los ua. Qhov no yuav pab tiv thaiv kom tsis txhob qub cov duab los yog cnc qhov kev siv los ntawm kev siv. Txawm tias tus menyuam yaus hloov los yuav tsum tau tib cov txheej txheem tshiab raws li cov ntaub ntawv tshiab, yog li tus nqi them cuab yeej siv tau. Thov hu rau koj tus neeg muag khoom kom paub ntxiv.
Q: Peb txoj kev lav paub ntawm PCBs yog dab tsi?
Peb tau hais kom peb cov laug tho kev tiv thaiv cov khoom siv thiab cov khoom ua haujlwm raws li kev siv sijhawm ntev li 90 hnub ntawm hnub muab khoom xa tuaj ("Warranty Period"). Yog tias muaj ib qho teeb meem tshwm sim thiab muaj ntaub ntawv raug cai tau txais nyob hauv lub sijhawm lav warranty, Peb yuav, ntawm peb qhov kev xaiv, rau txhua daim npav liab uas tau xa rov qab thiab peb paub tseeb tias peb tsis yog ua raws li cov lus txib thiab / tus qauv (I) hloov lub rooj sib tw liab tsis tau them nqi los yog (II) qhov teeb meem sib npaug zos rau qhov kev yuav khoom ntawm tus liab qab.
