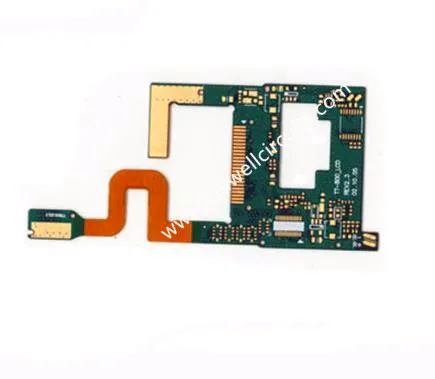

Kev Cai Tsim Tsheb Tsheb Rigid Flex PCB
1. Muab khoom piav qhia
Specification
Tsis yooj yim: cov qauv siv: ob npaug nyhuv nplaum + tsis tshua poob daj hau zaj duab xis + (kab tooj liab + kua nplaum + qhov dielectric polyimide pib khoom + kua nplaum kab + tooj liab) + tsis tshua xim daj hau.
Kev Tiv Thaiv: tsis pub khoov thiab twist.
Txiv neej: + / - 0.03 hli
Thickness: 0.15 hli
Reinforcing: zoo thiab negative 0.15mm steel daim ntawv qhov cuab lub zog.
Kev tsim cov txheej txheem: lub plhaub taub, lub plating, plating, npog npog, zaj duab xis - co lo hom, tsis ua haujlwm - kev tiv thaiv hom kab thaiv.
Kev kho qhov chaw: kub (kub) 1 ~ 2 microinch.
Yam tsawg kab dav / kab nrug: 0.06mm / 0.09mm.
Tsuas yog cov zuaj pob xwb tsis yooj yim, tab sis lawv kuj tso cai rau cov qhua tuaj yeem paub cov nyiaj tseem ceeb thiab. Cov laug cam yuav tsim los siv rau hauv cov ntaub ntawv siv qhov chaw thiab qhov hnyav vim tsis muaj kev txwv ntawm lub cev. Tsis zoo li feem ntau cov laug cam, flex yuav tiv taus cov kev kub hnyav kub uas yuav tshwm sim thaum lub sijhawm kub siab. Ib qho ntawm qhov kev ua tau zoo tshaj plaws ntawm lub rooj tsav tsheb tuav yog tias nws muaj peev xwm hloov tau ntau yam kev sib tw, ua rau muaj kev txuag nyiaj ntau rau tus qhua tuaj. Uniwell yuav muab koj txhim khu kev txhim khu kev lag luam nrog kev sib tw.
2. Qeej cev
ISO 9001: 2008 yog lub ntiaj teb thoob plaws kev lag luam rau Kev Tswj Cov Kev Tswj, Peb nruj raws nws qab kom zoo.
3.Packaging & shipping
ntim: Ntim hauv PE hnab nrog Dawb Lub Thawv.
Shipping: Shipping los ntawm FEDEX, CHINA NCEJ, DHL, TNT, UPS, thiab lwm yam kev nrhiav.
4.Luag kev paub --- dab tsi yog Flex PCB?
Flex cov ntawv cog lus sab nrauv muab luam tawm ntawm cov ntawv thaij (circuit boards) uas siv cov ntaub ntawv yooj yim. Lawv tuaj yeem ua tau ib zaug lossis ob tog, thiab mulitlayer mus txog 20 txheej. Txawm hais tias cov PCBs yooj yooj yim dua, qhov yooj yeem tso cai rau tus thawj coj ntawm lub rooj tsav xwm kom quav los yog ntswj lub hau yooj yooj yim kom tau raws li cov hom phiaj tsim. Qhov no muaj txiaj ntsig zoo dua tuaj yeem muab cov txiaj ntsig zoo rau cov qhua tuaj noj qab haus huv tshaj li ntawm cov qauv txheej txheem xws li:
● Tshem tawm ntawm kev sib txuas sib txuas uas yuav ua rau muaj teeb meem txog kev cia siab
● Txo cov nqi ntawm kev tsim vaj tse vim yog siv ib lub rooj tsav xwm tsim
● Txo lub hnab ntim qis dua
● Zoo sib xws thiab kev tswj hwm ntawm tus impedance tus
● Txo tus lej ntawm cov neeg tsim daim qauv CAD
