Nyuaj flex PCB rau SIM daim npav
1. Muab khoom piav qhia
Specification
Tsis yooj yim: cov qauv siv: ob npaug nyhuv nplaum + tsis tshua poob daj hau zaj duab xis + (kab tooj liab + kua nplaum + qhov dielectric polyimide pib khoom + kua nplaum kab + tooj liab) + tsis tshua xim daj hau.
Kev Tiv Thaiv: tsis pub khoov thiab twist.
Txiv neej: + / - 0.03 hli
Thickness: 0.15 hli
Reinforcing: zoo thiab negative 0.15mm steel daim ntawv qhov cuab lub zog.
Kev tsim cov txheej txheem: lub plhaub taub, lub plating, plating, npog npog, zaj duab xis - co lo hom, tsis ua haujlwm - kev tiv thaiv hom kab thaiv.
Kev kho qhov chaw: kub (kub) 1 ~ 2 microinch.
Yam tsawg kab dav / kab nrug: 0.06mm / 0.09mm.
Daim ntawv thov: SIM daim npav
Tsuas yog cov zuaj pob xwb tsis yooj yim, tab sis lawv kuj tso cai rau cov qhua tuaj yeem paub cov nyiaj tseem ceeb thiab. Cov laug cam yuav tsim los siv rau hauv cov ntaub ntawv siv qhov chaw thiab qhov hnyav vim tsis muaj kev txwv ntawm lub cev. Tsis zoo li feem ntau cov laug cam, flex yuav tiv taus cov kev kub hnyav kub uas yuav tshwm sim thaum lub sijhawm kub siab. Ib qho ntawm qhov kev ua tau zoo tshaj plaws ntawm lub rooj tsav tsheb tuav yog tias nws muaj peev xwm hloov tau ntau yam kev sib tw, ua rau muaj kev txuag nyiaj ntau rau tus qhua tuaj. Uniwell yuav muab koj txhim khu kev txhim khu kev lag luam nrog kev sib tw.
2. Ntawv thov
Hauv lub rooj sibtham uas tsis yoojyim, muaj zog thiab yooj yim substrates muab tso ua ke rau ib pob. Feem ntau, ntau lub voj voog uas muaj yoojyim sib txuas tau nrog rau lub rooj tsav xwm nrawm los tsim kom muaj kev sib txuas ua ke ntawm lub rooj sib tham yooj yim. Cov kev pabcuam hauv Circuit Court muab kev kawm nce siab thiab kev cia siab. Ib feem ntawm lawv txoj kev ua rau lawv ua rau lawv xaiv cov xov tooj ntawm tes, khoom siv hluav taws xob, thiab cov khoom siv hluav taws xob. Ib qho yooj yim-tuav tswj lub rooj tsav xwm yuav siv tau rau qhov chaw ntawm ntau lub laug cam nyob hauv daim ntawv thov.
Lub PCB yooj yim ntawm Uniwell Circuits tau siv cov kev sib txuas lus hauv kev sib txuas lus, network, digital cov khoom, kev tswj lag luam, kev kho mob, kev tsav tsheb thiab kev nyab xeeb, kev tiv thaiv & kev ua tub rog, thiab lwm yam.
3. Ua ntej rau kev sib tw thiab ceev nrawm
Cov khoom | Flex & Rigid board | Flex lub rooj tsavxwm | |||
Tus qauv qub | Multilayer qauv | Tshwj xeeb qauv | HDI qauv | Tus qauv qub | |
Leadtime (hnub) | 6 | 8 | 10 | 12 | 3-6 |

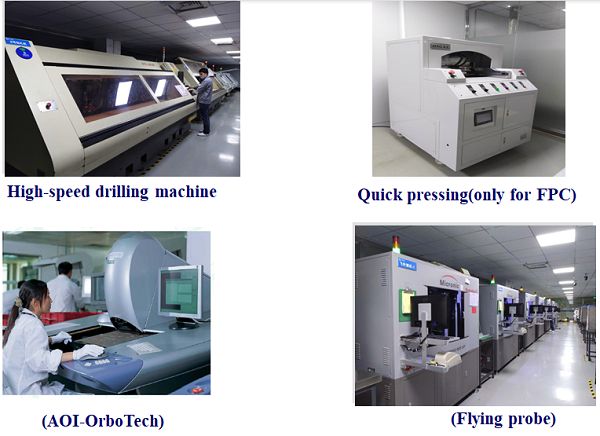

4. Tsim khoom thiab ntsuas khoom
peb siv cov ntaub ntawv qib siab thiab cov txheej txheem sib tw los xyuas kom meej tias peb cov khoom tsim nyog raws li cov kev cai ntawm peb cov neeg muaj kev lag luam.
