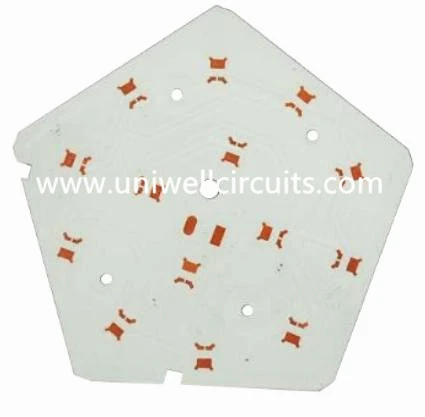

LED noob Aluminium PCB
1. Muab khoom piav qhia
LED noob Aluminium PCB
Kev Qhia:
Txheej suav: 1-2 txheej
Board thickness: 0.5-3.0mm
Tooj dub: 1-3oz
Thermal conductivity: 1.0-4.0W / mK
Kev kho qhov hauv npoo: HAL (Lead dawb), immersion kub / silver / Tin, OSP, Kub plating
Daim ntawv thov: LED teeb
Uniwell yog cov thawj coj ntawm kev tsim Aluminium MCPCB rau txhua hom High power LED teeb. Peb cov MC-PCBs tuaj yeem siv rau Kev Teeb Tseem Ceeb / Qhov Chaw Teeb / Kev Teeb / Lub Teeb Hnub So / Lub Tsev Teeb / Sawb / Cove Lights thiab lwm yam. Peb tsim & Siv MCPCBs raws li koj xav tau.
2.What peb qhov zoo tshaj?
1) Uniwell yog ib lub chaw ua haujlwm pcb uas muaj 10 xyoo kev ua haujlwm hauv daim teb no. peb yog lub koomhaum thiaj li muab tau koj tus nqi sib tw heev.
2) Peb koom nrog thoob ntiaj teb LED teeb pom kev zoo txhua txhua xyoo.
3) peb muaj SMD ntau lawm kab thiab tshuab tshuab rov qab. Yog li koj tuaj yeem tau txais kev pab ib zaug.
4) PCB tsim & layout ODM & OEM
5) Lub rooj loj loj pcb 1.5m tsis txiav tawm 2 qhov chaw. 1200x600mm loj boards
6) Peb muaj cov khoom ntiag tug coj zoo thiab muaj peev xwm yuav khoom rau cov neeg siv khoom.
7) Peb tus cwj mem kos cuav yog los ntawm Nyiv Pooj, cov ntaub ntawv yog los ntawm Taiwan.
8) Peb cov pcb tau txais daim ntawv pov thawj ISO thiab UL thiab tau ntsib ROHS.
3. Cov ntaub ntawv qhia
| Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
4. Cov ntawv pov thawj
Txhua lub Uniwell khoom tsim nyog tau txais kev tso cai. Cov ntawv pov thawj qhia ntxiv yuav tau txais kev pom zoo vim kev lag luam yog nyob hauv kev nce qib.
5.Packaging & xa
Txuj export cov pob, rau kev nthuav qhia, dej hiav txwv, huab cua freight, railway thauj, thiab lwm yam.
