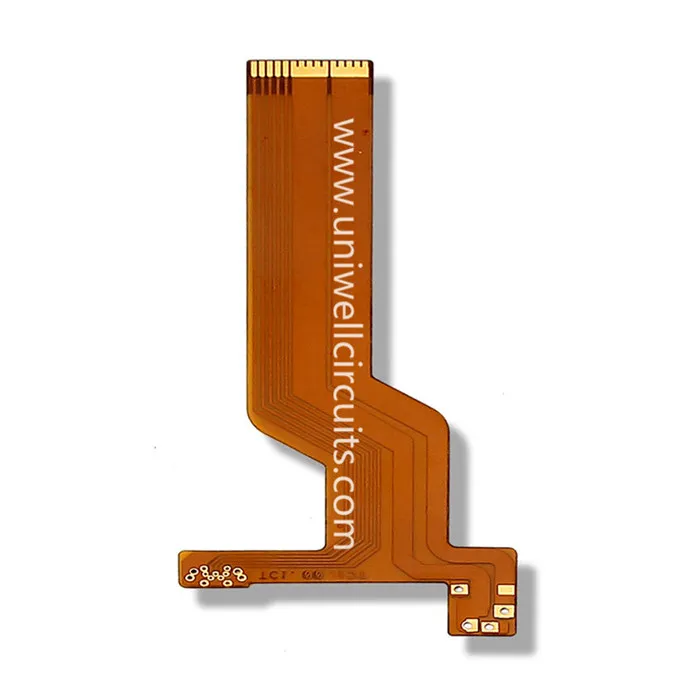

Ob tug phaw ob tus ntiv tes tuav tus PCB
1. Muab khoom piav qhia
Specification
Tsis yooj yim: cov qauv siv: ob npaug nyhuv nplaum + tsis tshua poob daj hau zaj duab xis + (kab tooj liab + kua nplaum + qhov dielectric polyimide pib khoom + kua nplaum kab + tooj liab) + tsis tshua xim daj hau.
Kev Tiv Thaiv: tsis pub khoov thiab twist.
Txiv neej: + / - 0.03 hli
Thickness: 0.15 hli
Reinforcing: zoo thiab negative 0.15mm steel daim ntawv qhov cuab lub zog.
Kev tsim cov txheej txheem: lub plhaub taub, lub plating, plating, npog npog, zaj duab xis - co lo hom, tsis ua haujlwm - kev tiv thaiv hom kab thaiv.
Kev kho qhov chaw: kub (kub) 1 ~ 2 microinch.
Yam tsawg kab dav / kab nrug: 0.06mm / 0.09mm.
Peb cov neeg ua haujlwm ntawm cov ntaub ntawv muaj kev paub zoo thiab cov kws kho kev ywj pheej muaj sijhawm nrog koj thiab qhia lawv cov kev paub txog kev thov cov khoom ywj pheej. Peb cov neeg ua haujlwm pabcuam muaj 10+ tus neeg uas muaj tshaj 7 xyoos ntawm kev ua haujlwm thiab PCB kev lag luam thiab yuav luag 10 xyoo. Uniwell Circuits tuam txhab uas muag etched ntawv ci heater fabricated siv Polixedide thiab Silicone Rubber ua cov ntaub ntawv pib. Peb tsim kho ntxiv nrog cov khoom sib txuas ntxiv, cov khoom tsis yog, thiab cov kev sib txuas ua ke kom paub tseeb tias lub system ua tau raws li tus neeg thov cov ntawv thov.
2. Qhia cov ntaub ntawv
Uniwell Circuits Co., Ltd yog ib qho zoo tshaj plaws kev lag luam thiab lwm tus neeg uas SMT PCBA, DIP PCBA, PCBA los ua ke, pcbs, fpc kabmob, Polimiide FPC, nplua-tsav board, Carbon roj PCB, High Performance Impairment PCB, Tsis tshua muaj Kuj PCB, High Resistance Carbon PCB, Alumina Ceramic PCB, Silicon Nitride Tej Hub PCB, Txhuas PCB hauv Shenzhen, Suav.
Raws li peb tus kheej-tshiab ntawm innovation thiab kev tshawb fawb, peb lub tuam txhab tsis tsuas yog siv cov kev siv technology thoob ntiaj teb, tiam sis kuj qhia txog cov cuab yeej zoo tshaj plaws thiab cov cav tov ntawm Nyiv thiab Asmeskas. Tam sim no peb tau tsim ib qho ntawm lub tuam txhab sab saum toj nrog advanced technology thiab siab zog nyob rau hauv lub tshav pob ntawm ceramic pcb thiab cov roj roj pcb.
3.FPC nta thiab daim ntawv thov
4. Npaj pab
Uniwell muaj ntau yam kev pab soj ntsuam. Nrog rau:
AOI
Kev Ntsuas Cov Kev Xeem
Hauv Kev Tshawb Xyuas Circuit Court
X-Qhov Kev Ntsuas Rau Kev Ntsuam Xyuas BGA
3D Paste Thickness Test
Ib lub rooj tsav xwm yog ua tib zoo ntsuam xyuas los ntawm peb pawg neeg saib xyuas kev ua haujlwm uas siv AOI thiab cov neeg txhawb zog siab.
Siv peb lub tshuab X-hluav taws xob, peb kuaj cov PCBs rau cov theem thiab tag nrho cov thaiv yog kuaj xyuas thiab kuaj.
Kev ntsuam xyuas ntawm Flash thiab kev cog lus hauv lub ntiaj teb tseem tuaj yeem ua rau pom zoo thaum tsim nyog.
5.FAQ
Q: Hom kev pab cuam dab tsi?
Yuav kom paub tseeb tias qhov zoo tshaj plaws, peb muab cov lus sib tw hauv qab no los lav txhua yam khoom:
1) AOI (Automated Optical Inspection)
2) Tsis pub kuaj qhov kev ntsuas luv luv
3) RoHS ntsuas
4) Dielectric tester
5) Kev tswj hwm kev puas ntsoog
6) Metallographic microscope
7) Ya sojntsuam / ncaws pob pwm
8) Kev kuaj pom
Lus Nug: Hom khoom zoo li Raw yuav siv?
Peb siv cov khoom nyoos sab saum toj raws li hauv qab no, kom tau cov khoom zoo los ntawm lub hauv paus.
Pawg Tswj: ITEQ, SY, KB, Isola, Rogers, Arlon, Nelco, Taconic, Hitachi, thiab lwm yam
Potion: Rohm & Haas, Atotech, Umicore
Luam Ntawv Hauv: Taiyo, Rongda
Qhuav Zaj duab xis: Asahi, Dupont, Etertec
Q: Peb puas muaj ib lub koom haum ncig xyuas?
Zoo siab txais tos tuaj xyuas peb lub Hoobkas hauv Guangdong! Thov qhia peb tsawg kawg ib lub lim tiam ua ntej, yog li ntawd peb tuaj yeem teem caij rau koj.
Q: Yuav ua li cas kom tau tus qauv pub dawb?
Thov xa peb cov ntaub ntawv Gerber thiab cov ntaub ntawv tsim nyog rau PCB tus qauv. Thaum koj ua tus txiav txim loj, tus nqi qiv yuav raug txiav tawm ntawm qhov nyiaj tshuav tag nrho.
Q: Peb puas tuaj yeem xaiv txoj kev xa khoom tuaj peb xaiv?
Paub tseeb. Peb muaj kev sib koom tes nrog DHL, FEDEX, TNT thiab UPS ntev. Yog tias qee qhov kev thov, thov qhia rau peb paub
