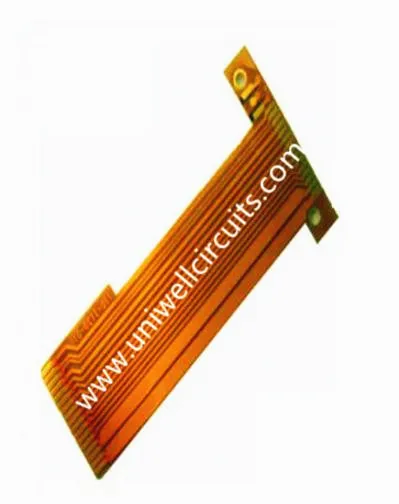

Flex Power Bank PCB
1. Muab khoom piav qhia
Tsis yooj yim: cov qauv siv: ob npaug nyhuv nplaum + tsis tshua poob daj hau zaj duab xis + (kab tooj liab + kua nplaum + qhov dielectric polyimide pib khoom + kua nplaum kab + tooj liab) + tsis tshua xim daj hau.
Kev Tiv Thaiv: tsis pub khoov thiab twist.
Txiv neej: + / - 0.03 hli
Thickness: 0.15 hli
Reinforcing: zoo thiab negative 0.15mm steel daim ntawv qhov cuab lub zog.
Kev tsim cov txheej txheem: lub plhaub taub, lub plating, plating, npog npog, zaj duab xis - co lo hom, tsis ua haujlwm - kev tiv thaiv hom kab thaiv.
Kev kho qhov chaw: kub (kub) 1 ~ 2 microinch.
Yam tsawg kab dav / kab nrug: 0.06mm / 0.09mm.
Daim ntawv thov: Lub Hwj Chim Loj
2. Qhia cov ntaub ntawv
Uniwell Circuits Co., Ltd, tau tsim hauv Shenzhen, Tuam Tshoj hauv lub Plaub Hlis, 2007. Uniwell Circuits yog ib lub tuam txhab muaj kev lag luam tshwj xeeb hauv kev tsim, kev tsim, kev tsim thiab muag khoom ntawm cov neeg muaj kev sib tw ob tog sib tshuam thiab cov PCBs (Printed Circuit Board) ntawm ceev tig, tsab ntawv, qhov nruab nrab thiab loj.
Raws li lub tuam txhab PCB lub tuam txhab, peb muaj ntau yam ntawm PCB kev tsim thiab sib dhos cov kev pab cuam ntawm ntau nqi qis dua tus neeg lag luam los ntawm lwm lub teb chaws. Peb tuaj yeem tau txais koj los ntawm kev ceev PCB tsab qauv, kev tsim cov PCB rau kev sib sau ua ke, txhua yam nrog 100% lav zoo. Peb tab tom nrhiav rau pem hauv ntej los tsim kom muaj kev sib raug zoo nyob ntev hauv Suav teb.
3. Muaj peev xwm tsim ua lag luam
Muaj peev xwm ua tau
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
Muaj peev xwm ua tau ntau ntau
Khoom siv | FR4 (ib txwm lossis siab TG lossis Halogen dawb) |
CEM-3 Al raws li | |
Max. Kev Txiav Txim Siab Hauv Tsev | 540 X 620 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.2 hli |
Ntsuas phaj | 12:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 hli & +/- 0.05mm & +/- 0.05mm |
Max. Txheej Suav | 12 |
Max. tooj liab tuab | 3 OZ puab txheej / 4OZ txheej txheej |
Target kev ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 4 / 4mil |
BGA suab | 10mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG (+ G / F), Txhab nyiaj dawb / Tin OSP, Lub npog ntsej muag, Cov tshuaj Carbon |
4.Lead lub sij hawm & kev kawm
hlau sij hawm:
Uniwell muaj peev xwm muab kev pab cuam sai, ib zaug & ob txheej hauv 24 teev, 4-6 txheej hauv 48 teev.
Txheej | Nreeb tig | Qauv kev txiav txim | Kev txiav txim siab |
ib leeg | 24 xuab moos | 3 hnub ua haujlwm | 7 hnub ua haujlwm |
ob | 24 xuab moos | 4 hnub ua haujlwm | 7 hnub ua haujlwm |
4-6 players | 48 teev | 5-6 hnub ua haujlwm | 10 hnub ua haujlwm |
8-12 players | 120hours | 7-9 hnub ua haujlwm | 15 hnub ua haujlwm |
FR-4 raws li, Tshem tawm cov sijhawm ua khoom plig | |||
Logistics
Peb tuaj yeem muab FOB Shenzhen, FOB HK lossis CIF ntawm cov neeg tuaj koom peb
