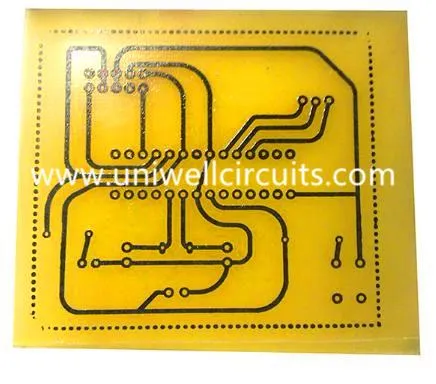

Flex Power Bank lub tsev txhab nyiaj txiag luam tawm
1. Muab khoom piav qhia
Tsis yooj yim: cov qauv siv: ob npaug nyhuv nplaum + tsis tshua poob daj hau zaj duab xis + (kab tooj liab + kua nplaum + qhov dielectric polyimide pib khoom + kua nplaum kab + tooj liab) + tsis tshua xim daj hau.
Kev Tiv Thaiv: tsis pub khoov thiab twist.
Txiv neej: + / - 0.03 hli
Thickness: 0.15 hli
Reinforcing: zoo thiab negative 0.15mm steel daim ntawv qhov cuab lub zog.
Kev tsim cov txheej txheem: lub plhaub taub, lub plating, plating, npog npog, zaj duab xis - co lo hom, tsis ua haujlwm - kev tiv thaiv hom kab thaiv.
Kev kho qhov chaw: kub (kub) 1 ~ 2 microinch.
Yam tsawg kab dav / kab nrug: 0.06mm / 0.09mm.
Daim ntawv thov: Lub Hwj Chim Loj
2. Qhia cov ntaub ntawv
Uniwell Circuits Co., Ltd, tau tsim tsa hauv Shenzhen, Suav teb hauv lub Plaub Hlis, 2007. Uniwell Circuits yog lub tuam txhab muaj kev lag luam siab tsim qauv tsim, kev tsim, kev siv thiab muag khoom ntawm cov neeg muaj kev sib tw ob tog sib txuas thiab cov PCBs (Printed Circuit Board Board) nyob rau hauv ceev tig, prototype, nruab nrab thiab loj tagnrho.
Raws li lub tuam txhab PCB lub tuam txhab, peb muaj ntau yam kev kho PCB thiab cov kev sib dhos ua ke ntawm cov nqi qis dua nrog kev txhim khu kev zoo dua cov khoom lag luam los ntawm lwm lub teb chaws. Peb tuaj yeem tau txais koj los ntawm kev ceev PCB tsab qauv, kev tsim cov PCB rau kev sib sau ua ke, txhua yam nrog 100% lav zoo. Peb tab tom nrhiav rau pem hauv ntej los tsim kom muaj kev sib raug zoo nyob ntev hauv Suav teb.
3. Tshuab khoom siv fais fab
Prototype tshuab
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
Khoom siv ntau lawm
Khoom siv | FR4 (ib txwm lossis siab TG lossis Halogen dawb) |
CEM-3 Al raws li | |
Max. Kev Txiav Txim Siab Hauv Tsev | 540 X 620 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.2 hli |
Ntsuas phaj | 12:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 hli & +/- 0.05mm & +/- 0.05mm |
Max. Txheej Suav | 12 |
Max. tooj liab tuab | 3 OZ puab txheej / 4OZ txheej txheej |
Target kev ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 4 / 4mil |
BGA suab | 10mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG (+ G / F), Txhab nyiaj dawb / Tin OSP, Lub npog ntsej muag, Cov tshuaj Carbon |
4.Quality kev txiav txim
Kev zoo yog cov ntshav ntawm ib lub tuam txhab hluav taws xob tsim lub lag luam kom zoo tswj tau raug them thaum txhua theem ntawm cov khoom siv hluav taws xob tsim. Tam li EMS cov neeg muab kev pabcuam hauv cov chaw haujlwm aerospace thiab cov kev khomob, kev tiv thaiv tsis muaj peevxwm yuav tsis nco qab. Rau kev tswj cov txheej txheem hauv kev ua haujlwm, ua kom tiav txhua theem yuav tsum mus kuaj xyuas cov nyom thiab muaj ib qho teeb meem raug cai, rov ua dua tshiab los yog hloov kho tam sim ntawd. Rau tom qab cov txheej txheem kev tswj kom zoo, nws nyob ntawm cov cuab yeej tshuaj, xws li kev soj ntsuam xoo hluav taws xob xwv kom cov teeb meem uas ntes tau tshwm tuaj ua ntej ntim thiab xa khoom. Peb tag nrho ISO9001: 2008, UL thiab RoHS muaj ntawv tso cai.
Cim npe nrov: flex fais fab nyiaj txiag luam tawm Circuit Board, Suav teb, lwm tus neeg muag, manufacturers, hoobkas, pheej yig, customized, luv nqi, zoo siab, quotation
