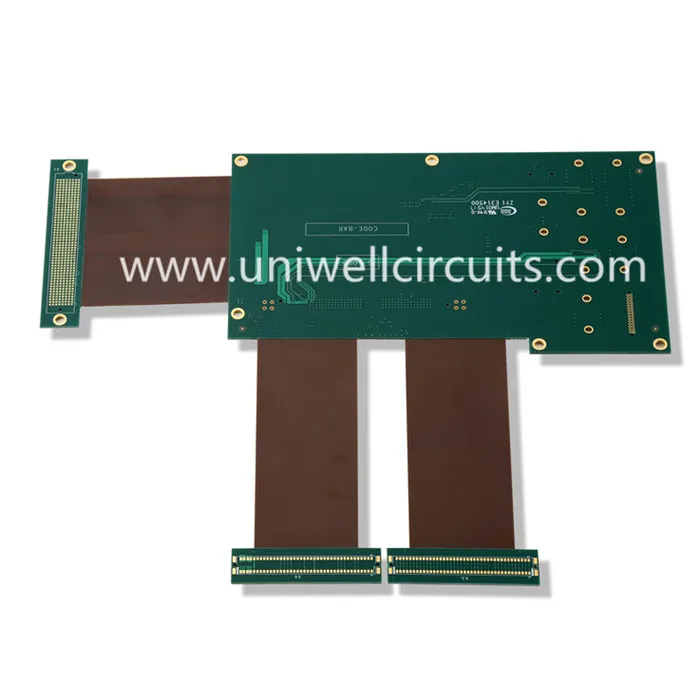

Kev kho mob instrument Flex txhav Circuit Court board
1. Muab khoom piav qhia
Tsis yooj yim: cov qauv siv: ob npaug nyhuv nplaum + tsis tshua poob daj hau zaj duab xis + (kab tooj liab + kua nplaum + qhov dielectric polyimide pib khoom + kua nplaum kab + tooj liab) + tsis tshua xim daj hau.
Kev Tiv Thaiv: tsis pub khoov thiab twist.
Txiv neej: + / - 0.03 hli
Thickness: 0.15 hli
Reinforcing: zoo thiab negative 0.15mm steel daim ntawv qhov cuab lub zog.
Kev tsim cov txheej txheem: lub plhaub taub, lub plating, plating, npog npog, zaj duab xis - co lo hom, tsis ua haujlwm - kev tiv thaiv hom kab thaiv.
Kev kho cov qhov hauv npoo: kub cev (1 ~ 2 U).
Yam tsawg kab dav / kab nrug: 0.06mm / 0.09mm.
Daim ntawv thov: Kho mob
Cov neeg siv PCB lwm tus neeg nyiam xws li Uniwell Circuits muab kev cob qhia rau cov khoom tsim thiab khoov rau koj cov khoom kom zoo. Peb xav nthuav tawm tus txheej txheem ceev ceev kom pab koj to taub qhov tuab thiab lwm yam uas koj xav tau rau koj tus qauv.
2.Cov khoom xyaw yooj yooj yim
Txheej: 20 (suav nrog 12 players)
Kab khiav widest / chaw (mil) hauv kev ua si: 3/3, 3.5 / 3.5
Nam piv: 20: 1 (PTH); 1: 1 (qhov muag tsis pom kev)
Min. drilling qhov (lub hli): 6 (mechanical); 4 (laser)
Nrug deb ntawm drilling rau neeg xyuas pib (mil): 6
Kev kam rau kev tswj hwm tus kheej (+/-): 10%
3.Quality system
● ISO 9001: 2008 Cov Ntawv Pov Thawj Pom Zoo
● UL E314500
● Ts16949: 2009
4.Qhov tshaj
Koj lub rooj sibtham hauv lub rooj sibtham tshwjxeeb yuav yog tsim kev tsim thiab kev tsim tawm. Txawm li cas los xij, kom koj pib xav txog dab tsi xav txog, peb xav nrog koj tsuas yog xaiv me me ntawm cov ntaub ntawv uas siv tau rau koj qhov project. Qhov no yooj yooj yim thiab muaj peev xwm ua rau peb yog ib tug ntawm cov coj ua PCB lwm tus neeg Tuam Tshoj tau muab rau.
Cov ntaub ntawv yog qhov tseem ceeb heev thaum nws tuaj mus rau lub rooj sibtham tso rau hauv Circuit Court lossis lub rooj sibfwv hauv cov ntawv luam tawm. PCBs nrog cov ntaub ntawv tsis muaj peev xwm ua rau lub sijhawm tseem ceeb, tawg, ntes hluav taws, ua rau muaj kev phom sij lossis cuam tshuam txog kev lag luam. Uniwell tsuas yog siv cov ntaub ntawv zoo tshaj plaws rau txhua lub PCB kom txaus kom paub tseeb tias koj tau txais cov txiaj ntsim zoo tshaj plaws nrog rau cov teeb liab kis, kev thermal conductivity thiab kev nyab xeeb.
Thawj cov ntaub ntawv
● Cov ntaub ntawv FR-4
● Cov ntaub ntawv FR-4 muaj taug txhuas tsis-muaj tshaj li
● Cov ntaub ntawv ceev ceev
● RF thiab microwave-tshaj cov khoom
● Cov hlau cuaj hlau (piv txwv li txhuas) cov ntaub ntawv nrog cov thermal conductivity
● Tshajliam
● Coverlays, covercoats thiab cov phuam yooj yim qhov ncauj qhov ntswg
● DuPont, Panasonic thiab ShengYi custom, khoom khoom muaj npe
5. Muab daim ntawv thov
Cov khoom ntawm Uniwell Circuits yog siv rau kev sib txuas lus, koom tes, digital khoom, tswj kev lag luam, kho mob, aeronautics & astronautics, tiv thaiv & tub rog thiab li ntawm.
