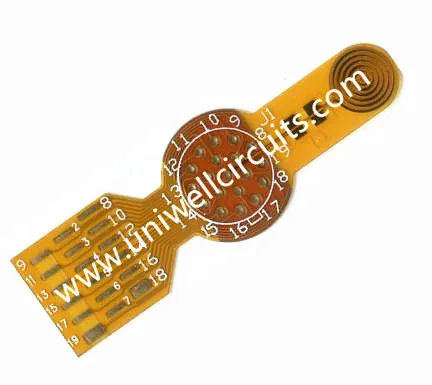

Sensor tswj Ib Sab Sided Flexible Circuits Board
1. Muab khoom piav qhia
Specification
Lub Npe: Qhov Kev Ntsuas Hluav Taws Xob Ib Sab Sided Cuam Tshuam Circuits
txheej: 1
Thickness: 0.12 hli
Khoom siv: ob-sided kua nplaum tsis-siv khoom electrolytic.
Copper thickness: 1/2 OZ
Kev kho qhov chaw: 1 microinch immersion.
Yam tsawg kab dav / kab nrug: 0.15mm / 0.075mm.
FR4 reinforcing thickness: 0.3mm.
Daim ntawv thov: Kev tswjxeeb
Uniwell Circuits tuaj yeem muab cov qauv thaij hnyav ua ke uas muaj peev xwm los ua ke nrog cov thawv yooj yim tooj liab uas tau tsim los ua cov dej ntws ntau zog. Koj lub voos tooj liab hnyav yuav tsum ua nrog cov feem pua ntawm cov hluav taws xob qis thiab daim ntaub ntawv.
2. Cov ntawv thov FPCB
Cov FPCBs siv cov khoom siv niaj hnub no thiab cov khoom siv hluav taws xob ntxiv nrog rau cov khoom ua tiav siab, cov khoom ua tiav. Muaj qee yam ntawm cov qauv tseem ceeb tshaj plaws ntawm cov khoom siv tau yooj yim yog nyob rau hauv cov khoom siv hluav taws xob niaj hnub, cov khoom siv, cov ntawv tsav nyuaj thiab cov tshuab luam ntawv.
3.Peb muaj peev xwm
Peb tuaj yeem tig koj qhov PCB kev txiav txim siab ua kom sai li 24 teev.
Cov khaub ncaws: 20 (xws li 12 players
Kab khiav widest / chaw (mil) hauv kev ua si: 3/3, 3.5 / 3.5
Nam piv: 20: 1 (PTH); 1: 1 (qhov muag tsis pom kev)
Min. drilling qhov (lub hli): 6 (mechanical); 4 (laser)
Nrug deb ntawm drilling rau neeg xyuas pib (mil): 6
Kev kam rau kev tswj hwm tus kheej (+/-): 10%
4.our zoo
Txawm hais tias koj tab tom nrhiav rau ob tog sib ceg lossis ib lub txheej txheem ntau PCBsfrom koj cov PCB chaw tsim hluav taws xob, peb tuaj yeem pab koj nrog kev taw qhia, kev tshaj lij thiab muaj peev xwm coj koj lub tswv yim rau kev muaj tiag. Cov txheej txheem tuav ntau lub hnab siv ntau zaus hauv kev siv hluav taws xob ntau rau kev ua haujlwm ceev dua, tiam sis thaum tsis tau yooj yim. Ib cov khib nyiab ib qho los yog ob npaug rau ntau lub PCBs tau tsim los tsim thiab muaj cov txheej layouts, nrog ntau dua ntawm cov kev sib txuas ua ke piv rau FR4 tus qauv tsim. Ib yam li cov txheej txheem FR4 cam, cov txheej FPCBs tau tsim los tsim kev siv qhov muag tsis pom thiab muab faus thiab raws li plated ntawm qhov (PTH).
Peb lub zog ntawm cov tuam txhab ua lag luam tuaj yeem thawb cov kev txwv ntawm PCB fabrication technology, nrog kev zoo 1 mil ib txoj kab, PCB los sis HDI PCB technology thiab ntau dua!
Txais tos kom tuaj saib peb! Peb tab tom nrhiav rau koj tuaj!
