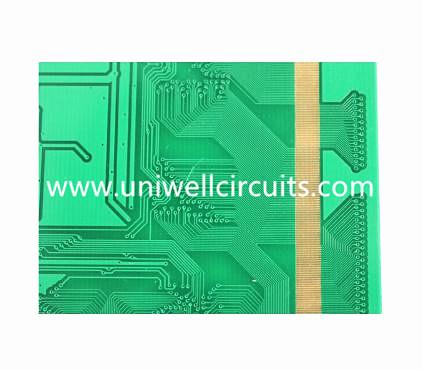

Immersion Tin high zaus Circuit Board
1. Muab khoom piav qhia
Txheej: 2 txheej
Pawg: Ro4450B.
Thickness: 0.5 hli
Kev kho qhov hauv npoo: kev sib tw kub / HASL / Lead dawb HASL / Cov nyiaj them poob haujlwm / Tin OSP, thiab lwm yam.
Lub aperture qis tshaj: 0.45mm.
Daim ntawv thov: kev sib txuas lus.
Nta: cov Board Board
Lub caij nyoog loj ntawm cov ntaub ntawv khiav tsheb tau los ntawm kev tsav tsheb rau kev sib tw ceev ceev. Hauv kev lag luam hauv electronics, PCBs tau dhau los ua kev kub ceev ceev, nqa billions ntawm pulses ib pliag. Qhov no muaj peev xwm xav tau kev paub tshwj xeeb-ua li cas hauv PCB tsim thiab kev tsim khoom. Kev txhim kho siab tshaj plaws hauv qhov tsim thiab ntau ntau yog qhov tseem ceeb uas yuav tsum muaj los tswj cov kev muaj peev xwm.
Uniwell circuits txhawb nqa koj nrog tsim PCBs ntau zaus (HF-PCBs). Peb pab koj nrhiav kev tsim substrates, txhawm rau txheeb cov kab ntsuas qhov ntev thiab xam cov teeb meem impedance rau koj. Uniwell muaj ntau hom HF-PCB luj cov ntaub ntawv rau kev tso nyiaj thiab tuaj yeem xa koj cov PCBs ntau zaus hauv lub sijhawm luv luv.
2. Kev nthuav tawm video
3. PST peev xim
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
4.Lead lub sij hawm rau cov khoom txiav txim
Peb muab ceev tig kev pab cuam, 1-2 txheej hauv 24 teev, 4-6 txheej hauv 48 xuab moos.
Txheej | Nreeb tig | Qauv kev txiav txim | Kev txiav txim siab |
ib leeg | 24 xuab moos | 3 hnub ua haujlwm | 7 hnub ua haujlwm |
ob | 24 xuab moos | 4 hnub ua haujlwm | 7 hnub ua haujlwm |
4-6 players | 48 teev | 5-6 hnub ua haujlwm | 10 hnub ua haujlwm |
8-12 players | 120hours | 7-9 hnub ua haujlwm | 15 hnub ua haujlwm |
FR-4 raws li, Tshem tawm cov sijhawm ua khoom plig | |||
5.FAQ
Lus Nug: Yuav ua li cas xa cov PCBs?
Rau cov khoom me me, peb yuav xa cov npoo rau koj los ntawm DHL, TNT, UPS, FedEx, Rau cov khoom hnyav, peb yuav xa koj lub PC boards los ntawm lub nkoj lossis cua los cawm cov nqi thauj khoom. peb kuj tiv tauj lawv rau kev soj ntsuam nrog koj cov khoom xa tuaj.
Q : Dab tsi yuav tsum muaj rau kev hais lus?
PCB Circuit Board Boards: Quantity, Gerber file and Technic requirements (khoom siv, ntu tag kev kho, tooj liab tuab, board thickness, ...)
PCBA: PCB cov ntaub ntawv, BOM, (Cov ntaub ntawv xeem ...)
Q: Koj tuaj yeem txais cov ntaub ntawv tawm tswv yim twg?
Cov ntaub ntawv Gerber: CAM350 RS274X
PCB cov ntaub ntawv: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF, lo lus, txt)
Q : Kuv cov ntaub ntawv puas ruaj ntseg?
Koj cov ntaub ntawv muaj nyob rau hauv kev nyab xeeb thiab kev ruaj ntseg. Peb tiv thaiv cov cuab yeej kev txawj ntse rau peb cov neeg muas zaub nyob rau hauv tag nrho cov txheej txheem. Tag nrho cov ntaub ntawv los ntawm cov neeg muas zaub yeej tsis koom nrog cov neeg thib peb.
