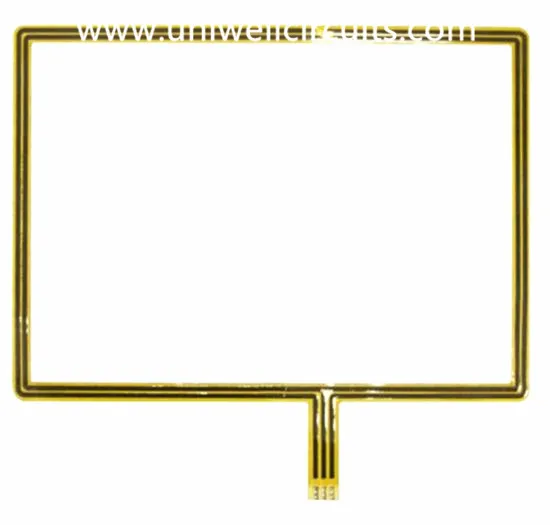

Flexible Circuit Board rau wireless hais lus
1. Muab khoom piav qhia
Specification
Txheej: 2
Thickness: 0.20 hli
Khoom siv: ob npaug-sided adhesive dov khoom.
Copper thickness: 1 OZ
Kev kho cov qhov hauv npoo: kub kub.
Yam tsawg kab dav / kab nrug: 0.1 hli / 0.2 hli.
Daim ntawv thov: wireless hais lus
Cov tswvcuab yoojyim kev sibtham txo cov nqi thiab kev ua haujlwm ntawm lub rooj sibtham vim lawv tuaj yeem tshem tawm cov khoom sib txuas thiab cov laug caws qis thiab kev kho rau cov khoom siv ywjpheej uas yooj yoojyim tseem yoojyim thiab raug nqi.
Kev ywj pheej circuits yuav yooj yim rau cov qauv tsim txhua yam, nws muaj kev pheej hmoo ntawm kev thaiv tsis zoo. Flex yog qhov ntau dav hauv qhov nyuaj thiab yog li siv tau rau txhua yam khoom.
Uniwell yog ib qho khoom pov thawj zoo tshaj plaws uas tau luam tawm Circuit Board board chaw. Ua ib lub tuam txhab, peb muaj kev txaus siab ntawm peb txoj hauj lwm thiab caw koj tuaj xyuas peb kom rov xyuas koj cov kev cai tshwj xeeb.
2. Qhia cov ntaub ntawv
Uniwell circuits FPC tshwj xeeb hauv prototypes, me me ntim thiab nruab nrab volume txiav txim, flex & nruj lag luam loj hlob sai heev txij li nws tau tsim. Peb pab peb cov qhua tuaj noj mov nrog kev muaj zog R & D muaj peev xwm, txhua yam khoom ntawm cov khoom, muaj peev xwm ruaj khov thiab ceev muaj peev xwm. Uniwell Circuits tau ua ib feem ntawm kev sib tw ua lag luam nyob rau hauv kev sib txig sib luag hauv cov chav kawm ntawv yooj yooj yim thiab tsis ncaj nceeg vaj.
3. Sau keeb kwm ntawm Uniwell
4. Peb muaj peev xwm FPC ntau lawm
Txheej: 20 (suav nrog 12 players)
Kab khiav widest / chaw (mil) hauv kev ua si: 3/3, 3.5 / 3.5
Nam piv: 20: 1 (PTH); 1: 1 (qhov muag tsis pom kev)
Min. drilling qhov (lub hli): 6 (mechanical); 4 (laser)
Nrug deb ntawm drilling rau neeg xyuas pib (mil): 6
Kev kam rau kev tswj hwm tus kheej (+/-): 10%
5.Lead lub sij hawm rau cov lus txiav txim
Cov khoom | Flex & Rigid board | Flex lub rooj tsavxwm | |||
Tus qauv qub | Multilayer qauv | Tshwj xeeb qauv | HDI qauv | Tus qauv qub | |
Leadtime (hnub) | 6 | 8 | 10 | 12 | 3-6 |
6.FAQ
Q: Kuv puas yuav tsum tau siv ib qho khoom siv FR4 nrog lub siab Tg (Tg = iav hloov mus hloov) rau cov kab mob tsis muaj lead?
Tsis yog, tsis tas. Muaj ntau ntau yam yuav raug coj mus rau hauv tus as khauj, xws li tshooj ntau npaum li cas, lub thickness ntawm PCB thiab tseem muaj kev nkag siab zoo ntawm txoj kev sib dhos (cov xov tooj ntawm cov voj voog, lub sij hawm saum 260 degrees, thiab lwm yam). Tej kev tshawb fawb tau pom tias cov khoom siv nrog tus "standard" Tg tus nqi tseem ua tau zoo dua li cov khoom siv nrog tus nqi siab dua Tg. Nco ntsoov tias txawm tias "leaded" txhais tau tias muaj tus nqi Tg ntau tshaj.
Dab tsi yog qhov tseem ceeb tshaj plaws yog qhov cov khoom siv thaum kub tshaj tus nqi zog ntawm Tg (tom qab Tg) thiaj paub txog qhov kub thiab txias txias ntawm lub Rooj Tswjhwm Saib cov no yuav ua rau koj saib xyuas qhov kev ntsuam xyuas tus yam ntxwv tsim nyog.
Lus Nug: Cov yam ntxwv ntawm cov khoom los saib thaum xaiv cov khoom dab tsi?
Cov sawv daws tseem ceeb tshaj plaws uas peb xav txog yog: CTE
Ib qho kev ntsuas ntawm ntau npaum li cas cov khoom nthuav thaum kub. Tseem ceeb nyob rau hauv Z-axis - feem ntau saum Tg thiab nthuav yog qhov ntau dua. Yog tias CTE tsis txaus ua rau kev poob siab tuaj yeem tuaj yeem tshwm sim thaum sib sau ua ke raws li cov khoom nthuav dav sai tshaj Tg.
Sab laug duab: Chaav tawg / tawg qhov Txoj cai duab: Tsav av
Cov ntaub ntawv tuaj yeem muaj Tg tib yam tsis tau CTE tus kheej - qis dua CTE zoo dua. Qee yam ntaub ntawv muaj peev xwm siab dua Tg qhov tseem ceeb, tseem tau muaj CTE ncej dua (zuj zus).
TG / GLASS TRANSITION TXIAB
Tg tus nqi yog qhov kub ntawm qhov khoom hloov ntawm cov khoom zoo li lub iav uas zoo li siv rau cov ntaub ntawv zoo li ywj thiab cov khoom zoo li yas. Tseem ceeb raws li saum Tg, cov ntaub ntawv cov khoom yuav hloov.
Td / DECOMPOSITION TEMPERATURE
Qhov no yog ib qho kev ntsuas ntawm qhov degredation ntawm cov khoom. Kev ntsuam xyuas tus qauv ntsuas thaum 5% ntawm cov khoom poob ntawm qhov hnyav - qhov taw tes raws li qhov kev ntseeg muaj kev ruaj ntseg thiab kev thev taus yuav tshwm sim.
Kev ntseeg siab dua PCB yuav xav tau Td ≥ 340 ℃
T260 / T288 / LUB SIJ HAWM LOS YOG DELAMINATION
Qhov no yog txoj kev txiav txim siab txog lub sijhawm thaum lub teeb meem ntawm PCB yog hloov tsis tau ntawm qhov kev ntsuas cua txias (260 los sis 288 nyob rau hauv rooj plaub no) - piv txwv li thaum cov khoom nthuav txog xws li ib qho degree uas nws delaminates.
Lus Nug: Kuv puas yuav tsum tau siv ib qho khoom siv FR4 nrog lub siab tshaj plaws Td (Td = decomposition temperature) rau cov kab mob tsis muaj lead-free?
Ib qho txiaj ntsim Td ntau dua yog qhov tshwj xeeb, tshwj xeeb tshaj yog yog hais tias pawg thawj coj saib kev lag luam muaj kev sib txuas thiab raug rau ntau cov khoom txeem, tab sis qhov no tuaj yeem ua rau cov nqi ntau dua. Kev paub txog koj lub rooj sib txoos ua ke tuaj yeem pab xaiv txoj kev xaiv.
