Kev kub ntawm PCB
1. Muab khoom piav qhia
Specification

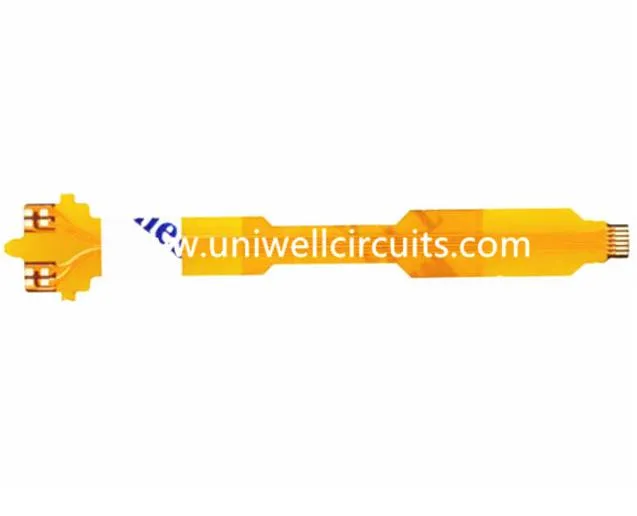

Lub Npe: Kev kub ntawm PCB
Txheej Txheem: 1
Thickness: 0.13 hli
Khoom siv: 1OZ muaj adhesive dov.
Tooj dub: 1 oz
Kev kho qhov hauv npoo: Kev ntsuas kub
Yam tsawg kab dav / kab nrug: 0.2 hli / 0.1 hli.
PI reinforcement thickness: 0.1mm.
Lwm tus neeg: nplaum ntawv, PI qhov kev txhawb zog.
Daim ntawv thov: xov tooj ntawm tes
2. Qhia cov ntaub ntawv
Qhov no yog ib qho video txog Uniwell.
3. Lub sij hawm muab khoom txhuas
Kev xa tuaj raws sij hawm yog peb qhov kev ua yeeb yam, peb muaj peev xwm los muab kev pab cuam sai.
Cov khoom | Flex & Rigid board | Flex lub rooj tsavxwm | |||
Tus qauv qub | Multilayer qauv | Tshwj xeeb qauv | HDI qauv | Tus qauv qub | |
Leadtime (hnub) | 6 | 8 | 10 | 12 | 3-6 |
4.Qhov zoo
1) Yooj yim peev xim: ib zaug & ob txheej, tshaj plaws hauv 3 hnub; ob txheej phaj & txhav, ceev tshaj plaws hauv 4 hnub
2) Prototypes, muaj peev xwm tsawg: 100 hom hauv ib lub hlis
3) Cov cuab yeej ua tau zoo tshaj plaws thiab khoom siv: Multilayer flex & rigid (20L-10F), HDI flex & nruj (1 + N + 1)
5. Teeb pom kev zoo
Txheej: 20 (suav nrog 12 players)
Kab khiav widest / chaw (mil) hauv kev ua si: 3/3, 3.5 / 3.5
Nam piv: 20: 1 (PTH); 1: 1 (qhov muag tsis pom kev)
Min. drilling qhov (lub hli): 6 (mechanical); 4 (laser)
Nrug deb ntawm drilling rau neeg xyuas pib (mil): 6
Kev kam rau kev tswj hwm tus kheej (+/-): 10%
Yog muaj lus nug, thov tsis txhob yig tiv tauj peb, peb zoo siab los pab koj.
