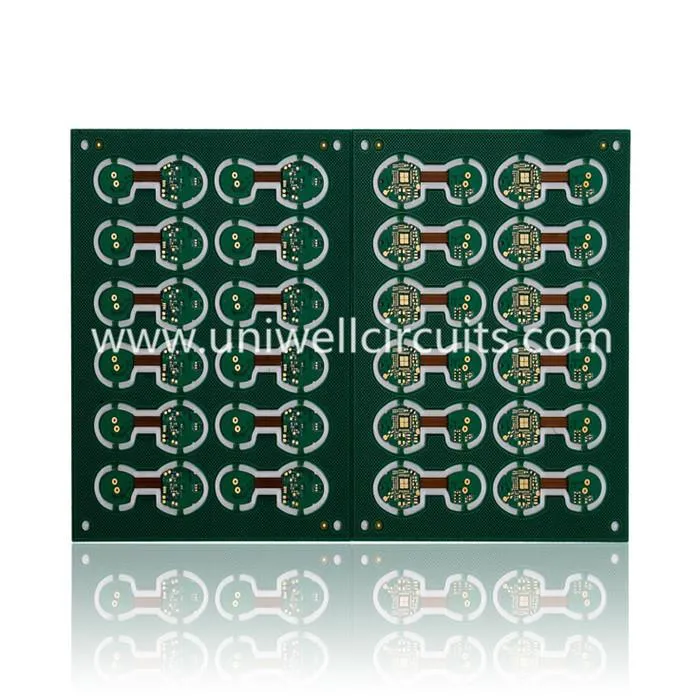

LCD Tso Sis Zuj Zus PCB
1. Muab khoom piav qhia
Kev Qhia:
4 phaj yig hloov khoom siv
Board thickness: 0.6mm
Kab dav / qhov chaw: 6 / 4mil
BGA: 7.8mil
Lub pas dej: 4mil
Hloov lub ntsaws
2.Company keeb kwm
Uniwell Circuits Co., Ltd, tau tsim hauv Shenzhen, Tuam Tshoj hauv lub Plaub Hlis, 2007. Los ntawm kev loj hlob thiab cog kev tsim lub tuam txhab tau tuaj txog ntawm nws tam sim no qhov loj thiab qhov chaw. Them nyiaj rau cov neeg xav tau kev pab txhawb nqa peb cov tshuab thiab txuas mus ntxiv roj kev loj hlob.
3.Circuit txheej tsim cov txheej txheem
Khoom siv | FR4, CEM-3, Tub Ntxhais Hlau, |
Halogen Dawb, Rogers, PTFE | |
Max. Kev Txiav Txim Siab Hauv Tsev | 1500 X 610 hli |
Min. Board Thickness | 0.20 hli |
Max. Board Thickness | 8.0 hli |
Tshaj / Qhov muag pom ntawm (Tsis yog-tus ntoo khaub lig) | 0.1 hli |
Ntsuas phaj | 16:01 |
Min. Drilling loj (Mechanical) | 0.20 hli |
Txoj kev siab ntev PTH / nias ncov lub qhov / NPTH | +/- 0.0762 mm / +/- 0.05mm / +/- 0.05mm |
Max. Txheej Suav | 40 |
Max. tooj (puab / txheej) | 6OZ / 10 OZ |
Lam ua siab ntev | +/- 2mil |
Txheej rau txheej sau npe | +/- 3mil |
Min. kab dav / qhov chaw | 2.5 / 2.5mil |
BGA suab | 8mil |
Kev kho qhov chaw deg | HASL, Ua dawb HASL, |
ENIG, Txhim nyiaj silver / Tin, OSP |
4.Leadtime rau tsab thiab ceev tig
Peb muaj peev xwm los muab kev pab cuam sai, ib zaug & ob txheej, tshaj plaws hauv 3 hnub; ob txheej txheej ceev, ceev tshaj plaws hauv 4 hnub
Cov khoom | Flex & Rigid board | Flex lub rooj tsavxwm | |||
Tus qauv qub | Multilayer qauv | Tshwj xeeb qauv | HDI qauv | Tus qauv qub | |
Leadtime (hnub) | 6 | 8 | 10 | 12 | 3-6 |
5.Our tus nqi
Tshawb nrhiav & kev tsim kho tshiab, kev txhim kho kom zoo, kev cog lus zoo
Ua ib lub hom phiaj zoo tshaj plaws nyob hauv ob lub teb chaws sab nraud thiab sab nraud PCB teb
Yog peb ib txwm ua.
